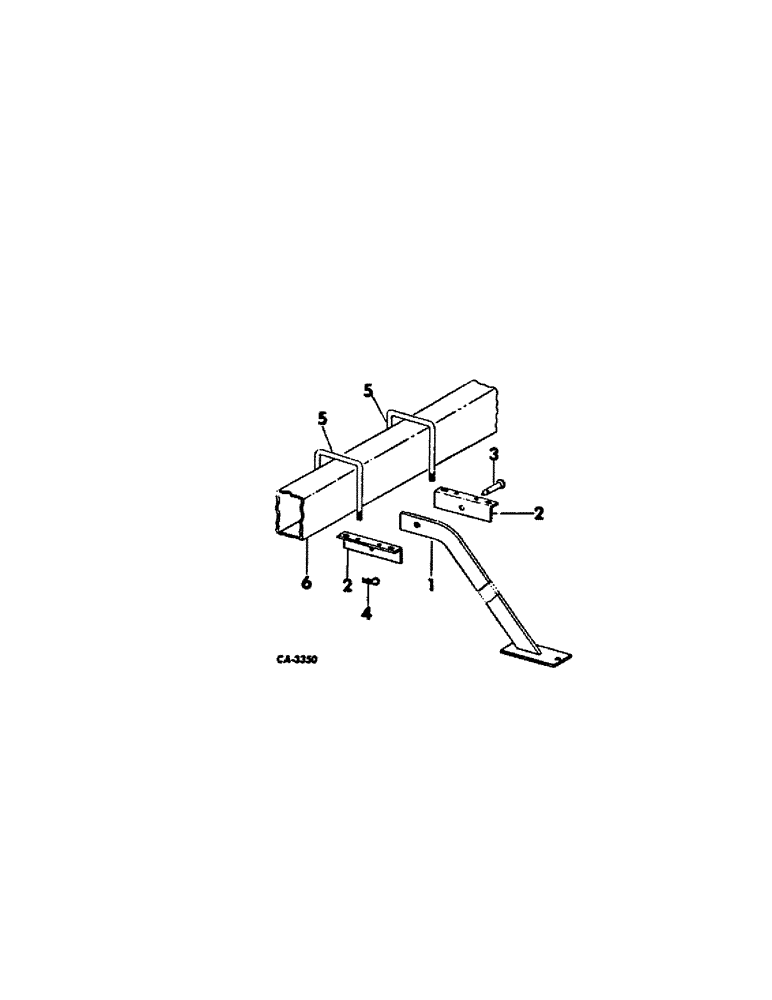

Запчасти Case IH 500 (B-62) - SUPPORT STAND, 4, 6 AND 8 ROW

1

544011R11

STAND

ASSY, 5 x 7 bar, 1 for 4 row and 6 row narrow, 2 for 6 row wide and 8 row

1шт.

2

58300C2

ANGLE, support, 2 per stand

1шт.

3

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 C-Z st-hd, 1 per stand

1шт.

4

520175R1

CLIP

PIN, 3/16 quick attachable cot., 1 per stand

1шт.

5

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, 5/8-11, 2 per stand

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 16 ga C-Z

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

6

TOOL BAR, refer to main frame tool bar unit

1шт.
