Запчасти Case IH 500 (B-05) - MAIN FRAME TOOL BAR

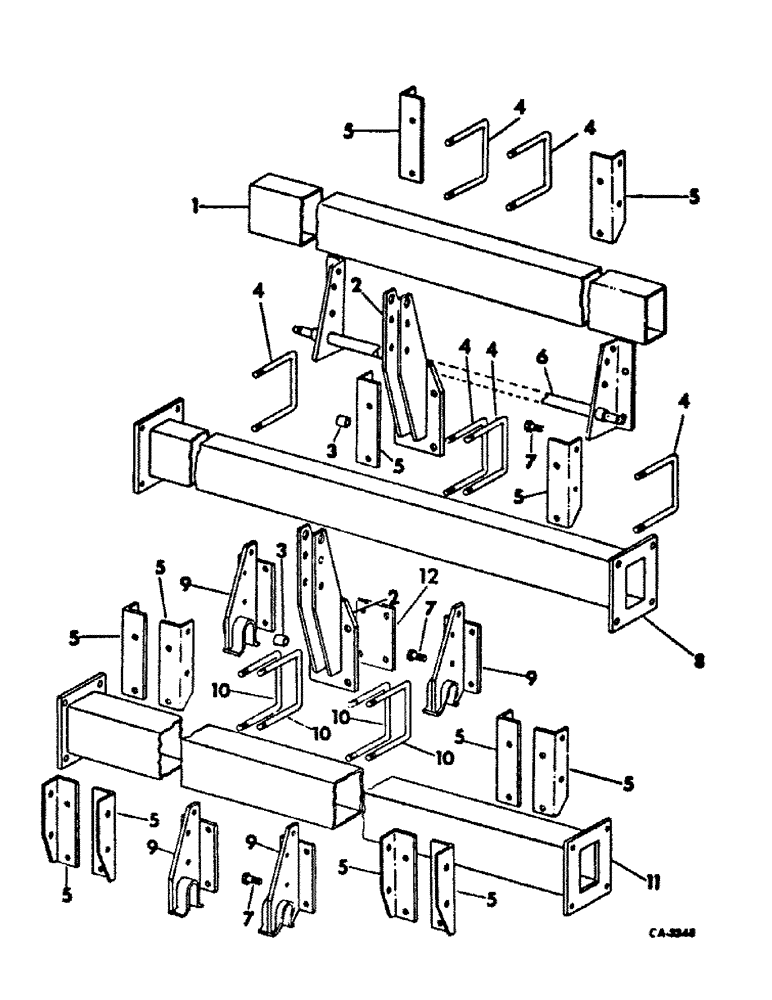

Схема запчастей Case IH 500 - (B-05) - MAIN FRAME TOOL BAR
5
7
5
2
5
5
4
2
4
5
5
9
12
10
4
9
9
3
1
10
4
4
6
11
10
7
3
4
5
5
5
8
5
9
5
10
5
7

Артикул

Название

Примечание

Количество

1

58273C1

TUBE, 180 in. main frame tool bar, 4 row, 6 row narrow and 8 row 22 in. spacing 180" Length

1шт.

2

58230C1

MAST ASSY, hitch, 4, 6 and 8 row

1шт.

3

462425R1

SPACER

mast, 4, 6 and 8 row

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, mast & lower arms, 2 for 4 row, 6 row narrow and 8 row 22 in. spacing, 4 row 6 row wide and 8 row 28 to 40 in. spacing

1шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 8 znd hex., 2 per u-bolt

1шт.

5

58248C1

ANGLE, hitch LH, 1 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

5

58249C1

ANGLE, hitch RH, 1 for 4, 6 and 8 row, 4 for 12 and 16 row

1шт.

21208R1

SCREW, 7/8-9 x 7-1/4 C-Z hex-hd cap, 4 for 4 and 6 row narrow

1шт.

22201R1

SCREW, 7/8-9 x 7-1/2 znd hex-hd cap, 4 for 6 row wide and 8 row

1шт.

20924R1

BOLT,Hex, 7/8" - 9 x 9", Gr 5

SCREW, 7/8-9 x 9 znd hex-hd cap, 8 for 12 and 16 row

1шт.

425-1014

NUT,7/8"-9, G5

NUT, , 1 per screw 7/8"-9, G5

1шт.

NLS

NO LONGER SERVICED

1 per screw 7/8"

1шт.

6

58232C1

BRACKET ASSY, spreader, 4 row, 6 row narrow and 8 row 22 in. spacing

1шт.

7

58657C1

SCREW

BOLT, special

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

8

58306C1

TUBE ASSY, 290 in. main frame, 8 row wide 290" Length

1шт.

8

58311C1

TUBE ASSY, 220 in. main frame, 6 row wide and 8 row 28 to 30 in. spacing 220" Length

1шт.

9

58228C1

BRACKET ASSY, hitch LH, 6 row wide, 8, 12 and 16 row

1шт.

9

58229C1

BRACKET ASSY, hitch RH, 6 row wide, 8, 12 and 16 row

1шт.

10

493841R1

U-BOLT

12 and 16 row

4шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 8 znd hex.

8шт.

11

58304C1

TUBE ASSY, 274 in. main frame, 12 row 24 in. spacing 274" Length

1шт.

11

58290C1

TUBE ASSY, 340 in. main frame, 12 row 30 in. spacing and 16 row 340" Length

1шт.

12

100254C1

PLATE, mast, for 6 row wide double row when ordered less assist wheels

1шт.

22201R1

SCREW, 7/8-9 x 7-1/2 znd hex-hd cap

4шт.

131047

WASHER,7/8"

7/8"

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

Выбрано товаров: 32
