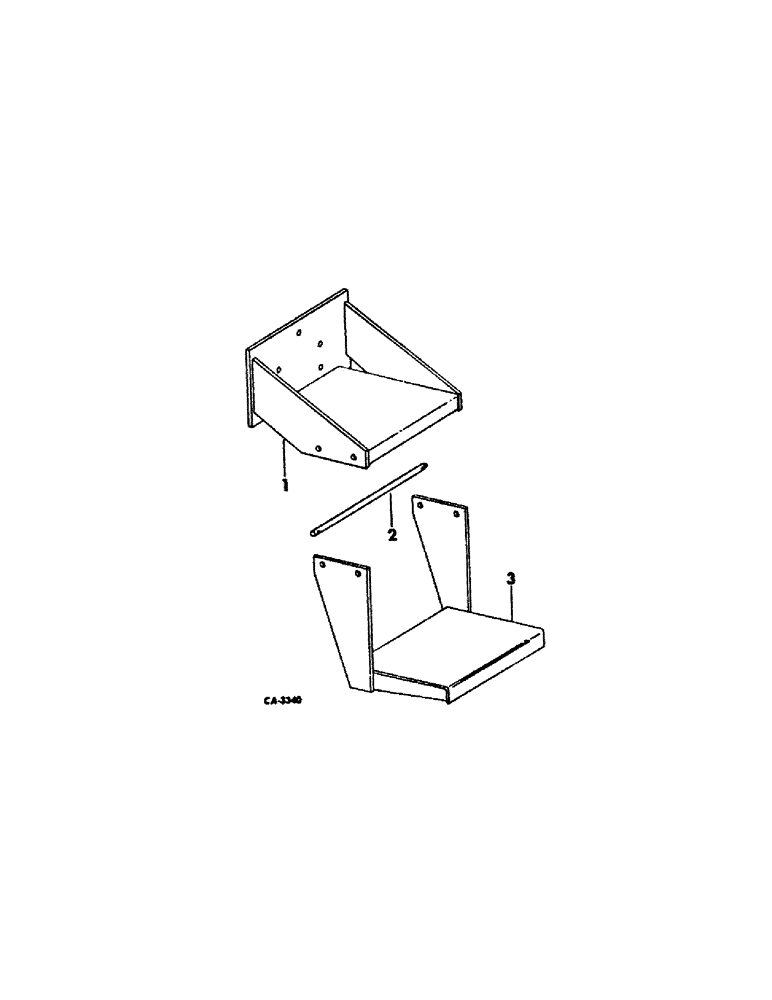

Запчасти Case IH 500 (B-60) - STEP ATTACHMENT, 4, 6 AND 8 ROW

1

58200C1

STEP ASSY, upper

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 znd hex-hd mach

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

3шт.

2

58149C1

PIN, step pivot

1шт.

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

3

58193C2

STEP ASSY, lower

1шт.

22911R1

PIN, 1/2 x 1.188 long znd std-hd

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.
