Запчасти Case IH 500 (B-56) - HYDRAULIC MARKER ATTACHMENT, FOR 4 ROW, 6 ROW NARROW AND 8 ROW 22 IN. SPACING

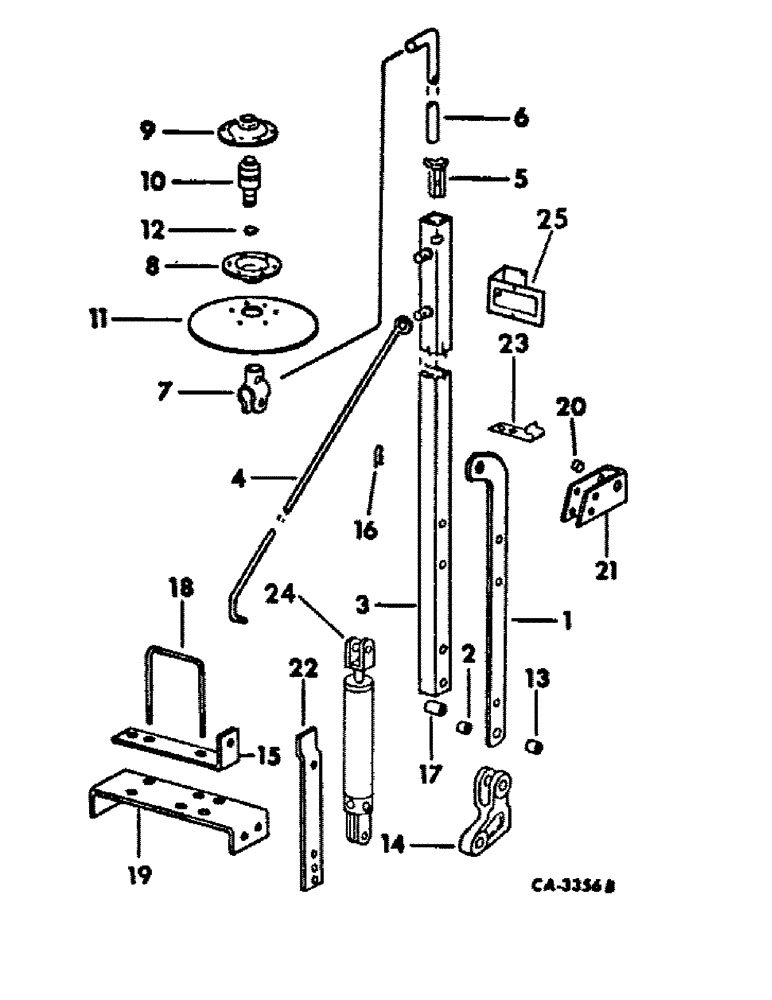

Схема запчастей Case IH 500 - (B-56) - HYDRAULIC MARKER ATTACHMENT, FOR 4 ROW, 6 ROW NARROW AND 8 ROW 22 IN. SPACING
15
22
20
24
21
4
25
6
3
1
7
9
23
18
8
2
11
17
13
5
10
16
19
14
12

Артикул

Название

Примечание

Количество

1

58251C1

ARM

marker lift

2шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

2шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

2

546504R1

BUSHING

marker pivot

2шт.

3

58287C1

TUBE ASSY, marker 43.1" Length

2шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

4

58289C1

ROD, truss

2шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

4шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

4шт.

5

489764R1

BLOCK

2шт.

20080R1

SET SCREW

1/2 x 1-1/4 C-Z sq-hd cup-pt set

2шт.

6

548747R1

ROD

marker disk clamp

2шт.

7

478032R1

CLAMP

axle

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 C-Z sq-hd cup-pt set

2шт.

8

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

9

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

10

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING, ball

2шт.

11

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

12

480679R1

WASHER

dirt seal felt

2шт.

13

548748R1

BUSHING

pivot

2шт.

14

546511R1

LEVER

MARKER, pivot

2шт.

15

58253C1

STRAP, marker frame

2шт.

16

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

2шт.

17

495137R1

SPACER

BUSHING

2шт.

18

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, 5/8-11

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

.656 x 1.312 x 11 ga

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

19

58282C1

PLATE, marker support

2шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

SCREW, 3/4-10 x 9 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

20

58366C1

BUSHING

4шт.

21

58284C1

STOP, marker

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1.062 x 16 ga znd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

SCREW, 1/2 x 3-1/4 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21958R1

HEADED PIN,1/2" x 2 3/4"

PIN, 1/2 x 2-1/4 znd std-hd

2шт.

22

58285C2

STRAP, marker tie

2шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

23

493962R2

CLAMP, hyd hose

4шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

24

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

25

113118C91

BRACKET w/PRODUCT GRAPHIC, 113116C1, marker warning

2шт.

180044

SPRING

SCREW, 1/4-20 x 2 znd hex-hd cap

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

Выбрано товаров: 63
