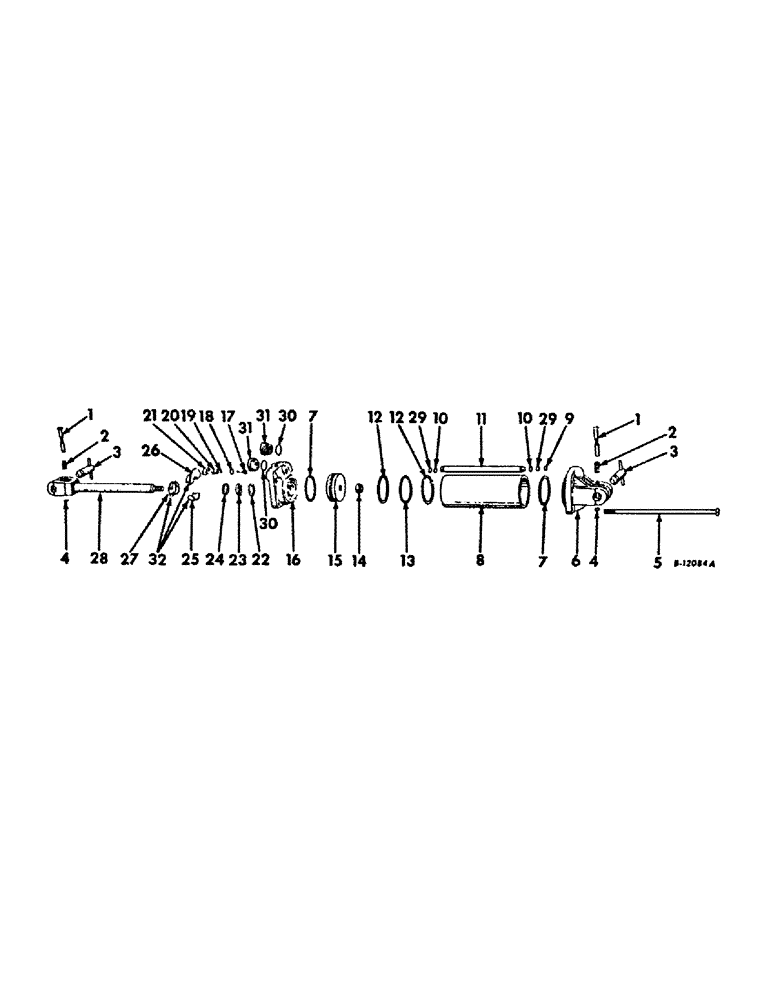

Запчасти Case IH 500 (B-53) - HYDRAULIC CYLINDER, 3-1/2 X 8 IN. DOUBLE ACTING

371292R94

CYLINDER

ASSY, 3-1/2 x 8 in. hydraulic, order cylinder assy, 371292R95

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cylinder pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

cylinder tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

6

371298R3

HEAD

cylinder, bottom end

1шт.

7

O-RING, 3-1/4 x 3-1/2 x 1/8, order package, 363138R94, (NSS)

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, cylinder

1шт.

9

WASHER, o-ring back-up, used only w/two piece return tube, order package, 363138R94, (NSS)

2шт.

10

(Not used in this application)

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cylinder return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

WASHER, piston head back-up, order package, 363138R94, (NSS)

2шт.

13

O-RING, 3-1/8 x 3-1/2 x 3/16, order package, 363138R94, (NSS)

1шт.

14

385020R1

NUT

3/4-16 hex. lock

1шт.

15

361003R1

HEAD

piston

1шт.

16

371297R11

HEAD (CYLINDER)

HEAD w/O-RINGS & PLUGS, front

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

O-RING, 5/8 x 13/16 x 3/32, order package, 363138R94, (NSS)

1шт.

19

O-RING, 3/16 x 5/16 x 1/16, order package, 363138R94, (NSS)

1шт.

20

361007R11

RETAINER

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

RING, piston rod gland, order package, 363138R94, (NSS)

1шт.

23

SEAL, piston rod dust, order package, 363138R94, (NSS)

1шт.

24

RETAINER, piston rod dust seal, order package, 363138R94, (NSS)

1шт.

25

360372R1

COLLAR

stroke limit plain half

1шт.

26

361010R1

COLLAR

stroke limit flanged half

1шт.

27

361085R91

CLAMP

ASSY, stroke limit collar

1шт.

28

361005R13

ROD

YOKE ASSY, piston

1шт.

29

O-RING, 9/16 x 3/4 x 3/32, order package, 363138R94, (NSS)

1шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug

2шт.

31

9410360

PLUG

5/8 C-Z STR THD o-ring boss, cylinder head

2шт.

32

375426R91

COLLAR

ASSY, stroke limit

1шт.

393503R1

THUMB SCREW,5/16" - 24 x 5/8"

thumb

1шт.

363138R94

PACKAGE

hydraulic cylinder o-ring service, consists of ref nos 7, 9, 12, 13, 18, 19, 22, 23, 24 and 29

1шт.
