Запчасти Case IH 500 (B-48) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT & ASSIST WHEELS, 12 & 16 ROW

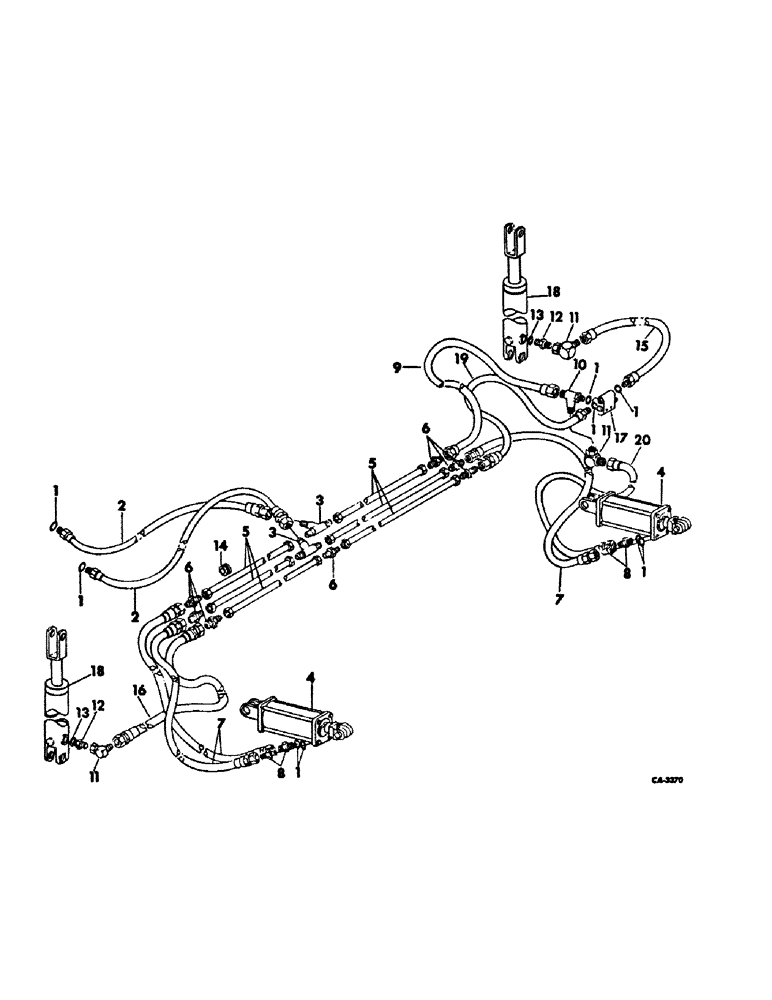

Схема запчастей Case IH 500 - (B-48) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT & ASSIST WHEELS, 12 & 16 ROW
3
1
13
5
6
18
7
11
19
8
1
3
2
8
1
1
20
2
14
11
4
15
6
7
1
12
17
9
1
1
10
5
12
11
13
4
16
18
6

Артикул

Название

Примечание

Количество

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

9шт.

2

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic

2шт.

3

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way

3шт.

4

371292R95

CYLINDER

ASSY, 3-1/2 x 8 double acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.

5

58024C1

TUBE ASSY, assist wheels 0.625" OD, 96" Length

6шт.

6

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg flared tube

7шт.

7

105100C1

HOSE ASSY.

HOSE ASSY, 1/2 ID x 72 in. hydraulic, 3 for 12 row

1шт.

7

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 ID x 75 in. hydraulic, 1 for 16 row

1шт.

7

58153C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, Class 7

12.70 mm ID x 2160.00 mm, 3 for 16 row

1шт.

8

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel, 6 for 12 row and 5 for 16 row

1шт.

9

125816C1

HOSE ASSY, 1/2 ID x 35 in. hydraulic, 3 for 12 row

1шт.

9

59095C1

HOSE

ASSY, 1/2 ID x 43 in. hydraulic, 16 row

1шт.

10

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel

1шт.

493792R2

UNION

RESTRICTOR, 7/8-14

1шт.

11

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel

3шт.

12

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 C-Z 37 deg flared tube

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

14

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 rubber

12шт.

15

464046R91

HOSE ASSY.

HOSE ASSY, 1/2 ID x 75 in. hydraulic

1шт.

16

324538R91

HOSE ASSY, 1/2 ID x 88 in. hydraulic

1шт.

17

546861R92

VALVE

ASSY, selector, for components see list of parts under details of hydraulic marker alternator

1шт.

18

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 in. x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

19

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic, 16 row

1шт.

20

125816C1

HOSE ASSY, 1/2 ID x 35 in. hydraulic, 16 row

1шт.

543261R1

SCREW

ASSY, cylinder thumb

2шт.

Выбрано товаров: 27
