Запчасти Case IH 500 (B-46) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT & ASSIST WHEELS, 6 ROW WIDE & 8 ROW

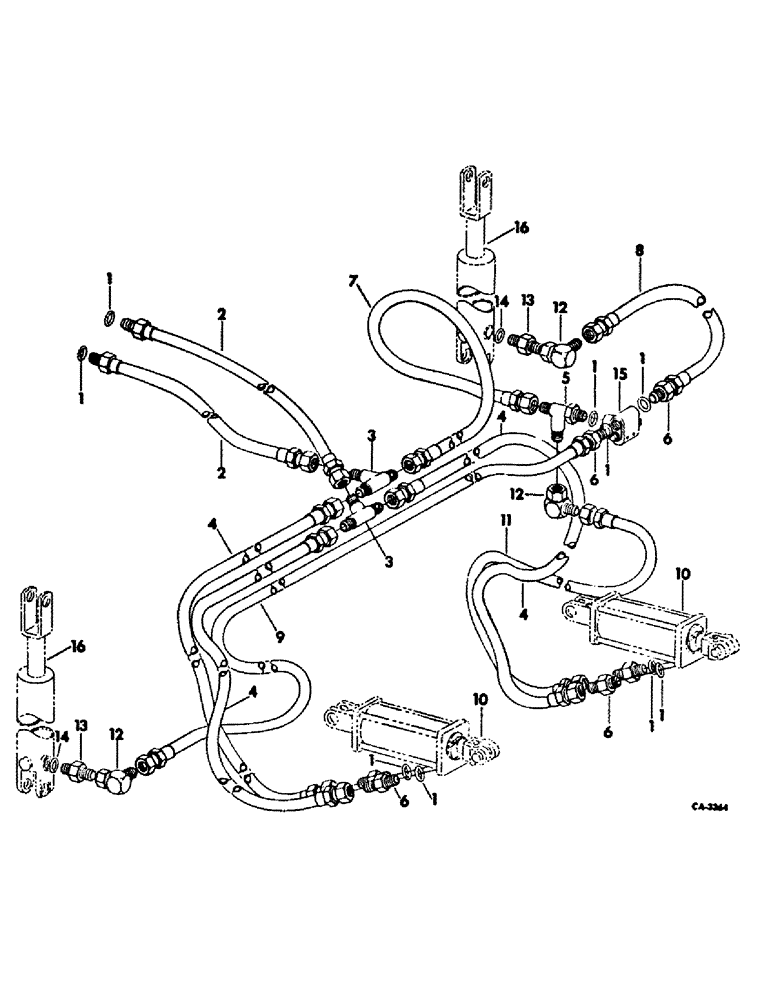

Схема запчастей Case IH 500 - (B-46) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT & ASSIST WHEELS, 6 ROW WIDE & 8 ROW
8
6
6
2
15
1
14
12
1
1
12
1
1
16
4
11
3
7
5
4
12
1
3
1
4
1
13
4
10
13
6
6
1
2
9
14
16
10

Артикул

Название

Примечание

Количество

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

9шт.

2

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic

2шт.

3

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way

2шт.

4

541628R1

HOSE ASSY, 1/2 ID x 125 in. hydraulic, 3 for 6 row wide & 8 row narrow

1шт.

4

541630R1

HOSE ASSY, 1/2 ID x 170 in. hydraulic, 3 for 8 row wide

1шт.

5

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 C-Z 37 deg hyd flared tube, 6 row wide and 8 row narrow

1шт.

5

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel, 8 row wide

1шт.

493792R2

UNION

RESTRICTOR, 7/8-14, 8 row wide

1шт.

6

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

6шт.

7

58766C1

HYDRAULIC HOSE,0.50" ID x 95.00", Class 7

HOSE ASSY, 1/2 ID x 95 in. hydraulic, row wide and 8 row narrow

1шт.

7

541631R1

HOSE ASSY.

HOSE ASSY, 1/2 ID x 145 in. hydraulic, 8 row wide

1шт.

8

58153C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, Class 7

12.70 mm ID x 2160.00 mm, 6 row wide and 8 row narrow

1шт.

8

59095C1

HOSE

ASSY, 1/2 ID x 43 in. hydraulic, 2 for 8 row wide

1шт.

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube, 8 row wide

1шт.

9

58767C1

HOSE

ASSY, 1/2 ID x 242 in. hydraulic, 6 row wide and 8 row narrow

1шт.

9

58147C1

HOSE ASSY, 1/2 ID x 250 in. hydraulic, 8 row wide

1шт.

10

371292R95

CYLINDER

ASSY, 3-1/2 x 8 double acting hydraulic, for components see list of parts under details of hyd cylinder

1шт.

11

125816C1

HOSE ASSY, 1/2 ID x 35 in. hydraulic

1шт.

12

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel

3шт.

13

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 C-Z 37 deg flared tube

2шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

15

546861R92

VALVE

ASSY, selector, for components see list of parts under details of hydraulic marker alternator

1шт.

16

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 in. x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

543261R1

SCREW

ASSY, cylinder thumb

2шт.

Выбрано товаров: 26
