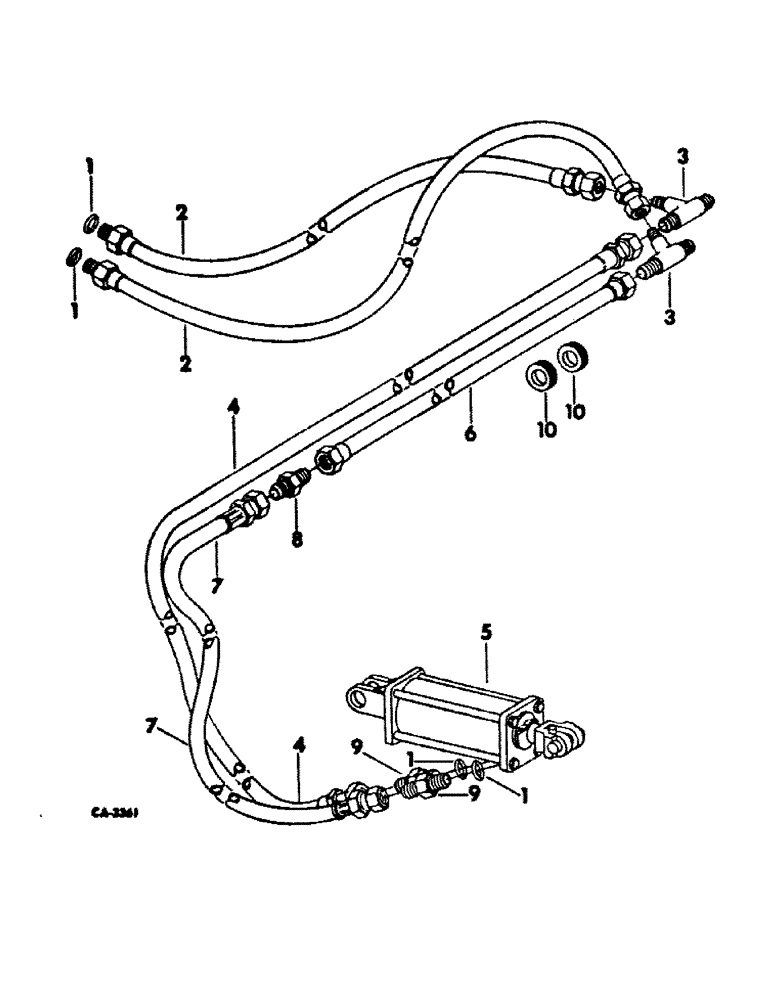

Запчасти Case IH 500 (B-45) - HYDRAULIC CONNECTIONS, PLANTERS W/ASSIST WHEELS & W/O MARKER ATTACHMENT, 6 ROW WIDE, 8, 12 & 16 ROW

1

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

6шт.

2

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic

2шт.

3

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd flared tube three way

2шт.

4

541628R1

HOSE ASSY, 1/2 ID x 125 in. hydraulic, 4 for 6 row wide and 8 row

1шт.

5

371292R95

CYLINDER

ASSY, 3-1/2 x 8 double acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.

6

58024C1

TUBE ASSY, assist wheel, 4 for 12 and 16 row 0.625" OD, 96" Length

1шт.

7

105100C1

HOSE ASSY.

HOSE ASSY, 1/2 ID x 72 in. hydraulic, 4 for 12 row

1шт.

7

58153C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, Class 7

12.70 mm ID x 2160.00 mm, 4 for 16 row

1шт.

8

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

UNION, 7/8-14 C-Z 37 deg hyd flared tube, 4 for 12 and 16 row

1шт.

9

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

10

117966

GROMMET,5/8" ID x 1 11/64" x .188"

5/8 rubber, 8 for 12 and 16 row

1шт.

543261R1

SCREW

ASSY, cylinder thumb

2шт.
