Запчасти Case IH 500 (B-43) - HYDRAULIC PUMP, FOR 12 AND 16 ROW

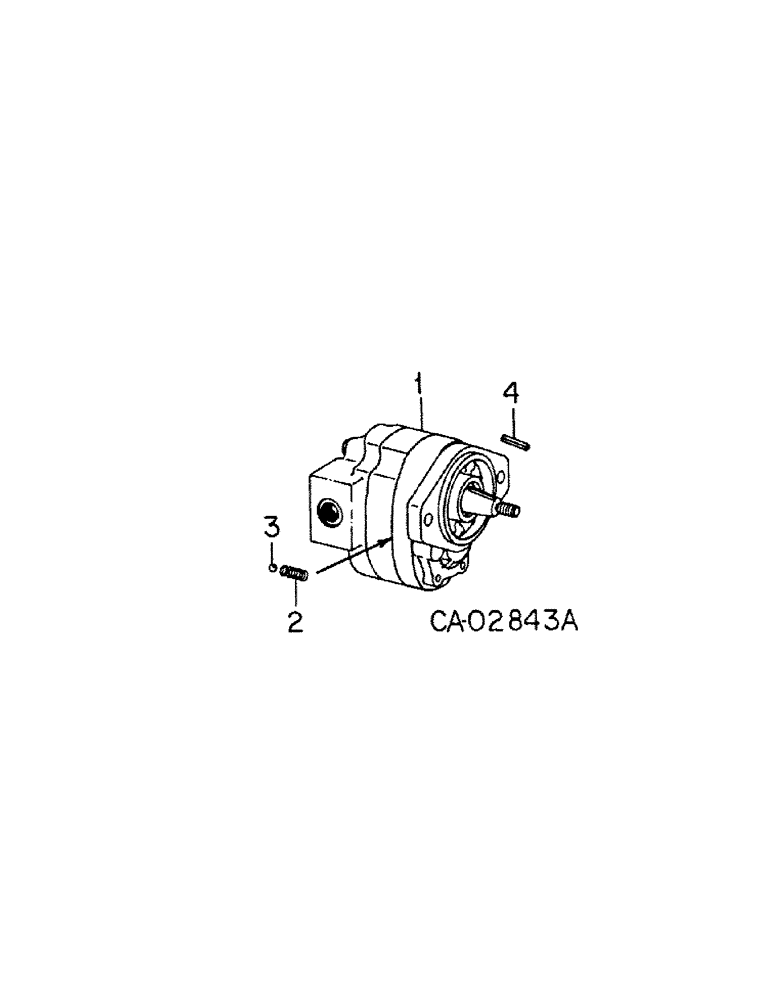

Схема запчастей Case IH 500 - (B-43) - HYDRAULIC PUMP, FOR 12 AND 16 ROW
4
1
3
2

Артикул

Название

Примечание

Количество

1

549531R91

PUMP

ASSY, hydraulic gear, order pump, 142482C91, coupling 1279355C91, screw, 180141, screw, 180146, washer, 120383 and two washers, 60583C1

1шт.

1

60584C91

PUMP

ASSY, hydraulic gear, order pump, 142482C91

1шт.

1

142482C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, replaces 60584C91

1шт.

2

381230R1

SPRING

check ball

1шт.

3

17013R1

BALL,13/32" Dia

1шт.

4

55190C1

KEY, drive shaft, used w/pump, 549531R91

1шт.

4

177192C1

KEY

drive shaft, used w/pumps, 60584C91 and 142482C91

1шт.

55295C91

SEAL KIT

KIT, seal repair, consists of

1шт.

17013R1

BALL,13/32" Dia

1шт.

381230R1

SPRING

check ball

1шт.

BACK-UP GASKET, (NSS)

1шт.

DIAPHRAGM, (NSS)

1шт.

DIAPHRAGM SEAL, (NSS)

1шт.

PROTECTOR GASKET, (NSS)

1шт.

SEAL, (NSS)

1шт.

THRUST PLATE, (NSS)

1шт.

INSTRUCTIONS, (NSS)

1шт.

156395C91

RESERVOIR

ASSY, hydraulic oil

1шт.

Выбрано товаров: 18
