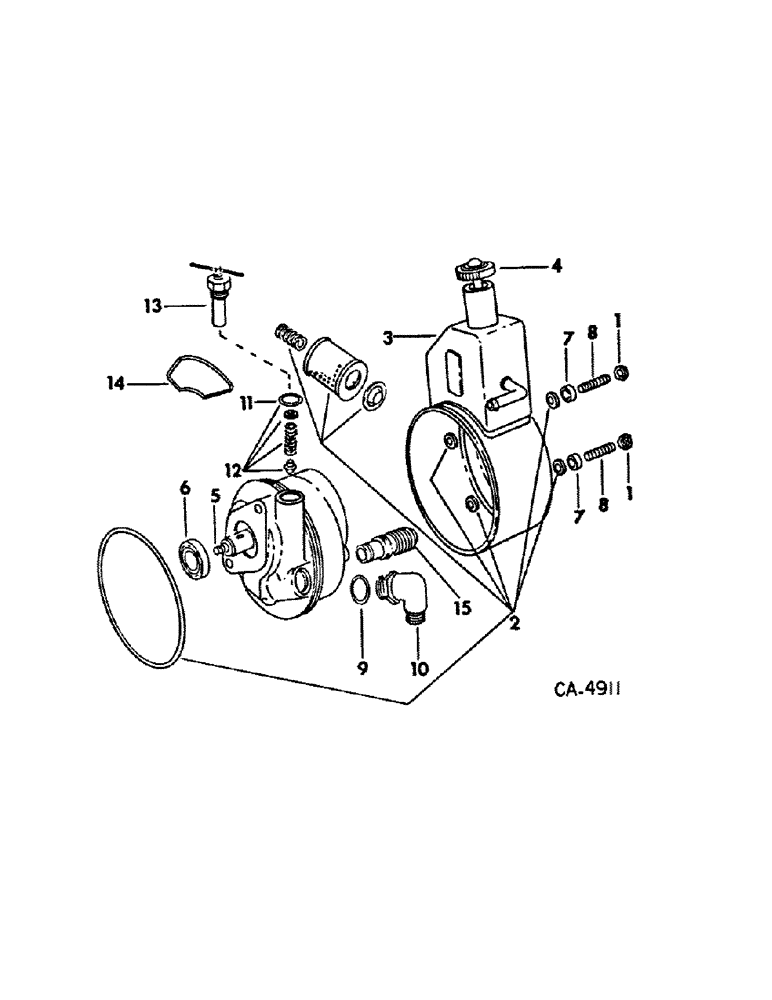

Запчасти Case IH 500 (B-40) - HYDRAULIC PUMP, 1000 RPM PTO

149368C91

PUMP

ASSY, hydraulic 8.0 GPM w/caution product graphic 145167C1, consists of

1шт.

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

reservoir lock

2шт.

2

507809C91

FILTER, ENGINE OIL

KIT, hydraulic pump filter, replaces 58593C91

1шт.

3

149373C91

RESERVOIR

w/PRODUCT GRAPHIC, 145167C1

1шт.

3

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149373C91

1шт.

3

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

4

467536C91

CAP

w/GAGE ASSY, filler, replaces 58595C1

1шт.

5

62226C1

SHAFT

pump

1шт.

62385C1

RING

shaft snap

2шт.

6

177431H1

OIL SEAL

oil, replaces 62225C1 and 586201R911

1шт.

7

58598C1

SPACER

reservoir

2шт.

8

58597C1

STUD

reservoir

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

11

62227C1

O-RING,0.755" ID x 0.949" OD x 0.097" Width

O-RING, throttle valve stem

1шт.

12

62230C1

KIT

throttle valve

1шт.

13

62229C2

KIT

throttle valve stem

1шт.

14

62384C1

KIT

O-RING

4шт.

15

62414C1

VALVE

pressure relief

1шт.

479187C92

PACKAGE

KIT, hydraulic pump gasket service, consists of o-ring (NSS), o-ring (NSS)

1шт.

507793C1

GASKET

O-RING, o-ring (NSS)

4шт.

507811C1

GASKET

O-RING, oil seal (NSS), sealing washer (NSS), filter (NSS), o-ring (old style) (NSS)

4шт.

507792C1

NUT

FLANGED NUT, instructions (NSS)

2шт.
