Запчасти Case IH 500 (B-31) - PRESS WHEELS AND TIRES, QUANTITIES SHOWN ARE PER ROW

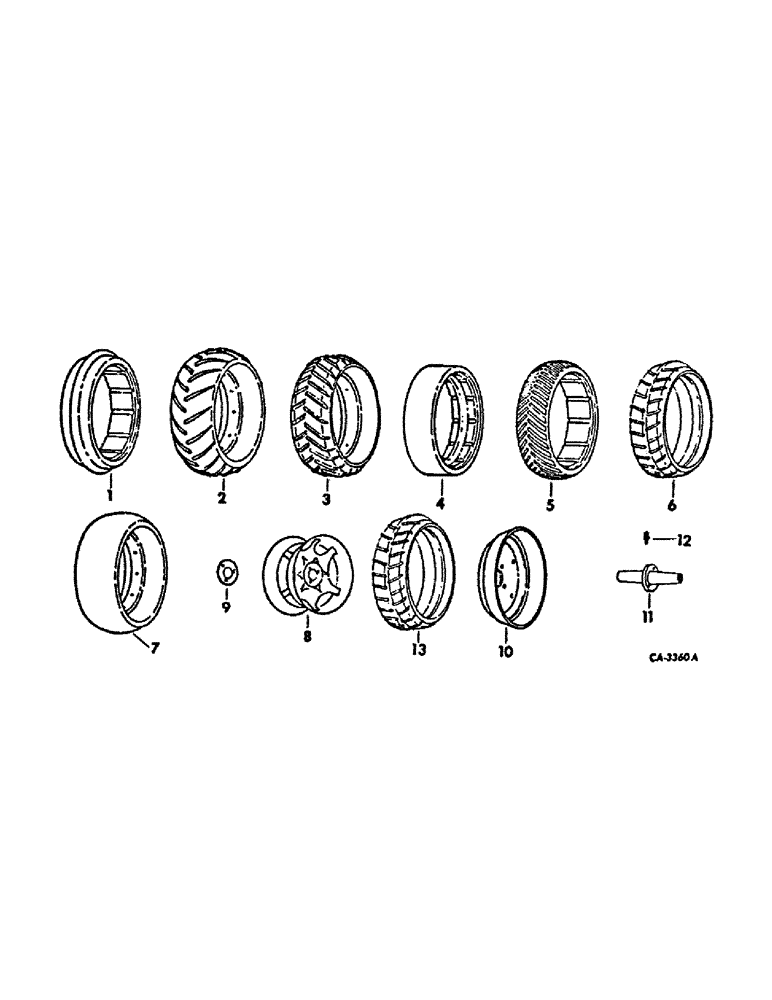

Схема запчастей Case IH 500 - (B-31) - PRESS WHEELS AND TIRES, QUANTITIES SHOWN ARE PER ROW
5
12
8
13
10
11
2
9
3
7
1
6
4

Артикул

Название

Примечание

Количество

1

461917R1

TYRE/TIRE

TIRE, 4 x 16 ribbed

1шт.

2

477311R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned traction

1шт.

3

483118R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic concave tread

1шт.

4

484736R1

TYRE/TIRE

TIRE, 4 x 16 concave

1шт.

5

524666R1

TYRE/TIRE

TIRE, 4 x 16 chevron

1шт.

6

542240R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic dual rib traction tread

1шт.

7

624478R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned

1шт.

8

486609R1

WHEEL

ASSY, press

1шт.

9

464466R1

RETAINER

WASHER, press wheel, used only w/wheel, 486609R1

1шт.

10

493062R2

DISC

DISK, half, 4 x 16 wheel, 4 for 4 row and 6 row wide double row

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 znd hex-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

10

483328R1

DISC

DISK, half, 7 x 16 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

6шт.

11

472106R1

HUB

press wheel

1шт.

11

60858C1

HUB

press wheel, 2 for 4 row and 6 row double row

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 C-Z hex-hd mach, 3 per hub

1шт.

120377

NUT,3/8" - 16, Gr 5

3 per hub 3/8"-16, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 3 per hub 3/8"

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 taper drive THD STR lub, 1 per hub

1шт.

13

59361C1

TYRE/TIRE

TIRE, 7 x 16 center rib traction tread

1шт.

Выбрано товаров: 23
