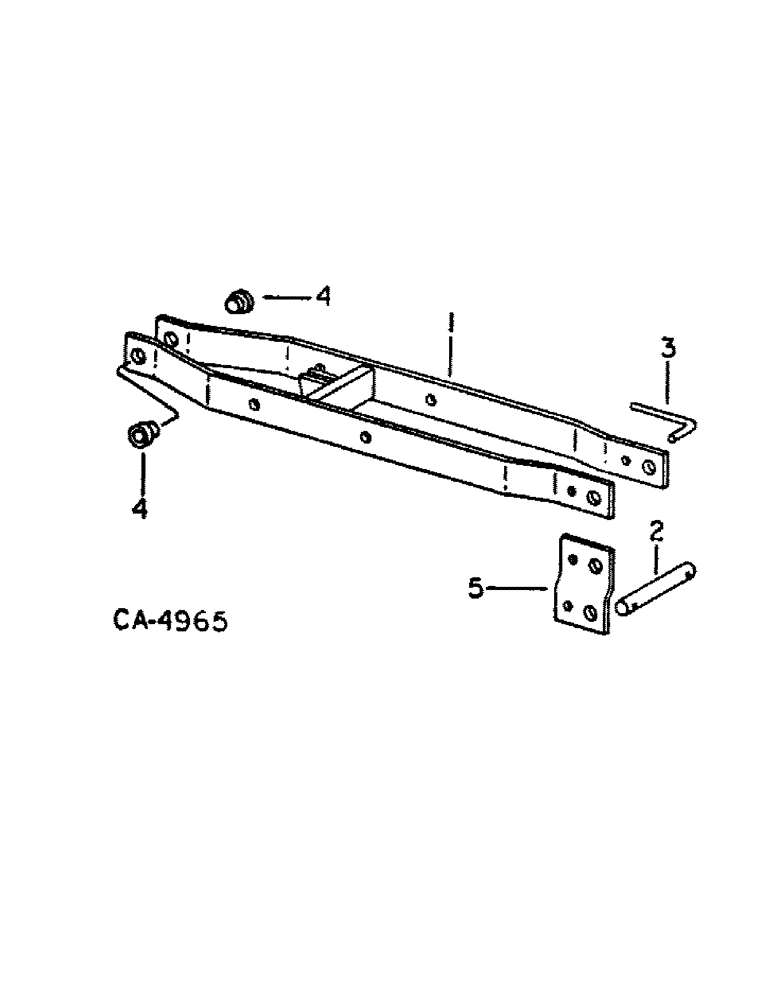

Запчасти Case IH 500 (B-30[A]) - PRESS WHEEL FRAME, 4 ROW AND 6 ROW WIDE DOUBLE ROW PLANTERS, QUANTITIES SHOWN ARE PER ROW

1

60881C1

FRAME ASSY, press wheel

2шт.

2

60884C1

AXLE, press wheel

2шт.

608701R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

3

461912R2

PIN

axle retaining

2шт.

4

546562R2

BUSHING

press wheel pivot

4шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

100594C1

ARM, press wheel

4шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 x 1-1/4 znd hex-hd mach

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8-11 x 1-1/2 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.
