Запчасти Case IH 500 (B-29) - JOCKEY BARS

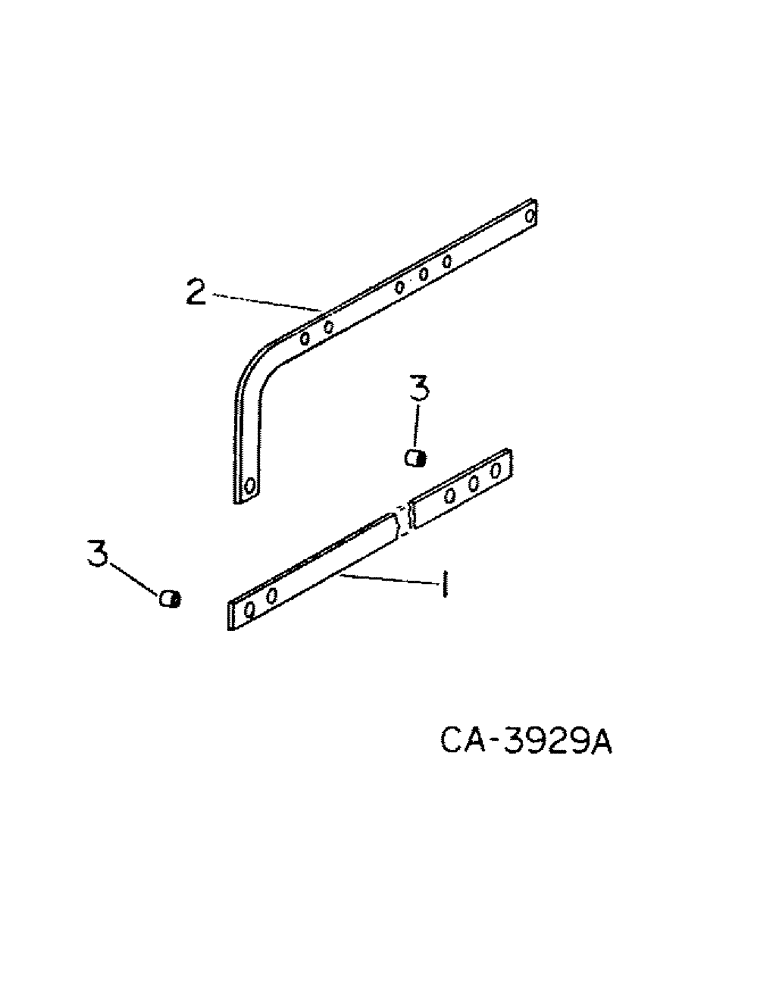

Схема запчастей Case IH 500 - (B-29) - JOCKEY BARS
3
1
3
2

Артикул

Название

Примечание

Количество

1

100022C1

BAR, jockey, 31.4 in. long, 22 to 30 in. spacing, 3 for 6 row narrow, 5 for 8 row narrow, 22 in. spacing, 4 for 8 row 28-30 in. spacing, 9 for 12 row and 13 for 16 row

1шт.

1

472114R1

BAR, jockey, 40 in. long, 36 to 40 in. spacing, 3 for 6 row wide, 4 for 8 row wide with 36 to 40 in. spacing

1шт.

1

100289C1

BAR, jockey, 13.4 in. long, 4 for 4 row double row, 6 for 6 row wide double row

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd sq-nk crg, 1 per spacer

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga znd, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

2

548717R2

ARM, jockey arch, 2 for 8 row with 28 to 40 in. spacing

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

159716C1

SPACER,3/4" Tube x 5/8"

jockey bar, 2 per jockey bars, 100022C1 & 472114R1

1шт.

3

100353C1

SPACER, jockey bar, 1 per jockey bar, 100289C1

1шт.

Выбрано товаров: 13
