Запчасти Case IH 500 (B-28) - GROUND TOOLS, NON-STAGGERED, QUANTITIES SHOWN ARE PER ROW EXCEPT AS INDICATED

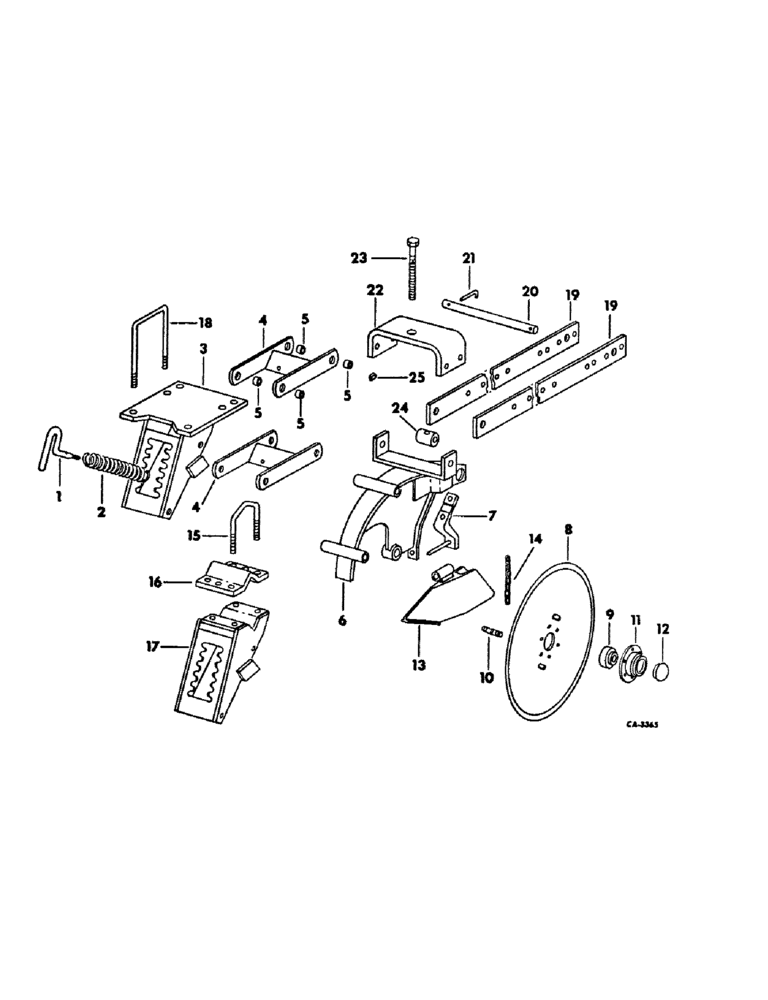

Схема запчастей Case IH 500 - (B-28) - GROUND TOOLS, NON-STAGGERED, QUANTITIES SHOWN ARE PER ROW EXCEPT AS INDICATED
10
8
9
3
5
7
4
25
5
23
13
18
21
5
16
19
5
24
4
12
19
17
2
14
20
1
11
6
22
15

Артикул

Название

Примечание

Количество

1

471119R1

HOOK

CLIP, spring

2шт.

265923R1

LOCK PIN,3/16" x 1 1/4", Slotted

Pin, 3/16" x 1 1/4", Slotted

2шт.

2

58156C1

SPRING

pressure

2шт.

3

58197C1

BRACKET ASSY, tool bar, 2 for 4 row, 4 for 6 row, 6 for 8 row

1шт.

4

493099R1

LINK

AGE ASSY

2шт.

22471R1

BOLT,Hex, 1/2" - 13 x 6 3/4", Gr 5

SCREW, 1/2-13 x 6-3/4 znd hex-hd cap

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

231-1448

NUT,1/2"-13, GB

1/2-13 znp nylon insert

6шт.

5

493102R1

BUSHING

linkage

4шт.

6

58209C1

BRACKET ASSY

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

7

547671R91

BRACKET

ASSY

1шт.

8

492756R1

DISC

DISK, 13-1/2 in.

2шт.

9

1268017C91

BALL BEARING,15.9mm ID x 45.23mm OD x 18.67mm W

ball, replaces 492757R91

2шт.

9

1268017C91GV

BEARING

Value, Ball Bearing

2шт.

10

492750R1

BOLT,5/8" - 11

double disk tie

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga C-Z

3шт.

124847

COLLAR

5/8-11 C-Z hex. jam

1шт.

23467R1

NUT,Jam, 5/8"-11, G5, LH

5/8-11 C-Z hex. jam LH thrd

1шт.

11

492710R1

RETAINER

FLANGE, bearing

2шт.

104081

RIVET,But Hd, 1/4" x 1/2"

1/4 x 1/2 b-head solid

12шт.

12

492709R1

CAP

bearing housing

2шт.

13

548452R3

SHOE

1шт.

14

548451R1

CHAIN (AG)

CHAIN

4шт.

19716R1

PIN,4.75mm OD x 44.45mm L, Coiled

1шт.

15

524686R3

BOLT,U, 1/2" - 13 x 3.60"

U-BOLT, 1/2-13, 4 for 6 and 8 row, 2 per row 12 and 16 row

1шт.

120384

WASHER,1/2"

LOCK, , 2 per u-bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per u-bolt 1/2"-13, G5

1шт.

16

524654R2

CLAMP

CAP, 2 for 4, 6 and 8 row, 1 per row 12 and 16 row

1шт.

17

471117R93

BRACKET ASSY, 2 for 4, 6 and 8 row, 1 per row 12 and 16 row

1шт.

18

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, 5/8-11, 4 for 4 row, 8 for 6 row, 12 for 8 row

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per u-bolt

1шт.

19

58255C2

RAIL, press wheel

2шт.

20

461911R1

PIN

AXLE

2шт.

608701R1

WASHER

21/32 x 1-1/4 x 16 ga C-Z

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

21

461912R2

PIN

axle retaining

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

22

58252C1

ANCHOR, adjusting screw

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

23

58020C1

BOLT, press wheel adjusting

1шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8-11 C-Z SLT hex.

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

24

482461R1

PIN

SWIVEL, adjusting screw

1шт.

180168

SCREW,Hex, 1/2" - 13 x 5/8", Gr 5

1/2-13 x 5/8 znd hex-hd cap

1шт.

25

522591R1

PLUG

locking

1шт.
