Запчасти Case IH 500 (B-27[B]) - CUT-OFF BRUSH ASSY

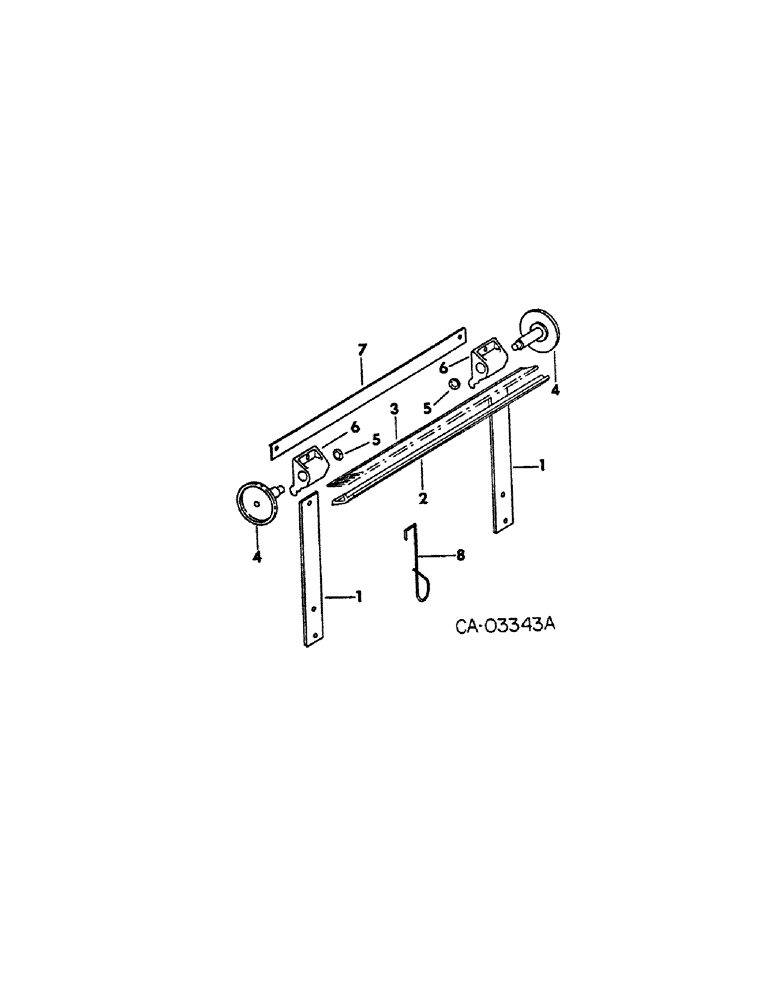

Схема запчастей Case IH 500 - (B-27[B]) - CUT-OFF BRUSH ASSY
3
6
7
6
2
4
4
1
1
8
5
5

Артикул

Название

Примечание

Количество

58968C93

CIRCULAR BRUSH

BRUSH ASSY, cut-off, 4, 6 and 12 row except 4 row double row, 1 per seed hopper

1шт.

58969C93

BRUSH ASSY.

BRUSH ASSY, cut-off, 4 row double row, 8 and 16 row, 1 per seed hopper

1шт.

1

NSS

NOT SOLD SEPARAT

SPRING, cut-off brush, 2 per brush

1шт.

Not serviced separately order cut-off brush assy.

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

BRUSH ASSY, cut-off, 4, 6 and 12 row except 4 row double row, 1 per seed hopper

6шт.

58969C93

BRUSH ASSY.

NUT, lock

2шт.

120622

NUT,#8-32

4шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

2

NSS

NOT SOLD SEPARAT

STRIP, clamping, 1 per seed hopper

1шт.

Not serviced separately order cut-off brush assy.

1шт.

3

61136C2

BRUSH

cut-off, 4, 6 and 12 row except 4 row double row, 1 per seed hopper

1шт.

3

61137C2

BRUSH

cut-off, 4 row double row, 8 and 16 row, 1 per seed hopper

1шт.

4

546393R1

ROLL

ER, gauging, 2 per brush

1шт.

Not serviced separately order cut-off brush assy.

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

5

437157R1

SNAP RING,#37, Ext

Ring, Snap, , 2 per brush #37, Ext

1шт.

6

546394R1

BRACKET

gauging roller, 2 per brush

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP, tie, 1 per seed hopper

1шт.

Not serviced separately order cut-off brush assy.

1шт.

436697

SCREW,Slotted Pan Hd, #8-32 x 3/4"

8-32 x 3/4 znd slt-pan-hd mach

2шт.

545558R1

LOCK NUT

lock

2шт.

8

100170C1

SPRING

lock-out

1шт.

Выбрано товаров: 22
