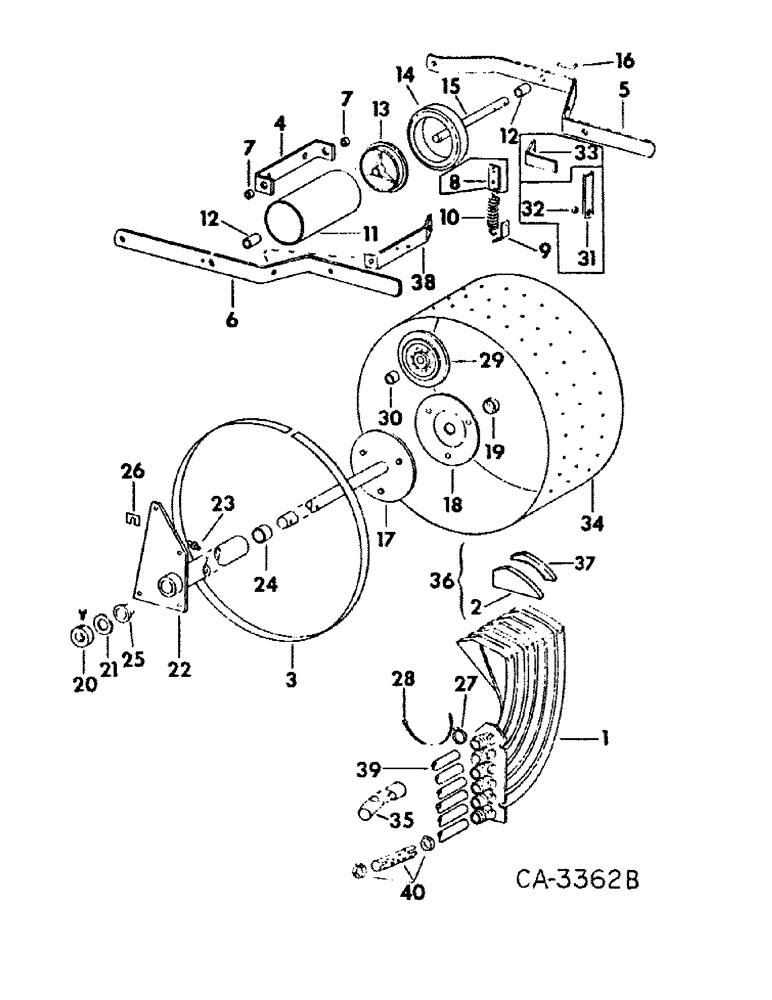

Запчасти Case IH 500 (B-22) - SEED HANDLING TUBES AND DRUM, QUANTITIES SHOWN ARE PER SEED HOPPER EXCEPT AS INDICATED

1

546331R3

NO LONGER SERVICED

MANIFOLD ASSY, seed discharge, 4, 6 and 12 row, on orders for 546331R3 furnish manifold package 62175C91

1шт.

1

100157C1

TUBE ASSY.

MANIFOLD ASSY, seed discharge, 4, 6 and 12 row except 4 row double row

1шт.

58776C1

GAUGE

manifold

1шт.

113090C1

SEALANT

SEALANT, 3 ounce tube RTV silicone, used to caulk around the manifold mounting flange to prevent air leakage

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

55171C92

MANIFOLD

ASSY, seed discharge, 8 and 16 row, on orders for 55171C92 furnish manifold package 62176C91

1шт.

1

100168C1

TUBE ASSY.

MANIFOLD ASSY, seed discharge, 4 row double row, 8 and 16 row

1шт.

58776C1

GAUGE

manifold

1шт.

113090C1

SEALANT

SEALANT, 3 ounce tube RTV silicone, used to caulk around the manifold mounting flange to prevent air leakage

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

10шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

2

546990R1

PLUG

manifold, 4 row machines, also for 12 row operation with 16 row planter, for use w/discontinued manifold 546331R3

2шт.

2

113255C1

PLUG

manifold, 4 row machines except double row, also for 12 row operation with 16 row planter

2шт.

3

57669C3

BELT

Seed drum, For rows one and six of seed drum when used on 4-row planter, 4 required for 12 row operation on 16 row planter

2шт.

3

56539C2

BELT

seed drum, for 24 hole drum, for use when planting see corn w/butterfly tips

1шт.

3

63280C1

PACKAGE

seed drum belt service, for 2 rows, used to aid in the planting of long slender corn seeds or seeds with, butterfly tips, for 36 hole drum, consists of (1) belt (NSS), (1) fastener (NSS), (1) instructions (NSS)

1шт.

4

546332R1

SUPPORT

wheel cutoff

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

548367R1

ARM, wheel cutoff front, for use w/discontinued manifold 546331R3

1шт.

5

100177C1

ARM

wheel cutoff front

1шт.

6

548367R1

ARM, wheel cutoff rear, 4, 6 & 12 row, for use w/discontinued manifold 546331R3

1шт.

6

548808R2

ARM, wheel cutoff rear, 8 and 16 row, for use w/discontinued manifold 55171C92

1шт.

6

100177C1

ARM

wheel cutoff rear, 4, 6 and 12 row except 4 row double row

1шт.

6

100176C1

DEFLECTOR

ARM, wheel cutoff rear, 4 row double row, 8 and 16 row

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

548363R1

BUSHING

pivot

2шт.

8

546335R1

CLIP, spring, serial no. 4933 & below

1шт.

9

546336R1

BRACKET, spring

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

10

626206R1

SPRING

extension

1шт.

11

546338R1

SLEEVE

cutoff wheel, 4 row except double row

1шт.

11

546337R1

SLEEVE

cutoff wheel long, 6 & 12 row, also 2 required for 12 row operation with 16 row planter

1шт.

11

548809R1

SLEEVE

cutoff wheel, 4 row double row, 8 and 16 row

1шт.

12

552064R1

SPACER,7/8" Tube x 1 1/2"

2 for 4 row except double row, 4 for 12 row operation with 16 row planter

1шт.

13

539670R1

RIM

cutoff wheel

2шт.

14

546341R1

TYRE/TIRE

TIRE, cutoff wheel, 1 per row

1шт.

15

548364R1

AXLE

4, 6 and 12 row except 4 row double row

1шт.

15

548810R1

AXLE

4 row double row, 8 and 16 row

1шт.

22258R1

WASHER

21/32 x 1 x 22 ga C-Z (as required)

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

16

548365R1

PIN

axle retainer

1шт.

17

56039C1

SHAFT

ASSY, drum, 4, 6 and 12 row except 4 row double row

1шт.

17

56042C1

SHAFT

ASSY, drum, 4 row double row, 8 and 16 row

1шт.

37-2620

DOWEL,3/8" x 1 1/4"

PIN, 3/8 x 1-1/4 dowel

3шт.

18

141509C1

CAP

drum end

1шт.

19

23836R1

WASHER

.656 x 1.375 x .105, replaces cap, 547359R1

1шт.

271715

BOLT,Hex, 5/8" - 11 x 1", Gr 5

SCREW, 5/8-11 x 1 znd hex-hd cap

1шт.

20

546378R1

SPACER

drive

1шт.

21

548480R1

THRUST WASHER

wear

3шт.

21891R1

HEADED PIN,5/16" x 2"

PIN, 5/16 x 2 znd std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

22

546380R1

PIPE

ASSY, drum shaft, 4, 6 and 12 row except 4 row double row

1шт.

22

548814R1

PIPE

ASSY, drum shaft, 4 row double row, 8 and 16 row

1шт.

589713R1

SHIM

.036 (as required)

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 znd hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

23

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 STR lubrication

1шт.

24

609775R1

BUSHING

1шт.

25

548453R1

BUSHING,1.002" ID x 1.5" OD x 1.125"

drum shaft

1шт.

26

589713R1

SHIM

.036

3шт.

26

935915R1

SHIM,33.02mm OD x 0.38mm Thk

.015

3шт.

27

626239R1

HOSE CLAMP,#17, 1 1/16", Spring

CLAMP, seed tube hose, planter end, one per row

1шт.

27

995218R1

CLAMP

seed tube hose, manifold end, one per row

1шт.

28

306132C1

CABLE TIE,14.5" L

STRAP, tube holding

1шт.

29

548821R1

BEARING

WHEEL w/BEARING, drum support

1шт.

271726

ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

30

548822R1

SPACER

wheel

1шт.

31

548356R1

SUPPORT, wheel arm, serial no. 950 & below

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga znd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

32

373679R1

SPACER

serial no. 950 & below

1шт.

33

57627C1

BRACKET, spring, serial no. 4933 and below

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

34

DRUM, seed, refer to seed drum unit

1шт.

35

547608R1

PLASTIC-RUBBER TUBE

TUBE, reinforcing, 1 per row

1шт.

36

60629C91

PLUG ASSY, manifold, 16 row, includes ref nos 2 and 37

1шт.

37

STRIP, seal 5-1/2 in., make from 50 ft roll, 60628C1

1шт.

38

100180C1

STRAP

cut-off wheel arm

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

2шт.

120376

NUT,5/16"-18, G5

2шт.

39

546541R2

TUBE

100 foot coil

1шт.

REF: #39 - 546541R2 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.

1шт.

39

58238C2

TUBE

1шт.

TUBE, 58 inch coil, for seed delivery tube use the following lengths, 4 row planter, row 1 use 112 in., row 2 use 55 in., row 3 use 69 in., row 4 use 112 in., 4 row double row planter, row 1 use 130 in., row 2 use 119 in., row 3 use 58 in., row 4 use 58 in., row 5 use 74 in., row 6 use 84 in., row 7 use 119 in., row 8 use 130 in., 6 row narrow planter, row 1 use 130 in., row 2 use 84 in., row 3 use 53 in., row 4 use 74 in., row 5 use 102 102 in., row 6 use 130 in., 6 row wide planter, row 1 use 156 in., row

1шт.

40

63812C91

PACKAGE

air diffuser, 6 rows, consists of (12) clamp (NSS), (6) diffuser (NSS), (1) instructions (NSS)

1шт.

72902C1

TUBE

PACKAGE, beet seed tube, 2 rows

1шт.

62175C91

KIT

PACKAGE, seed manifold, consists of

1шт.

100157C1

TUBE ASSY.

MANIFOLD

1шт.

100172C1

DEFLECTOR

1шт.

113255C1

PLUG

2шт.

100177C1

ARM

2шт.

100180C1

STRAP

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16", SAE

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

113090C1

SEALANT

SEALANT

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

1шт.

589713R1

SHIM

1шт.

INSTRUCTIONS (NSS)

1шт.

62176C91

KIT

PACKAGE, seed manifold, consists of

1шт.

100177C1

ARM

1шт.

100180C1

STRAP

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

1шт.

100176C1

DEFLECTOR

ARM

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 5/16", SAE

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

113090C1

SEALANT

SEALANT

1шт.

100171C1

DEFLECTOR

1шт.

100168C1

TUBE ASSY.

MANIFOLD

1шт.

935915R1

SHIM,33.02mm OD x 0.38mm Thk

1шт.

589713R1

SHIM

1шт.

INSTRUCTIONS (NSS)

1шт.
