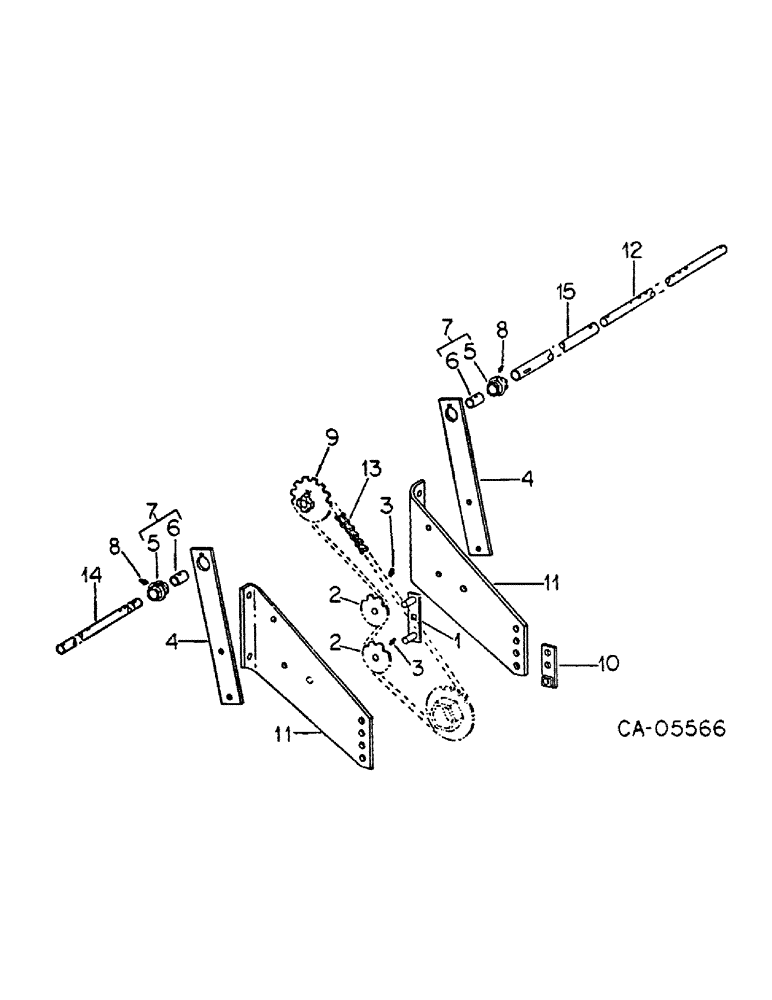

Запчасти Case IH 500 (B-15) - WHEEL DRIVE, 4, 6, 8 & 4 DOUBLE ROW W/ONE GAUGE WHEEL DRUM DRIVE

1

58317C1

ARM

TIGHTENER ASSY, wheel chain

1шт.

18573R1

CARRIAGE BOLT,Short Sq Nk, 5/8" - 11 x 1 1/2", Gr 2

BOLT, 5/8 x 1-1/2 crg type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

2

527070R1

SPROCKET ASSY.

SPROCKET, 8T idler

2шт.

3

25391R1

FITTING

3/16 STR drive type lub, 1 per sprocket

1шт.

4

58256C1

SUPPORT, shaft bearing

2шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

BEARING, (not serviced separately) order bearing assy, 481 812R11

1шт.

6

484060R1

BUSHING

4шт.

7

481812R11

BEARING ASSY

w/BUSHING, 484060R1, assy

4шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

8

19700R91

FITTING

3/16 x 45 deg angle drive lub

4шт.

9

546431R1

SPROCKET ASSY.

SPROCKET, 12T (Replaces 100047C1)

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

20535R1

CLEVIS PIN

PIN, 3/16 x 1.750 uhdn clevis

1шт.

10

100000C1

EXTENSION ASSY, wheel arm, 2 per wheel

1шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5, 2 per extension

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

11

ARM, wheel, refer to wheels unit

1шт.

12

128625C1

ROD, center drive

1шт.

21887R1

HEADED PIN,1/4" x 1 5/8"

PIN, 1/4 x 1.625 hd type 1

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

21801R1

WASHER

.281 x .734 x .056

2шт.

21761R1

WASHER

.906 x 1.500 x .054

3шт.

21714R1

WASHER

.906 x 1.500 x .105

2шт.

13

CHAIN, drive, use 57 links of 1-1/4 in. ext pitch roller chain from a 10 ft roll marked, 569089R91, one connecting link, 587372R91 and connecting link, 587929R91, use additional offset links, 456929R91 as required when wheel arm extensions are installed

1шт.

14

58267C2

SHAFT

wheel drive

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

6шт.

15

58168C1

COUPLER, wheel shaft, 12 row narrow and 16 row

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4", 6 for 4, 6 and 8 row, 10 for 12 row and 8 for 16 row

1шт.
