Запчасти Case IH 500 (YA-60[A]) - SPREADER ATTACHMENT, FOR INSECTICIDE

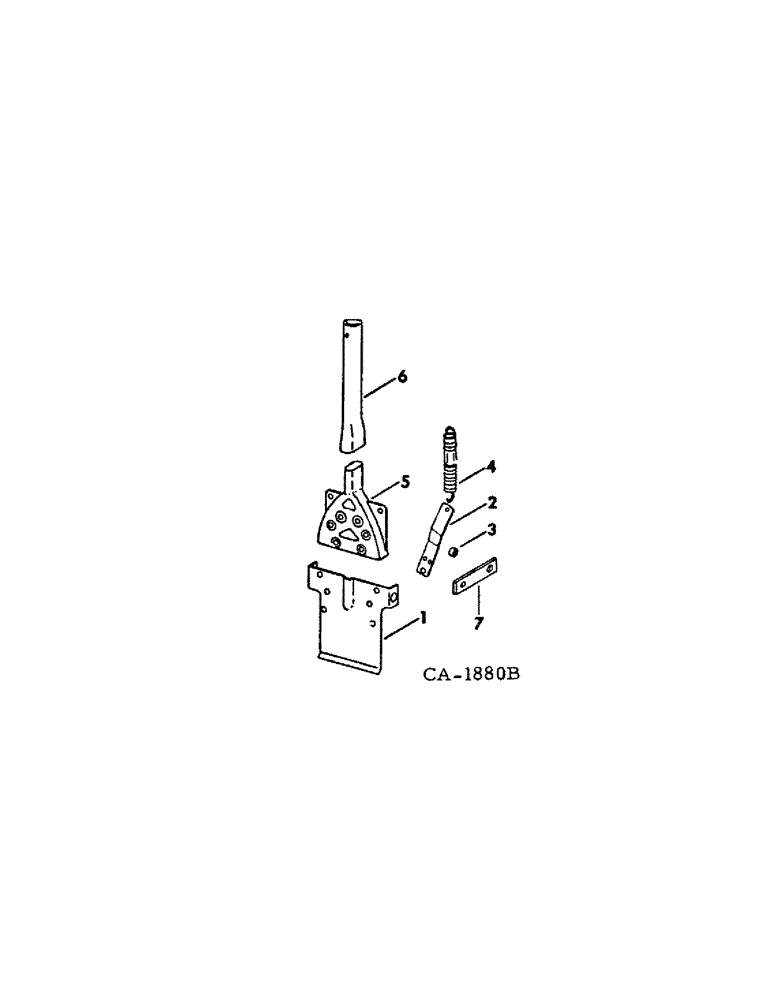

Схема запчастей Case IH 500 - (YA-60[A]) - SPREADER ATTACHMENT, FOR INSECTICIDE
4
5
7
6
1
2
3

Артикул

Название

Примечание

Количество

1

543762R1

SHIELD

front spreader

1шт.

2

548521R2

ARM

spring

1шт.

3

490125R1

WASHER

.396 x 9/16 x .25

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

4

543743R2

SPRING

chain tightener

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

5

543764R1

SLINGER

SPREADER, front

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

120376

NUT,5/16"-18, G5

4шт.

6

HOSE, rear, 11 in. long, make from 100 ft roll, 59187C1

1шт.

7

543765R1

PLATE

spreader support

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2-13 x 2 znd sq-nk crg

1шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 znd hex-hd mach, units without speed change att

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 znd hex-hd mach, units with speed change att

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
