Запчасти Case IH 500 (YA-48) - SPREADER ATTACHMENT, FOR INSECTICIDE

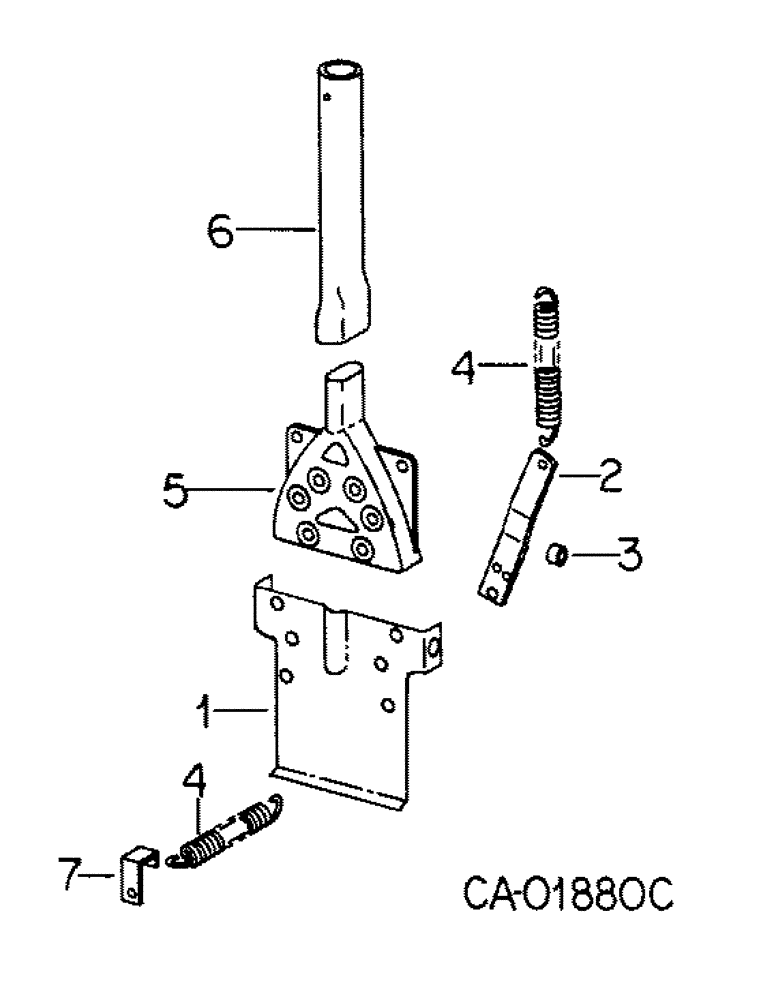

Схема запчастей Case IH 500 - (YA-48) - SPREADER ATTACHMENT, FOR INSECTICIDE
3
6
7
4
1
2
4
5

Артикул

Название

Примечание

Количество

1

137354C1

SHIELD

insecticide spreader, for 400 & 500 cyclo planters

1шт.

1

543762R1

SHIELD

front spreader, for 56 series planter & 92 cyclo lister

1шт.

2

548521R2

ARM

spring, for 56 series planter & 92 cyclo lister

1шт.

3

21741R1

WASHER

.406 x .875 x .105, for 400 & 500 cyclo planters

4шт.

178372R1

WASHER

.406 x 1.250 x .054

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

4

543743R2

SPRING

chain tightener

2шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

5

543764R1

SLINGER

SPREADER, front

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1, 400 & 500 cyclo planters

4шт.

619855R1

WASHER

.344 x .750 x .054, 400 & 500 cyclo planters

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 400 & 500 cyclo planters 5/16"

4шт.

120376

NUT,5/16"-18, G5

400 & 500 Cyclo planters 5/16"-18, G5

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5, 8 used for 400 & 500 cyclo planters

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 4 used for 56 series & 92 cyclo lister, 8 used for 400 & 500 cyclo planters 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

4 used for 56 series & 92 Cyclo lister, 8 used for 400 & 500 Cyclo planters 3/8"-16, G5

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5, 56 series & 92 cyclo lister

8шт.

619855R1

WASHER

.344 x .750 x .054, 56 series & 92 cyclo lister

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 56 series & 92 cyclo lister 5/16"

8шт.

120376

NUT,5/16"-18, G5

56 series & 92 Cyclo lister 5/16"-18, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

120376

NUT,5/16"-18, G5

4шт.

6

HOSE, rear, 11 in. long, make from 100 ft roll, 1254166C1, 56 series planter & 92 cyclo lister, hose, spreader, 9.5 in. long, make from 100 ft roll, 1254166C1, 400 & 500 cyclo planters

1шт.

7

60871C1

CLIP

spring, 400 & 500 cyclo planters

1шт.

7

548140R2

BUSHING

CHAIN TIGHTENER, 400 & 500 cyclo planters

8шт.

21741R1

WASHER

.406 x .875 x .105

4шт.

178372R1

WASHER

.406 x 1.250 x .054

4шт.

Выбрано товаров: 31
