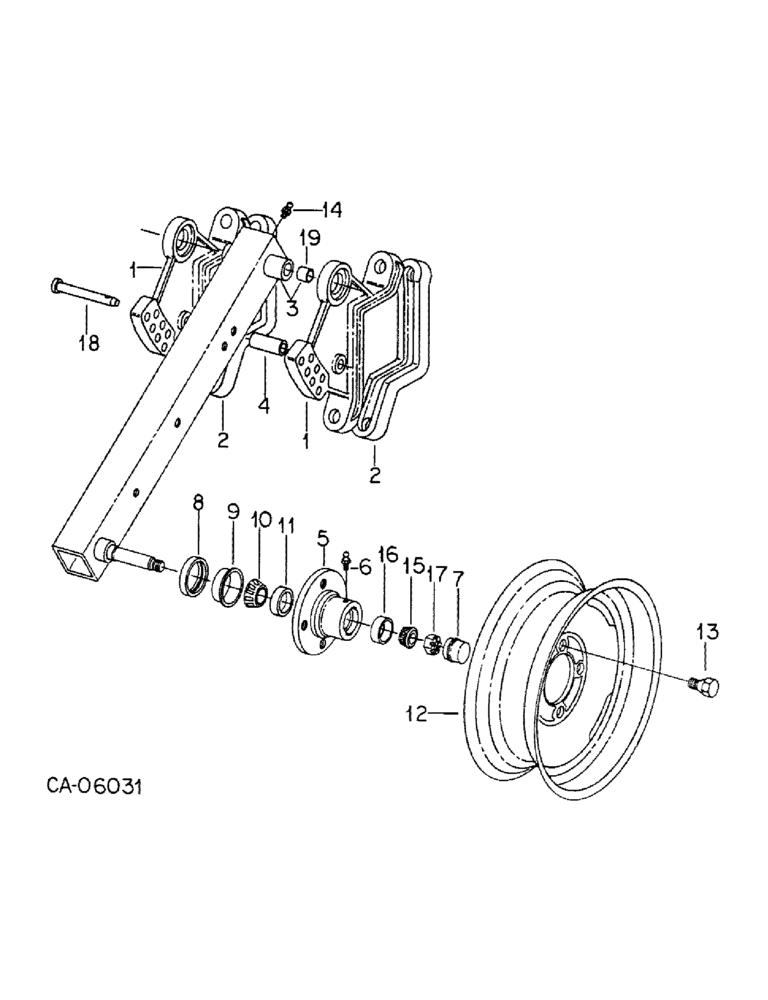

Запчасти Case IH 500 (E-09) - MAIN WHEELS, FOR CENTER AND WING SECTIONS

1

128810C1

BRACKET, wheel, 4 for 8 row narrow, 8 for 8 row wide and 12 row narrow

1шт.

2

133889C1

CAP, 8 row wide and 12 row narrow

8шт.

2

133888C1

CAP, 8 row narrow

4шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5

16шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 16 for 8 row wide and 12 row narrow, 8 for 8 row narrow

1шт.

280954

NUT,3/4"-10, G5

16 for 8 row wide and 12 row narrow, 8 for 8 row narrow 3/4"-10, G5

1шт.

3

100209C1

ARM

ASSY, wheel w/bushing 378699R1, for center section

2шт.

3

125916C1

ARM ASSY, wheel, for wing section

2шт.

21715R1

WASHER

.906 x 1.750 x .105

2шт.

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 SLT hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

4

119824C1

SPACER, gauge wheel, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

20300R1

SCREW,Hex, 3/4"-10 x 6", G5

BOLT, 3/4 x 6 type 5, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

280954

NUT,3/4"-10, G5

2 for 8 row narrow, 4 for 8 row wide and 12 row narrow 3/4"-10, G5

1шт.

5

100213C1

HUB, wheel, for center section

2шт.

5

472220R21

HUB

wheel w/set screw, for wing section

2шт.

443804

SCREW, 1/4-28 x 1/4 stl-ov-pt hdls set

2шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 STR lub, 4 for 8 row wide and 12 row narrow, 2 for 8 row narrow

1шт.

7

663906R1

CAP

hub, for center section

2шт.

7

651194R1

CAP

hub, for wing section

2шт.

8

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

9

472222R1

SLEEVE

oil seal wear, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

10

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING, cone, 4 for 8 row narrow, 6 for 8 row wide and 12 row narrow

1шт.

11

651817R1

BEARING CUP

BEARING, cup, 4 for 8 row narrow, 6 for 8 row wide and 12 row narrow

1шт.

12

481344R91

WHEEL

rim 14 in., for center section, high floatation tire 9.5L x 14

2шт.

12

463036R1

WHEEL (STEERING)

WHEEL, rim 14 in., for wing section, farm implement tire 7.60-14

2шт.

387841R91

VALVE

tire TR-413, 1 per wheel

1шт.

13

340385R1

BOLT

conical, for center section

12шт.

13

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

hub, for wing section

8шт.

14

66584D

FITTING

3/16 drive type STR lub

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING, cone, outer, for wing section, 8 row wide and 12 row narrow

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651814R1

BEARING CUP

BEARING, cup, outer, for wing section, 8 row wide and 12 row narrow

2шт.

17

69442D

NUT

3/4-16 SLT hex., for wing section

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

18

493990R2

PIN

wheel adj, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

520175R1

CLIP

PIN, Q.A. cotter, 2 for 8 row narrow, 4 for 8 row wide and 12 row narrow

1шт.

19

378699R1

BUSHING,22.25mm ID x 25.43mm OD x 22.35mm L

wheel arm

2шт.
