Запчасти Case IH 500 (YA-26) - GRANULAR CHEMICAL HOPPER, FOR HERBICIDE AND INSECTICIDE

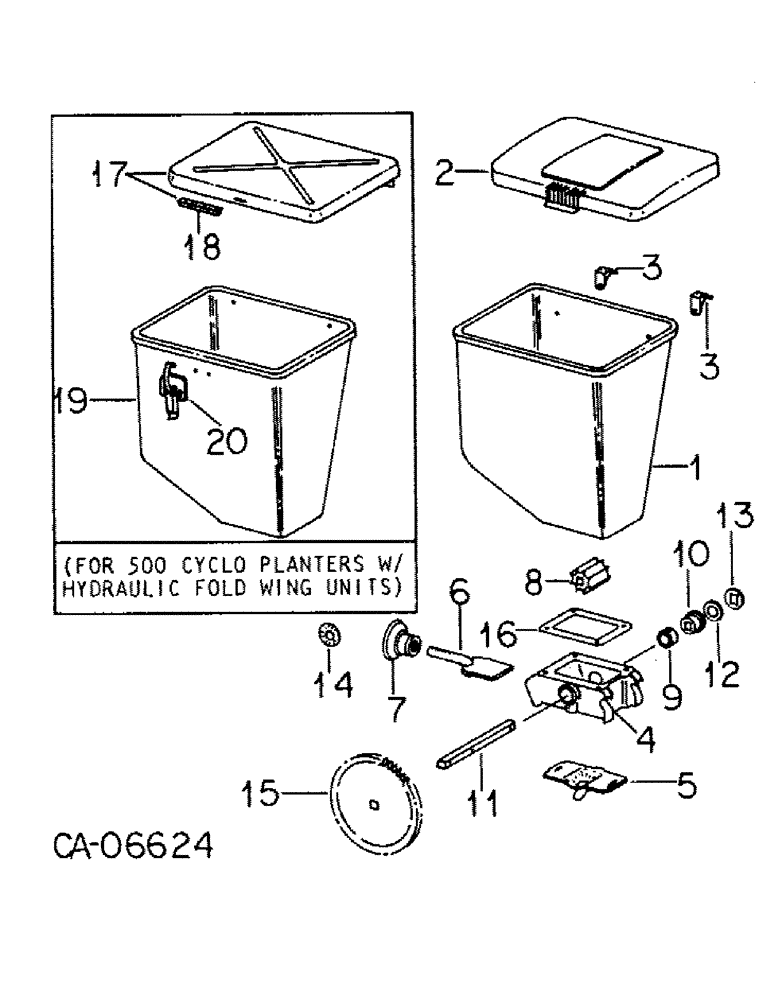

Схема запчастей Case IH 500 - (YA-26) - GRANULAR CHEMICAL HOPPER, FOR HERBICIDE AND INSECTICIDE
5
9
15
7
1
4
13
18
19
3
10
17
8
14
16
2
6
12
11
20
3

Артикул

Название

Примечание

Количество

1

543721R2

HOPPER

35 lb capacity, 1 used for herbicide or insecticide, 2 used for herbicide and insecticide combination

1шт.

2

543722R1

COVER

hopper, 1 per hopper

1шт.

3

543723R1

HINGE

2 per hopper

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .036 C-Z

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

4

543190R2

HOUSING

upper, 1 per hopper

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

450629

SCREW, 1/4-20 x 7/8 znp rec-pan-hd mach

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

21801R1

WASHER

9/32 x 3/4 x 16 ga C-Z

4шт.

548505R1

WASHER

hopper

4шт.

5

59151C1

TUBE

FUNNEL, housing, 1 per hopper, will work for 543187R1 when used with clamp, 274085R91

1шт.

263-5658

SELF-TAP SCREW,Slotted Pan Hd, #10 x 1/2"

SCREW, 10-16 x 1/2 C-Z slt-pan-hd tap.

6шт.

446152

HYD CONNECTOR

13/64 x 15/32 x .036 C-Z

6шт.

6

543188R1

DEFLECTOR

GAUGE, rate control, 1 per hopper

1шт.

7

543186R1

HANDLE

adjusting, 1 per hopper

1шт.

8

543724R1

ROLL

feeding, 1 per hopper

1шт.

9

543725R1

BUSHING

housing, 2 per hopper

1шт.

10

543726R1

BUSHING,1.001" ID x 1.38" OD x 0.76"

drive shaft, 2 per hopper

1шт.

11

539767R1

SHAFT

sprocket, 1 per hopper, 8.4 in. long, built 1971 through 1976

1шт.

11

125636C1

BAR

SHAFT, sprocket, 1 per hopper, 6.6 in. long, built 1977 and since

1шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

12

544048R1

SPRING

drive shaft, 2 per hopper

1шт.

13

544049R1

SPRING WASHER

spring, 2 per hopper

1шт.

14

543728R1

DISC

DISK, handle adjusting, 1 per hopper

1шт.

145189

SCREW, 10-16 x 3/8 C-Z slt-pan-hd tap.

3шт.

15

539766R2

SPROCKET ASSY.

SPROCKET w/HUB, 42 teeth, 1 per hopper, built 1971 through 1976

1шт.

137214

COTTER PIN

1/8" x 1-3/4"

1шт.

15

125638C1

SPROCKET ASSY.

SPROCKET, 42 teeth, 1 per hopper, unit mounted only, built 1977 and since

1шт.

16

57768C1

GASKET

hopper, 1 per hopper

1шт.

17

133920C1

COVER ASSY, hopper, 1 per hopper

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

2шт.

23039R1

WASHER

.203 x .875 x .042

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

18

133941C2

SEAL

hopper cover, use 43.8 in. from a 33 ft roll marked, 133941C1

1шт.

19

100447C1

HOPPER, 35 lb capacity, 1 used for herbicide or insecticide, 2 used for herbicide and insecticide combination

1шт.

20

669184R1

CLAMP

ASSY, hopper cover, 1 per hopper

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

no. 10 x 1/2 znp p/hds mach

2шт.

23039R1

WASHER

.203 x .875 x .042

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

Выбрано товаров: 44
