Запчасти Case IH 500 (YA-07) - HOPPER AND RELATED PARTS, FOR ALL 6 ROW PLANTERS AND 4 ROW CONVERTIBLE TO 6 ROW NARROW PLANTERS

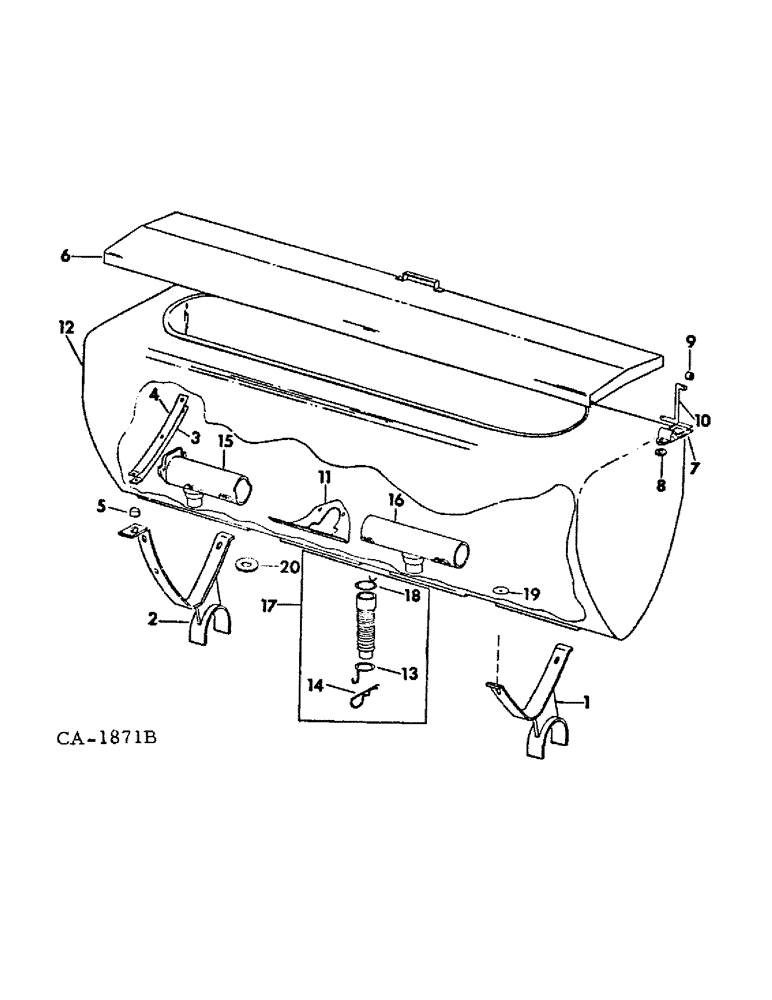

Схема запчастей Case IH 500 - (YA-07) - HOPPER AND RELATED PARTS, FOR ALL 6 ROW PLANTERS AND 4 ROW CONVERTIBLE TO 6 ROW NARROW PLANTERS
9
10
3
13
1
17
18
14
5
7
2
12
16
6
11
20
15
19
8

Артикул

Название

Примечание

Количество

1

546879R1

SADDLE

ASSY, hopper center

2шт.

2

546883R1

SADDLE

ASSY, hopper end

4шт.

3

546885R1

SUPPORT

LINER, hopper

4шт.

4

546886R1

PAD, hopper

4шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 znd hex-hd mach

22шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

24шт.

120384

WASHER,1/2"

LOCK, 1/2"

24шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z, 16 for 6 row narrow and 4 row convertible to 6 row narrow, 20 for 6 row wide

1шт.

5

547448R1

SPACER

2шт.

6

542529R1

COVER

LID ASSY, hopper

2шт.

7

542534R1

HINGE

lid

4шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 znd hex-hd mach

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

619866R1

WASHER, 13/32 x 1 x 16 ga C-Z

16шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

542535R1

GASKET

hinge bracket

8шт.

9

542536R1

SPACER

hinge arm

4шт.

10

542537R1

ROD

hinge

4шт.

648002

KNIFE

1/8" x 3/4"

8шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

8шт.

11

542340R1

COVER

hopper outlet

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 znd hex-hd mach

16шт.

120376

NUT,5/16"-18, G5

16шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

16шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

32шт.

12

542538R2

HOPPER

ASSY

2шт.

13

626441R1

CLIP

hose lower

6шт.

14

610784R1

SPLIT PIN/SAFETY PIN,2.4mm OD x 60.345mm OAL

PIN, quick attachable cot.

6шт.

15

483441R2

HOUSING

auger feed, 4 for 6 row narrow and 4 row convertible to 6 row narrow, 2 for 6 row wide

1шт.

15

548793R1

HOUSING, auger feed, 2 for 6 row wide

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

24шт.

120376

NUT,5/16"-18, G5

24шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

24шт.

134238R1

WASHER

11/32 x 1 x 16 ga C-Z

24шт.

16

480099R2

HOUSING

auger feed center

2шт.

17

492853R91

SET

HOSE PACKAGE, 30 corrugations, consists of ref nos 13, 14 & 18

6шт.

18

860200R1

HOSE CLAMP,#36, 2 1/4", Spring

CLAMP, no. 36 type hose upper

6шт.

19

460908R1

WASHER

17/32 x 1-1/2 x 11 ga C-Z, 16 for 6 row narrow and 4 row convertible to 6 row narrow, 14 for 6 row wide

1шт.

20

480100R1

WASHER

housing plug, 4 for 4 row convertible to 6 row narrow

1шт.

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16 x 2 znd hex-hd mach

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Выбрано товаров: 43
