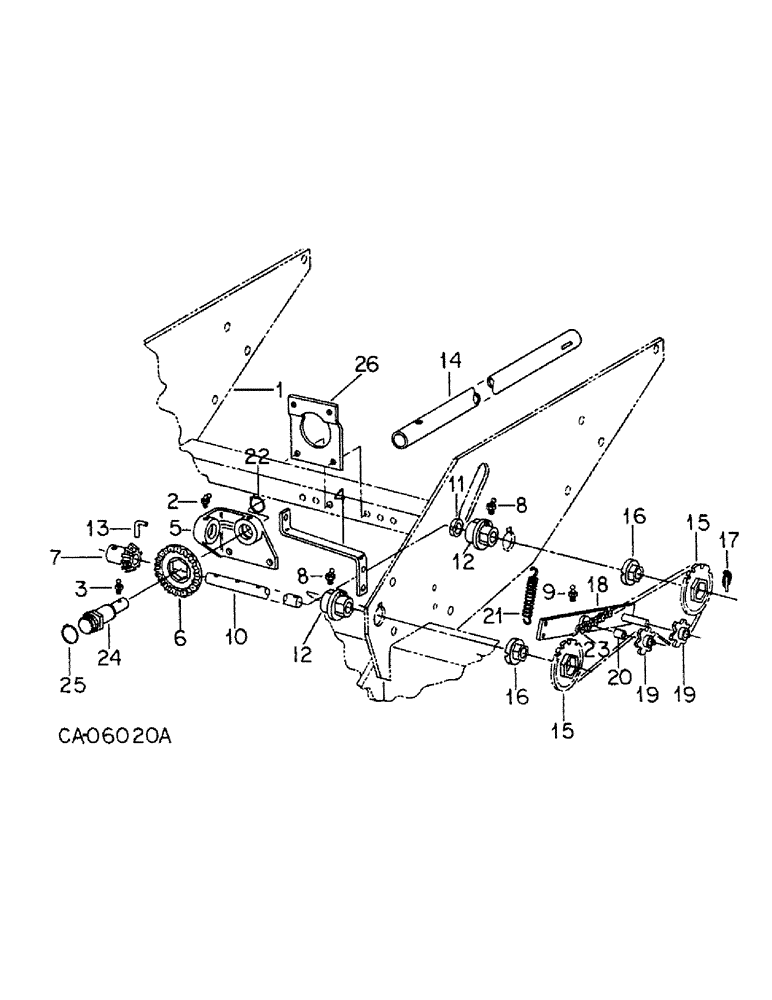

Запчасти Case IH 500 (E-07) - CENTER DRIVE

1

SECTION ASSY, center, refer to main frame unit

1шт.

2

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 x 90 deg STR lub

1шт.

3

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 PTF C 90 deg lub

1шт.

4

546991R1

BRACKET, sprocket storage

1шт.

5

546529R2

BOX

GEAR BOX

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4 type 5, 4 for 8 row narrow, 6 for 12 row narrow and 8 row wide

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, , 4 for 8 row narrow, 6 for 12 row narrow and 8 row wide 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

4 for 8 row narrow, 6 for 12 row narrow and 8 row wide 3/8"-16, G5

1шт.

6

128763C1

PINION

GEAR, drum drive 24T

1шт.

7

128760C1

PINION

drum drive

1шт.

8

19700R91

FITTING

3/16 x 45 deg drive lub

1шт.

9

20691R1

FITTING,3/16" x .47" lg, Drive

3/16 STR drive lub

1шт.

10

141397C1

SHAFT, gear box, replaces 113217C1

1шт.

11

59065C1

COLLAR

use w/seed flow monitor unit

1шт.

12

481812R11

BEARING ASSY

w/BUSHING

1шт.

21761R1

WASHER

.906 x 1.500 x .054

1шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

1шт.

21632R1

COTTER PIN

PIN, 3/16 x 1 C-Z self-open cot

1шт.

13

546531R1

PIN

drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

14

100248C1

COUPLING, drum drive, 8 row narrow

1шт.

14

100399C1

COUPLING, drum drive, 12 row narrow and 8 row wide

1шт.

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, 1/4 x 1.812 pln hd type 5

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

15

546432R1

SPROCKET ASSY.

SPROCKET, 16T, Serial Range: 1977-1978

1шт.

15

134240C1

SPROCKET ASSY.

SPROCKET, 16T, 1978 and since

1шт.

15

546433R1

SPROCKET ASSY.

SPROCKET, 14T, Serial Range: 1977-1978

1шт.

15

134238C1

SPROCKET ASSY.

SPROCKET, 14T, 1978 and since

1шт.

15

546515R1

SPROCKET ASSY.

SPROCKET, 18T, Serial Range: 1977-1978

1шт.

15

134242C1

SPROCKET ASSY.

SPROCKET, 18T, 1978 and since

1шт.

15

546516R1

SPROCKET ASSY.

SPROCKET, 15T, Serial Range: 1977-1978

1шт.

15

134239C1

SPROCKET ASSY.

SPROCKET, 15T, 1978 and since

1шт.

15

546518R1

SPROCKET ASSY.

SPROCKET, 11T, Serial Range: 1977-1978

1шт.

15

134236C1

SPROCKET ASSY.

SPROCKET, 22T, 1978 and since

1шт.

15

134235C1

SPROCKET ASSY.

SPROCKET, 10T, replaces 546514R1

1шт.

15

134234C1

SPROCKET ASSY.

SPROCKET, 8T, replaces 546517R1

1шт.

15

134237C1

SPROCKET ASSY.

SPROCKET, 12T, replaces 484197R2

1шт.

15

134241C1

SPROCKET ASSY.

SPROCKET, 17T, replaces 484196R2

1шт.

16

547955R1

HUB

sprocket drive

2шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

17

373025R91

PIN ASSY.

PIN, QA snap

1шт.

18

100276C1

PLATE

ASSY, chain tightener

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22942R1

PIN, 1/4 x 3/4 cot.

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

.531 x 1.250 x .054

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

100272C1

BOLT

1шт.

19

472344R3

SPROCKET

6T idler

2шт.

20

100273C1

BUSHING

1шт.

21

PO7

SPRING

1шт.

22

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.

23

CHAIN, drive, 53 links for 8 row narrow, 57 links for 12 row narrow and 8 row wide, use links of 1 in. ext. pitch agricultural roller chain from a 10 ft roll marked 569088R91, one connecting link 457113R91 and one offset link 457114R91

1шт.

24

128806C1

SHAFT

gear drum drive

1шт.

608085R1

WASHER

1.406 x 2.000 x .054 (as required)

1шт.

21794R1

WASHER

1.406 x 2.000 x .033

2шт.

22481R1

WASHER

1.406 x 2.250 x .054

2шт.

20644R1

WASHER

1.656 x 2.250 x .054

1шт.

Q3858

WASHER

1.406 x 2.250 x .033 pln

1шт.

25

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

26

100562C1

PLATE, gear box mtg, 12 row narrow and 8 row wide

1шт.
