(E-06) - SUB TOOL BAR, FOR CENTER UNITS, FOR 8 ROW NARROW AND 12 ROW NARROW

Запчасти Case IH 500 (E-06) - SUB TOOL BAR, FOR CENTER UNITS, FOR 8 ROW NARROW AND 12 ROW NARROW

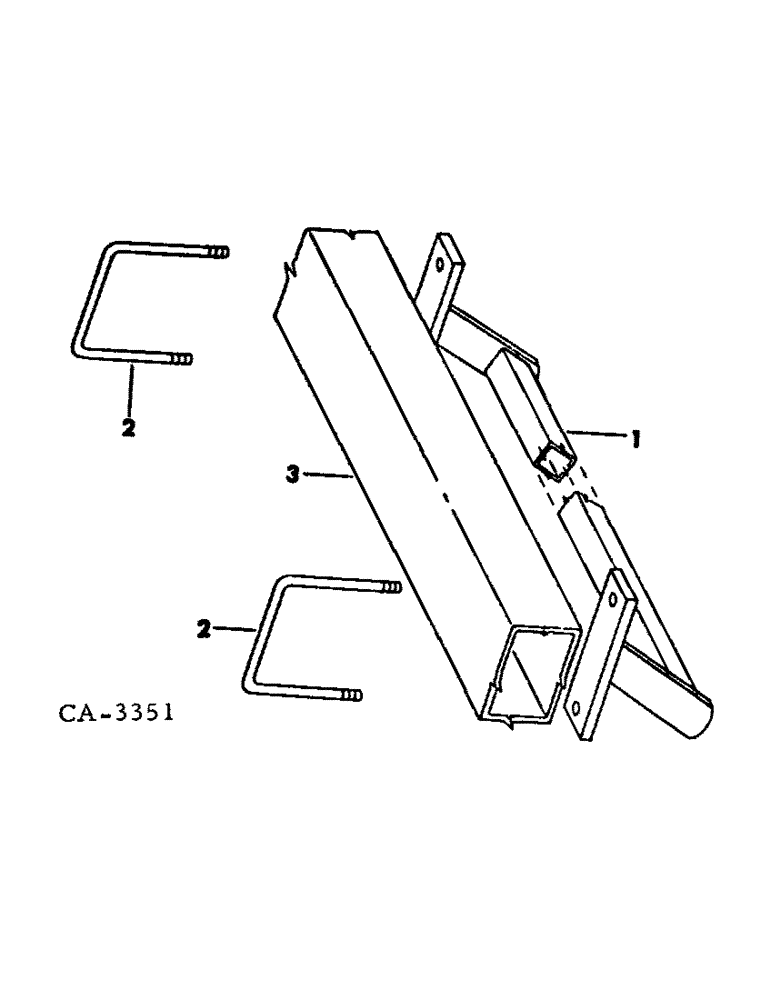

Схема запчастей Case IH 500 - (E-06) - SUB TOOL BAR, FOR CENTER UNITS, FOR 8 ROW NARROW AND 12 ROW NARROW
2
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

119731C1

BAR ASSY, sub, 12 row narrow

1шт.

1

125889C1

BAR ASSY, sub, 8 row narrow

1шт.

2

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

3/4 x 12 row narrow

2шт.

2

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, 3/4, 8 row narrow

2шт.

280954

NUT,3/4"-10, G5

4шт.

3

SECTION ASSY, center, refer to main frame unit

1шт.
