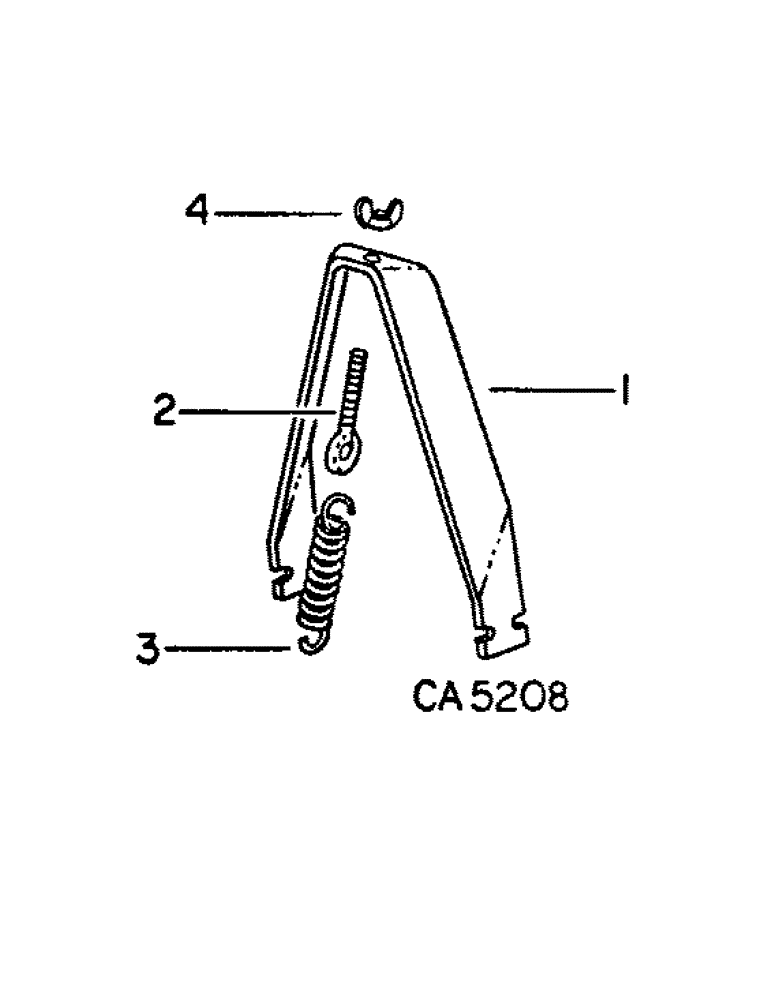

Запчасти Case IH 500 (E-58) - PRESS WHEEL SPRING ATTACHMENT, STAGGERED, QUANTITIES SHOWN ARE PER ROW

1

113440C1

SUPPORT, spring attaching, bracket

1шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2 crg type 1

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

4шт.

21403R1

WASHER

.406 x 1.000 x .120

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

18497R1

BOLT,Hex, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 type 1

1шт.

2

113441C1

BOLT

EYEBOLT, spring

1шт.

3

23084S

SPRING

extension

1шт.

4

129-419

WING NUT,5/16"-18

NUT, 5/16-18 CDP type A wing

1шт.
