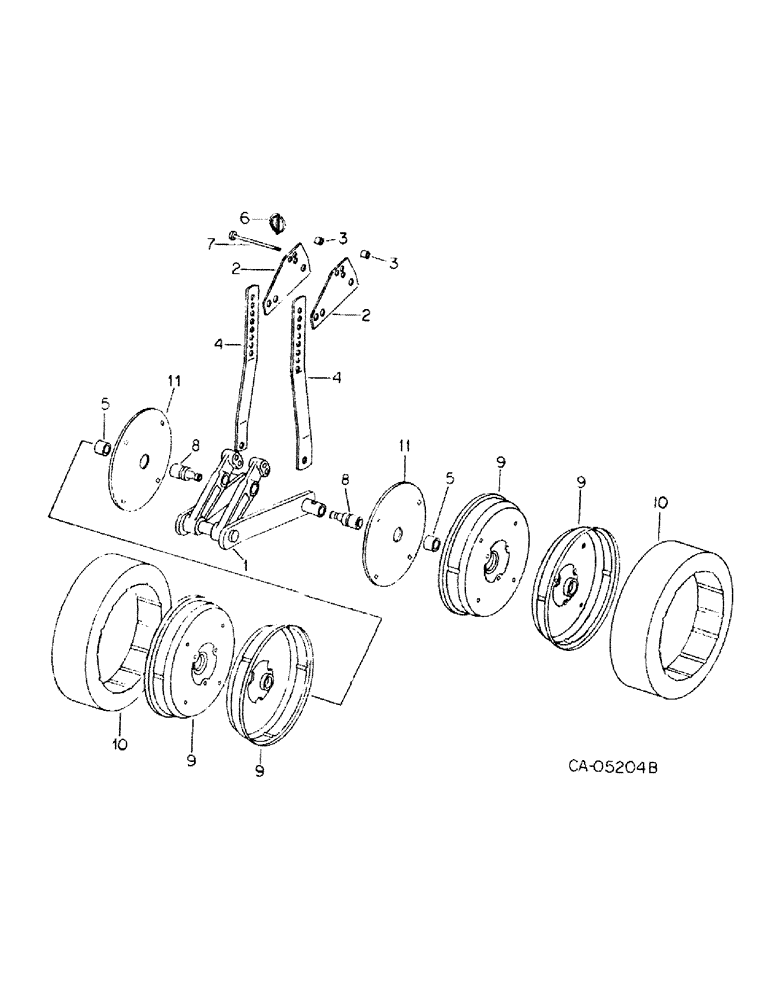

Запчасти Case IH 500 (E-57) - GAUGE WHEEL ATTACHMENT, QUANTITIES SHOWN ARE PER ROW

1

137333C1

FRAME ASSY, gauge wheel

1шт.

21216R1

BOLT, 5/8 x 4-1/4 type 1

2шт.

473211R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 hex lock

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

609438R1

PIN

3/8 x 3.562 pln hd type 1

1шт.

589068R1

WASHER

.656 x 1.250 x .090

2шт.

648002

KNIFE

1/8" x 3/4" set

2шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8 x 7/16 znp o/pt hdl/hs

1шт.

2

113373C1

BRACKET, arm attaching support

2шт.

3

472104R1

BUSHING

press wheel frame

2шт.

21216R1

BOLT, 5/8 x 4-1/4 type 1

2шт.

4

137332C1

BAR, gauge wheel arm

2шт.

5

128703C1

SPACER

shield, 1978 and below

8шт.

5

149218C1

CLIP

spring, 1979 and since

1шт.

6

479696R91

AXLE PIN

PIN ASSY, linch snap

1шт.

7

113365C2

PIN

gauge wheel

1шт.

8

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, gauge wheel

2шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8 x 7/16 znp o/pt hdl/hs set

2шт.

9

526768R1

WHEEL

RIM, gauge wheel

4шт.

18676R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 2

BOLT, 5/16 x 2-1/4 crg type 1

8шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 type 1

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

10

516492R1

TYRE/TIRE

TIRE, zero pressure 4 x 12

2шт.

11

128702C1

PLATE

shield

2шт.

Ref #11 - (Redesigned) Must use 149218C1 Clips with this 07/03/96

1шт.
