Запчасти Case IH 500 (E-54) - ASSIST WHEELS ATTACHMENT, FOR 8 ROW WIDE, 8 ROW NARROW AND 12 ROW NARROW

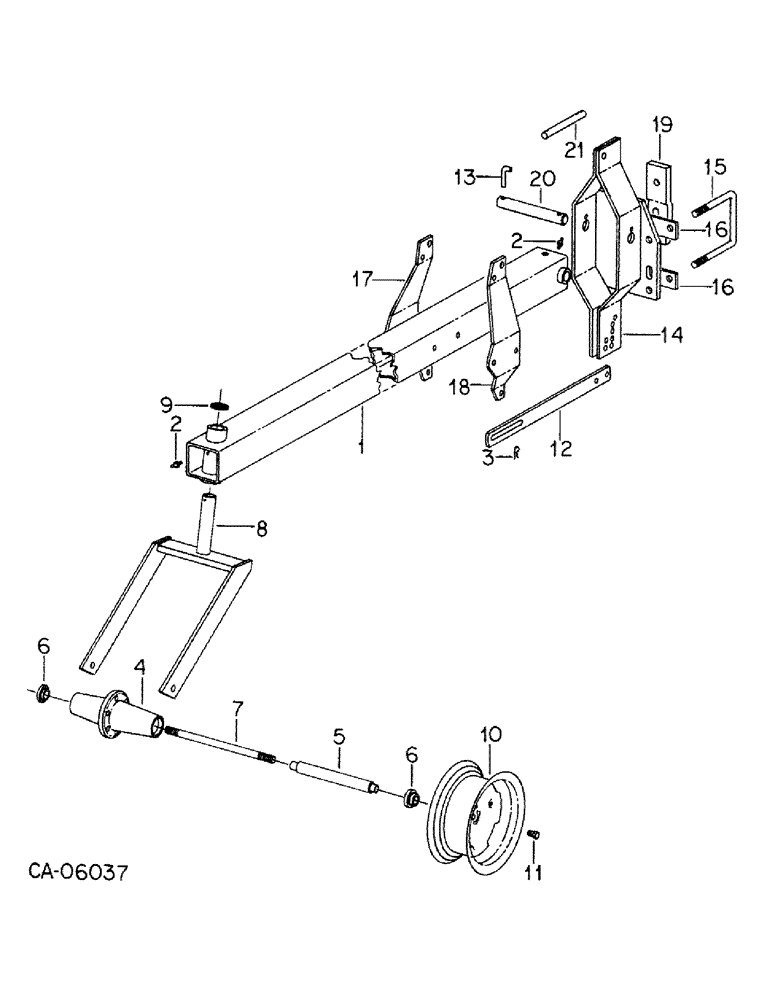

Схема запчастей Case IH 500 - (E-54) - ASSIST WHEELS ATTACHMENT, FOR 8 ROW WIDE, 8 ROW NARROW AND 12 ROW NARROW
2
6
20
9
2
17
3
16
13
21
7
16
8
11
6
19
10
14
18
4
15
5
12

Артикул

Название

Примечание

Количество

1

113206C1

TUBE

ASSY, assist wheel

2шт.

2

66584D

FITTING

3/16 drive type STR lub

4шт.

3

520175R1

CLIP

PIN, 3/16 Q.A. cot.

4шт.

4

541757R1

HUB

wheel

2шт.

5

541758R1

TUBE

SPACER

2шт.

6

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

591715R1

WASHER

1.031 x 1.500 x .054

4шт.

7

541759R2

ROD

axle

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

8

125563C2

ARM ASSY.

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

9

462997R1

WASHER

wear

4шт.

10

481344R91

WHEEL

rim 14 in., high floatation tire 9.5L x 14

2шт.

387841R91

VALVE

tire TR-413

1шт.

11

340385R1

BOLT

conical

12шт.

12

100403C1

LINK, assist wheel

2шт.

392194R1

HEADED PIN,3/4" x 2 3/8"

PIN, 3/4 x 2.375 pln hd type 5

4шт.

13

491601R2

PIN

pivot lock

2шт.

14

113199C1

BRACKET ASSY, assist wheel pivot

2шт.

15

58152C1

BOLT

U-BOLT, for 12 row narrow and 8 row wide

2шт.

15

541645R1

U-BOLT,U, 1" - 8 x 7.14"

for 8 row narrow

2шт.

21929R1

NUT,1"-8, G8

1 type 8

4шт.

16

125706C1

BAR

filler

4шт.

17

113209C1

SUPPORT, LH

1шт.

18

113210C1

SUPPORT, RH

1шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

3/4 x 7 type 5

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

3/4 x 2 type 5

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

19

125515C1

SUPPORT

tool bar, 12 row narrow and 8 row wide

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

21929R1

NUT,1"-8, G8

1 type 8

4шт.

20932R1

BOLT,Hex, 1" - 8 x 10", Gr 5

SCREW, 1 in., 8 x 10 cap

4шт.

20

100054C1

PIN

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

21

125516C1

PIN

cyl anchor, 8 row narrow only

1шт.

Выбрано товаров: 37
