Запчасти Case IH 500 (E-04) - MAIN FRAME

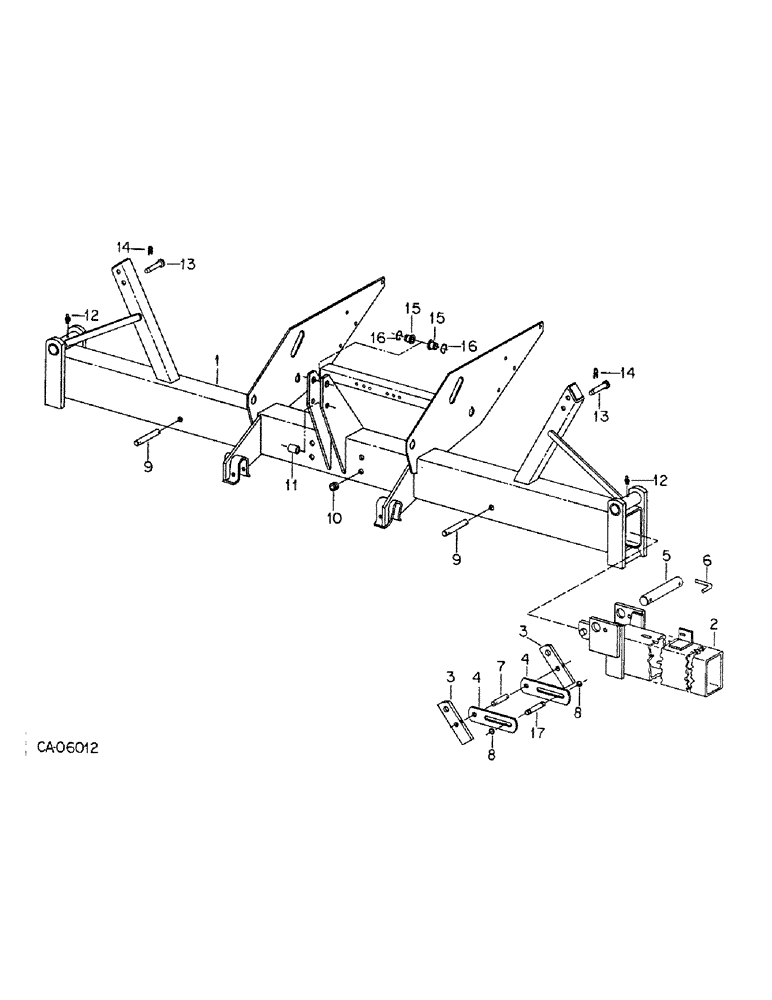

Схема запчастей Case IH 500 - (E-04) - MAIN FRAME
14
4
8
3
10
3
1
12
17
12
16
4
13
6
15
15
7
8
2
11
14
9
9
13
5
16

Артикул

Название

Примечание

Количество

1

100264C2

SECTION ASSY, center, 7 x 7, 8 row wide

1шт.

1

100338C2

SECTION ASSY, center, 7 x 7, 12 row narrow

1шт.

1

125897C2

SECTION ASSY, center, 5 x 7, 8 row narrow

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5, 4 used for 8-row wide and 8-row narrow, 8 used for 12-row narrow, for module mounting

1шт.

20601R1

WASHER

.531 x 1.250 x .105, 4 used for 8-row wide and 8-row narrow, 8 used for 12-row narrow, for module mounting

1шт.

120384

WASHER,1/2"

LOCK, , 4 used for 8-row wide and 8-row narrow, 8 used for 12-row narrow, for module mounting 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 4 used for 8-row wide and 8-row narrow; 8 used for 12-row narrow, for module mounting 1/2"-13, G5

1шт.

57657C1

BOLT, pump storage, special, 8 row wide, 12-row narrow and 8-row narrow

2шт.

589068R1

WASHER

.656 x 1.250 x .090, 8 row wide, 12-row narrow and 8-row narrow

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 8 row wide, 12-row narrow and 8-row narrow 5/8"

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5, 8 row wide, 12-row narrow and 8-row narrow

2шт.

520175R1

CLIP

PIN, quick attachable cot., 8 row wide, 12-row narrow and 8-row narrow

2шт.

2

100265C1

SECTION ASSY, wing, 7 x 7, 8 row wide

1шт.

2

113495C1

SECTION ASSY, wing, 7 x 7, 12 row narrow

1шт.

2

125887C1

SECTION ASSY, wing, 5 x 7, 8 row narrow

1шт.

3

113473C1

SUPPORT

LATCH, hinge, 8 row wide and 12 row narrow

4шт.

3

64804C1

LATCH

hinge, 8 row narrow

2шт.

4

113307C1

LINK

cyl hold up

4шт.

5

100326C1

PIN

hinge, 8 row wide and 12 row narrow

2шт.

5

100054C1

PIN

hinge, 8 row narrow

2шт.

6

491601R2

PIN

pivot lock

2шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 pln cot

2шт.

7

100324C2

PIN

cyl and latch, 8 row wide and 12 row narrow

2шт.

26569R1

BOLT

BOLT, 1/4 x 2-3/4 PHC type 8

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

608700R1

WASHER

1.281 x 2.000 x .054

4шт.

7

62926C1

PIN

cyl and stop, 8 row narrow

4шт.

22440R1

WASHER

1.031 x 1.750 x .027

8шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, , 8 row wide and 12 row narrow #125, Ext

4шт.

8

758318C1

SNAP RING,#98, Ext

Ring, Snap, , 8 row narrow #98, Ext

8шт.

9

125516C1

PIN

cyl anchor, 8 row wide and 12 row narrow

2шт.

9

62927C1

PIN

cyl anchor, 8 row narrow

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.

10

57337C1

GROMMET, hose, 2 for 8 row wide, 4 for 12 row narrow

1шт.

10

113038C1

GROMMET, hose, 8 row narrow

2шт.

11

462425R1

SPACER

mast, 8 row narrow and 8 row wide

1шт.

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4 type 5 , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

12

25391R1

FITTING

1/4-28 SAE lt STR lub

2шт.

13

100400C1

PIN

pointed, 8 row wide and 12 row narrow

2шт.

13

490048R1

PIN

locking, 8 row narrow

2шт.

14

517843R1

COTTER PIN

PIN, Q.A. cot.

2шт.

15

541781R1

BUSHING

mast, 8 row narrow and 8 row wide

2шт.

16

152450R1

SNAP RING,#125, Ext

Ring, Snap, , 8 row narrow and 8 row wide #125, Ext

2шт.

17

100323C1

PIN

hold-up, 8 row wide and 12 row narrow

2шт.

Выбрано товаров: 47
