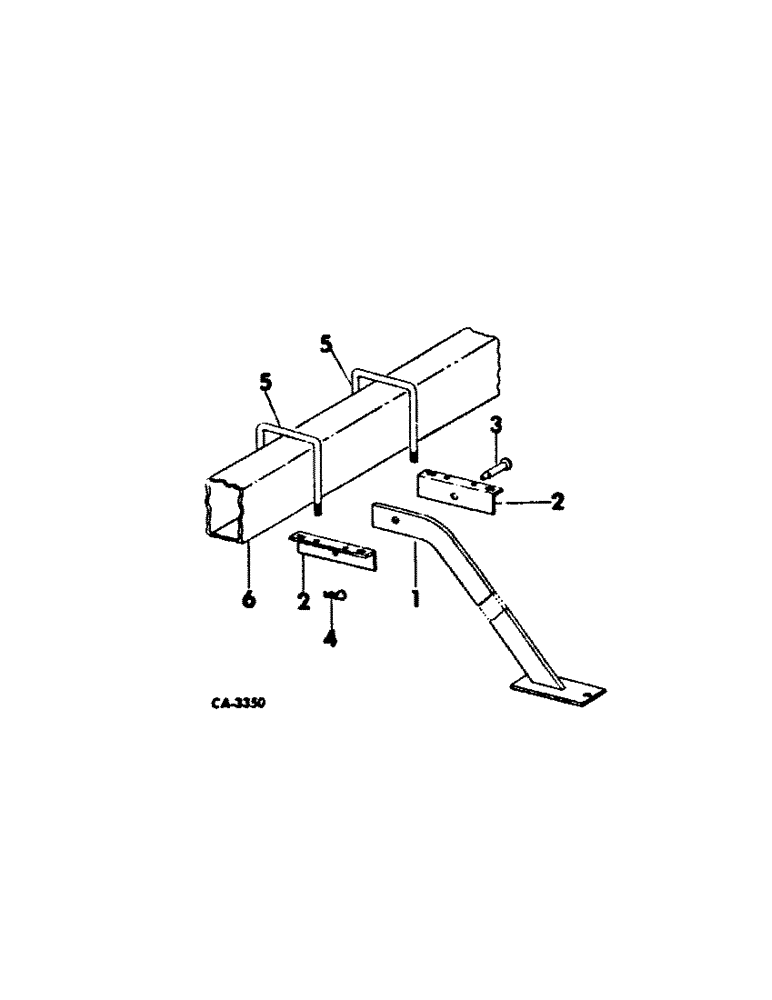

Запчасти Case IH 500 (E-49) - SUPPORT STAND, FOR 8 ROW NARROW AND 8 ROW WIDE

1

544011R11

STAND

ASSY, 5 x 7 bar

1шт.

2

58300C2

ANGLE, support, 2 per stand

1шт.

3

21670R1

HEADED PIN,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 C-Z std-hd, 1 per stand

1шт.

4

520175R1

CLIP

PIN, 3/16 quick attachable cot., 1 per stand

1шт.

5

1250813C1

U-BOLT

5/8 in., 2 per stand, for 8 row wide

1шт.

5

542404R1

BOLT,U, 5/8" - 11 x 8.12"

U-BOLT, 5/8 in., 2 per stand, for 8 row narrow

1шт.

131016

WASHER

21/32 x 1-5/16 x 16 ga C-Z

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

6

TOOL BAR, refer to main frame tool bar unit

1шт.
