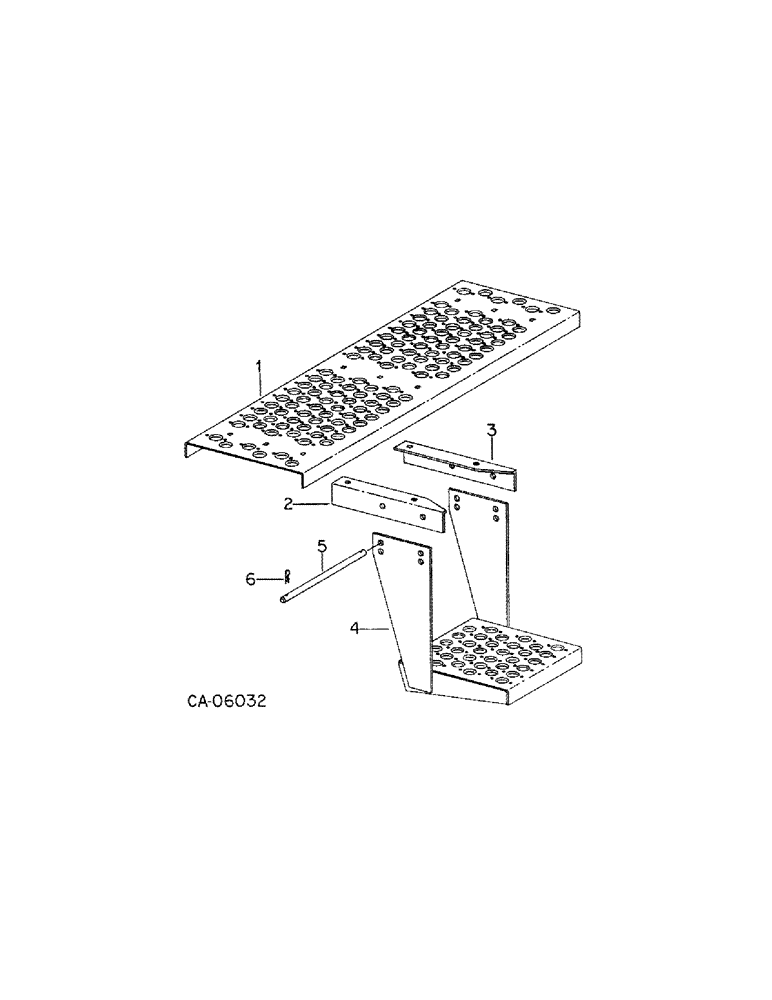

Запчасти Case IH 500 (E-48) - PLATFORM AND STEP ATTACHMENT, FOR USE W/ASSIST WHEEL, FOR 8 ROW NARROW & 8 ROW WIDE, 12 ROW NARROW

1

547025R1

PLATFORM

1шт.

2

139962C1

ANGLE, support LH

1шт.

3

139963C1

ANGLE, support RH

1шт.

27466R1

BOLT,Short NK, 1/2"-13 x 6 1/2", G5

1/2 x 6-1/2 crg type 5

4шт.

23300R1

SQ HOLE WASHER,17/32" x 1 1/2" x .120", Sq Hole

.531 x 1.500 x .105 sq/h

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

4

58193C2

STEP ASSY

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4 type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

58149C1

PIN, step pivot

1шт.

22004R1

LOCK PIN,3/16" x 2", Slotted

Pin, 3/16" x 2", Slotted

1шт.

6

520175R1

CLIP

PIN, 3/16 Q.A. cot.

1шт.
