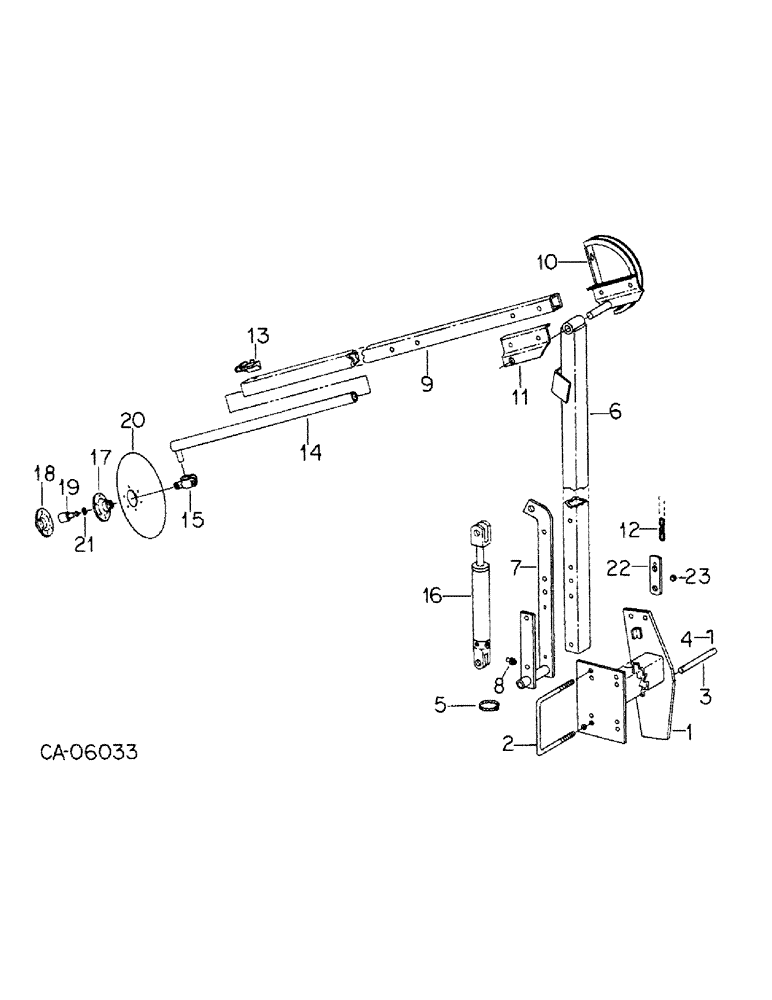

Запчасти Case IH 500 (E-46) - HYDRAULIC MARKER ATTACHMENT

1

100234C3

BRACKET

ASSY, marker left

1шт.

1

100235C3

BRACKET

ASSY, marker right

1шт.

2

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

8 row narrow

4шт.

2

1250813C1

U-BOLT

8 row wide and 12 row narrow

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

8шт.

3

100573C1

PIN

marker pivot

2шт.

21761R1

WASHER

.906 x 1.500 x .054

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

4

471323R1

LINCH PIN

PIN, pivot lock 3/8

2шт.

Q3553

PIN

1/2 x 5 znd std hd

2шт.

520175R1

CLIP

PIN. Q.A. cotter

8шт.

5

306132C1

CABLE TIE,14.5" L

STRAP, tie

4шт.

6

140797C92

TUBE,592 mm Length

w/PRODUCT GRAPHIC, 113116C1, 8 row wide

2шт.

6

140795C92

TUBE

w/PRODUCT GRAPHIC, 113116C1, 12 row narrow

2шт.

6

140796C92

TUBE

w/PRODUCT GRAPHIC, 113116C1, 8 row narrow

2шт.

7

119915C1

ARM

ASSY, marker LH

1шт.

7

119916C1

ARM

ASSY, marker RH

1шт.

189316

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 5

1/2 x 4-1/4 type 5

2шт.

18714R1

BOLT,Short NK, 1/2"-13 x 5", G2

1/2 x 5 crg type 1

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

8

66584D

FITTING

3/16 STR lub drive

2шт.

9

100376C1

TUBE

marker, 8 row wide and 12 row narrow

2шт.

9

125905C3

FRAME

TUBE, marker, 8 row narrow

2шт.

10

100219C1

PULLEY

BRACKET ASSY, pulley left

1шт.

10

100220C1

PULLEY

BRACKET ASSY, pulley right

1шт.

11

113041C1

SUPPORT

BRACKET, pivot support w/LH pulley

1шт.

11

100222C1

SUPPORT

BRACKET, pivot support w/RH pulley

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

668752R1

WASHER

.906 x 1.250 x .054

2шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

12

489767R92

CHAIN (AG)

CHAIN, 8 row wide and 12 row narrow

2шт.

12

493952R1

CHAIN (AG)

CHAIN, 8 row narrow

2шт.

13

119983C1

BLOCK

2шт.

20080R1

SET SCREW

1/2 x 1-1/4 znp sq-hd c/pt set

2шт.

14

119950C1

TUBE

ASSY, 8 row wide

2шт.

14

100226C1

TUBE

ASSY, 12 row narrow

2шт.

14

125901C1

TUBE

ASSY, 8 row narrow

2шт.

22090R1

HEADED PIN

PIN, 3/4 x .875 hd type 1

2шт.

15

478032R1

CLAMP

axle

2шт.

466971R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT, 1/2 x 2 crg type 5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

128228

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW, 3/8 x 3/4 znp sq/hd c/pt set

2шт.

16

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2.438 hd type 1

4шт.

17

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk brg inner

2шт.

18

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk brg outer

2шт.

19

478034R91

BEARING ASSY,30mm OD x 82.53mm L

BEARING ASSY, ball

2шт.

20

469372R1

DISC,13"

DISK, 13 in.

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

21

480679R1

WASHER

dirt seal felt

2шт.

22

125789C1

BAR

chain pivot, link

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 crg type 1

2шт.

NLS

NO LONGER SERVICED

.531 x 1.062 x .074

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 x 1-1/4 type 1

2шт.

20600R1

WASHER

.281 x .750 x .105

2шт.

480891R1

NUT

1/4-20 anp flange lock

2шт.

23

546587R1

SPACER

BUSHING

2шт.
