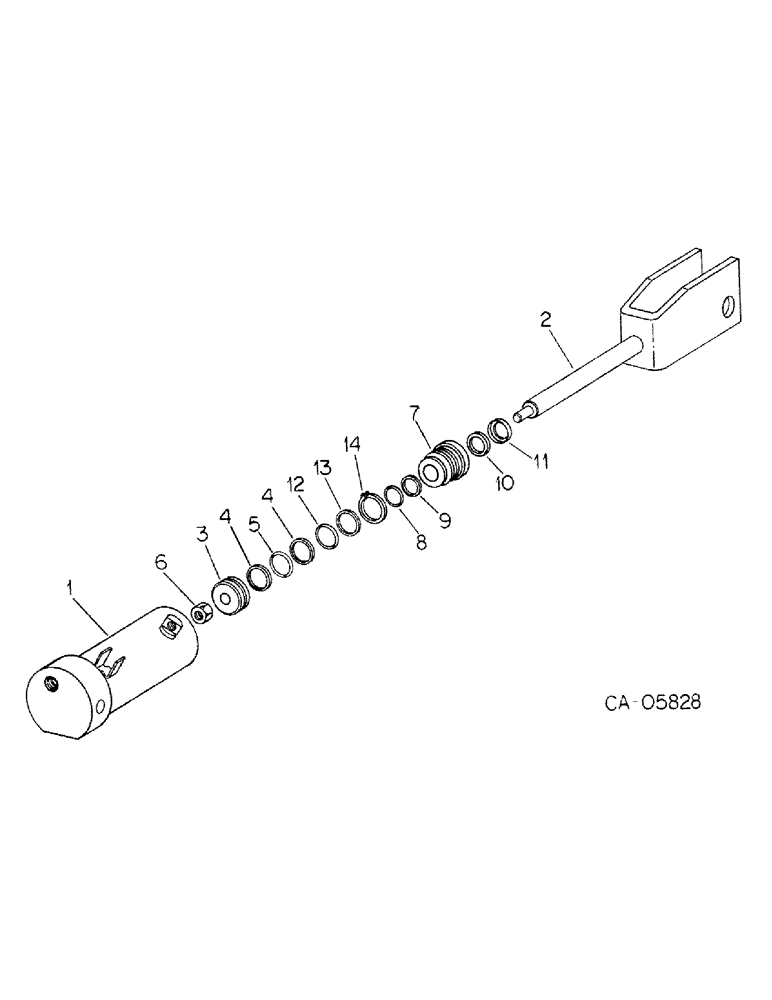

Запчасти Case IH 500 (E-45) - HYDRAULIC CYLINDER, 3 X 12 DOUBLE ACTING

108606C91

CYLINDER

ASSY, 3 x 12 in. double acting hydraulic

1шт.

1

BODY ASSY, cylinder, order cylinder assy (NSS)

1шт.

2

62586C1

ROD

ASSY, piston

1шт.

3

386425R1

PISTON, cylinder

1шт.

4

WASHER, backup, piston, order kit, 62581C91 (NSS)

2шт.

5

O-RING, 2-5/8 x 3 x 3/16 CL 6 piston, order kit, 62581C91 (NSS)

1шт.

6

9412368

NUT

3/4-16 type 8 PHC hex lock

1шт.

7

62589C1

HEAD

front

1шт.

8

O-RING, 1-1/4 x 1-1/2 x 1/8 CL 6, order kit, 62581C91 (NSS)

1шт.

9

WASHER, back-up, rod seal, order kit, 62581C91 (NSS)

1шт.

10

WASHER, piston rod wiper, order kit, 62581C91 (NSS)

1шт.

11

WASHER, piston rod wiper retainer, order kit, 62581C91 (NSS)

1шт.

12

O-RING, 2-k5/8 x 3 x 3/16 CL 6, front head seal, order kit, 62581C91 (NSS)

1шт.

13

WASHER, back-up, front head, order kit, 62581C91 (NSS)

1шт.

14

RING, front head retaining, order kit, 62581C91 (NSS)

1шт.

62581C91

SEAL KIT

hydraulic cylinder service, consists of ref nos 4, 5, 8, 9, 10, 11, 12, 13 and 14

1шт.
