Запчасти Case IH 500 (E-44) - HYDRAULIC CYLINDER, 3 X 8 IN. SINGLE ACTING

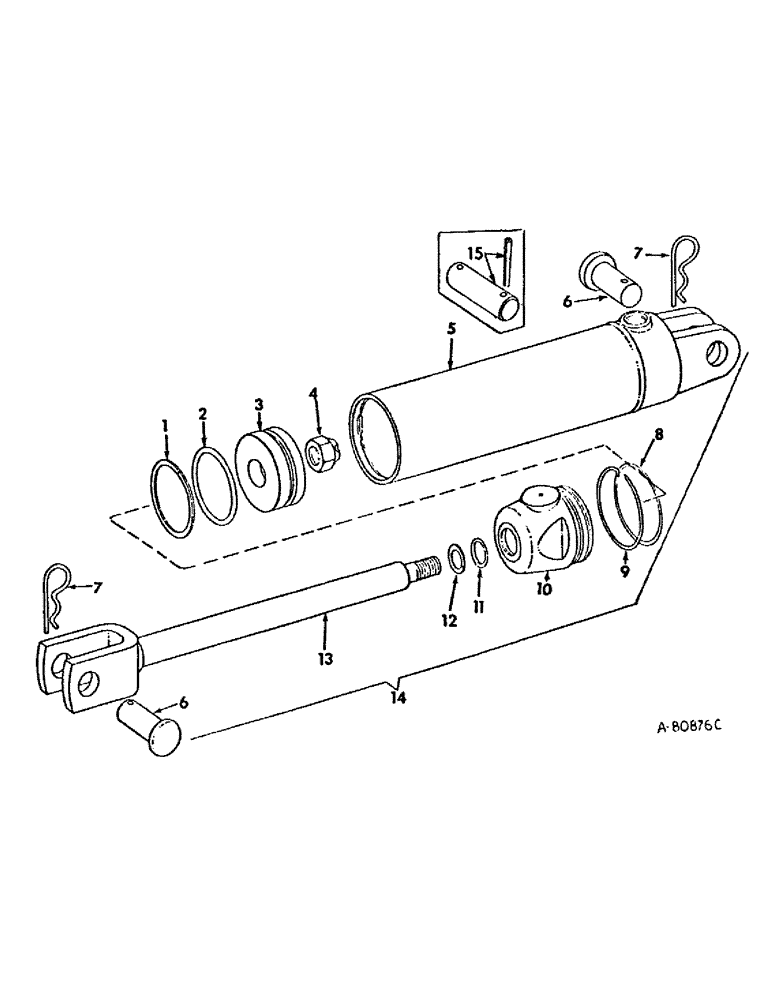

Схема запчастей Case IH 500 - (E-44) - HYDRAULIC CYLINDER, 3 X 8 IN. SINGLE ACTING
5
3
6
6
10
14
11
9
12
2
1
7
8
13
15
7
4

Артикул

Название

Примечание

Количество

1

WASHER, piston head backup, order kit, 386687C93 (NSS)

1шт.

2

O-RING, 2-5/8 x 3 x 3/16, piston head, order kit, 386687R931

1шт.

3

381869R1

PISTON

HEAD, piston

1шт.

4

385020R1

NUT

3/4-16 hex. lock

1шт.

5

381861R92

HYD TUBE,14.74" Length

TUBE ASSY, cylinder

1шт.

6

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed

2шт.

7

520175R1

CLIP

PIN, quick attachable cotter

2шт.

8

O-RING, 2-3/4 x 3 x 1/8, for head assy, order kit, 386687R93 (NSS)

1шт.

9

RING, retaining, order kit, 386687R93 (NSS)

1шт.

10

381804R11

HEAD

ASSY, rod end

1шт.

11

SEAL, piston rod dust, order kit, 386687R93 (NSS)

1шт.

12

RETAINER, piston rod dust seal, order kit, 386687R93 (NSS)

1шт.

13

73763C1

ROD ASSY.

ROD ASSY, piston, replaces 381842R91

1шт.

14

381853R93

CYLINDER BLOCK

CYLINDER ASSY, 3 x 8 in. single acting hydraulic

1шт.

15

381852R11

PIN

w/SPRING PIN, 591260R1, cylinder pivot, used only w/cylinder tube, 381861R91

1шт.

386687R93

SEAL KIT

hyd cylinder o-ring service, consists of ref nos 1, 2, 8, 9, 11 and 12

1шт.

Выбрано товаров: 16
