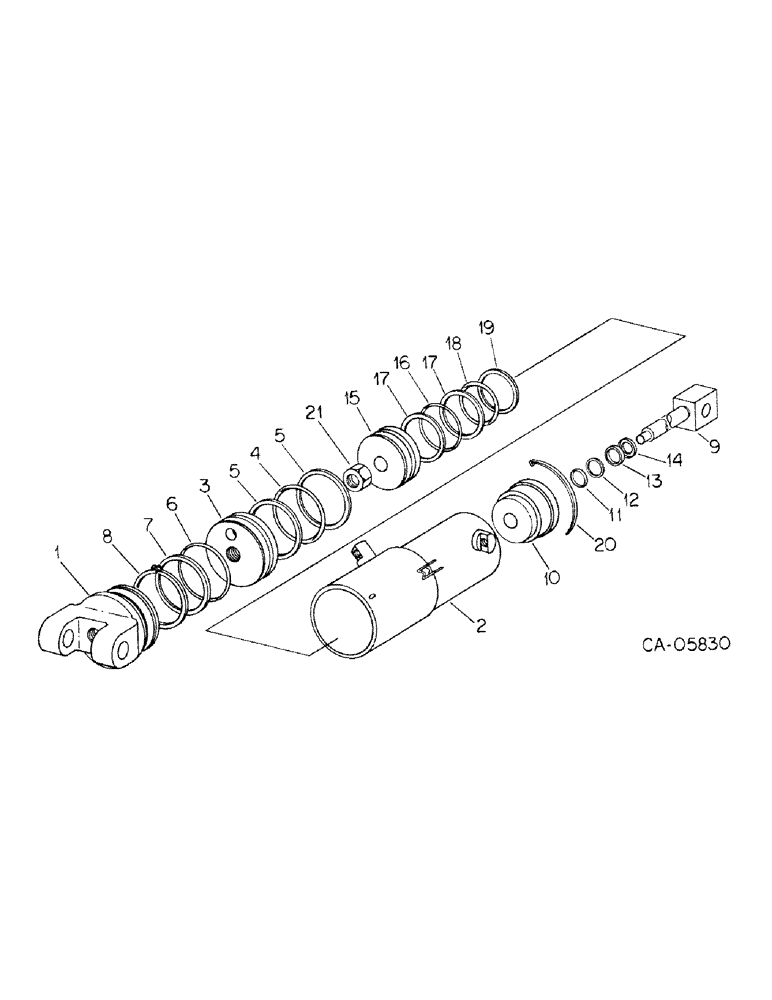

Запчасти Case IH 500 (E-43) - HYDRAULIC CYLINDER, 2 STAGE

113978C93

CYLINDER

ASSY, hydraulic, 2 stage

1шт.

1

63908C2

HEAD

cyl rear

1шт.

2

113981C1

SLEEVE

ASSY, cylinder

1шт.

3

113986C1

PISTON

hyd cylinder

1шт.

4

O-RING, 3-1/2 x 3-7/8 x 3/16 class 6, piston, order kit, 63498C91, (NSS)

1шт.

5

WASHER, backup, order kit, 63498C91 (NSS)

2шт.

6

O-RING, 3-9/16 x 3-7/8 x 1/8 class 6, rear head, order kit, 63498C91

1шт.

7

WASHER, retaining, front head, order kit, 63498C91 (NSS)

1шт.

8

RING, retaining, front head, order kit, 63498C91 (NSS)

1шт.

9

113984C2

ROD

ASSY, piston

1шт.

10

62899C1

HEAD

cyl front

1шт.

11

O-RING, 1-1/4 x 1-1/2 x 1/8 class 6, rod, order kit, 63498C91 (NSS)

1шт.

12

WASHER, backup, order kit, 63498C91 (NSS)

1шт.

13

WASHER, piston rod wiper, order kit, 63498C91 (NSS)

1шт.

14

WASHER, piston rod wiper retainer, order kit, 63498C91 (NSS)

1шт.

15

547724R1

PISTON

hyd cylinder

1шт.

16

O-RING, 3-1/8 x 3-1/2 x 3/16 class 6, piston, order kit, 63498C91, (NSS)

1шт.

17

WASHER, backup, order kit, 63498C91 (NSS)

1шт.

18

O-RING, 3/4 x 3-1/2 x 1/8 class 6, front head, order kit, 63498C91, (NSS)

1шт.

19

WASHER, backup, order kit, 63498C91 (NSS)

1шт.

20

WIRE, retaining, rear head, order kit, 63498C91 (NSS)

1шт.

21

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-14 hex. lock PHC

1шт.

63498C91

SEAL PACKAGE

KIT, hydraulic cylinder service, consists of ref nos 4 through 8, 11, 12, 13, 14 and 16 through 20

1шт.
