Запчасти Case IH 500 (E-40) - SOLENOID VALVE WIRING

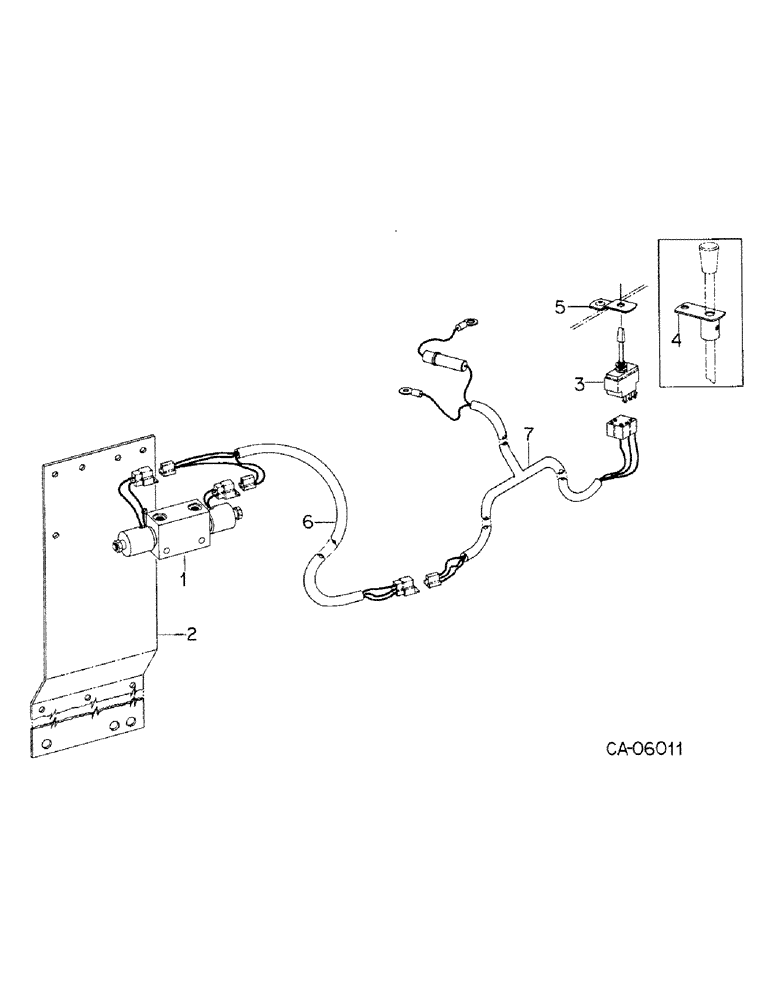

Схема запчастей Case IH 500 - (E-40) - SOLENOID VALVE WIRING
5
6
3
2
1
7
4

Артикул

Название

Примечание

Количество

1

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, for components see list of parts under details of marker solenoid valve

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5, 8 row narrow and 8 row wide

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3/8 x 2-1/2 type 5, 12 row narrow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

58262C3

PLATE

tank mtg, 12 row narrow only

1шт.

3

121542C1

SWITCH

1шт.

4

113492C1

ARM

PLATE ASSY, mtg, for 56 and 66 series tractors only

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 c/pt znp hdl/s set

1шт.

5

128870C1

LARGE PLATE

PLATE, switch mtg, for 86 series tractors only

1шт.

6

119627C1

HARNESS

ASSY, solenoid junction

1шт.

7

119628C1

HARNESS

ASSY, switch

1шт.

Выбрано товаров: 12
