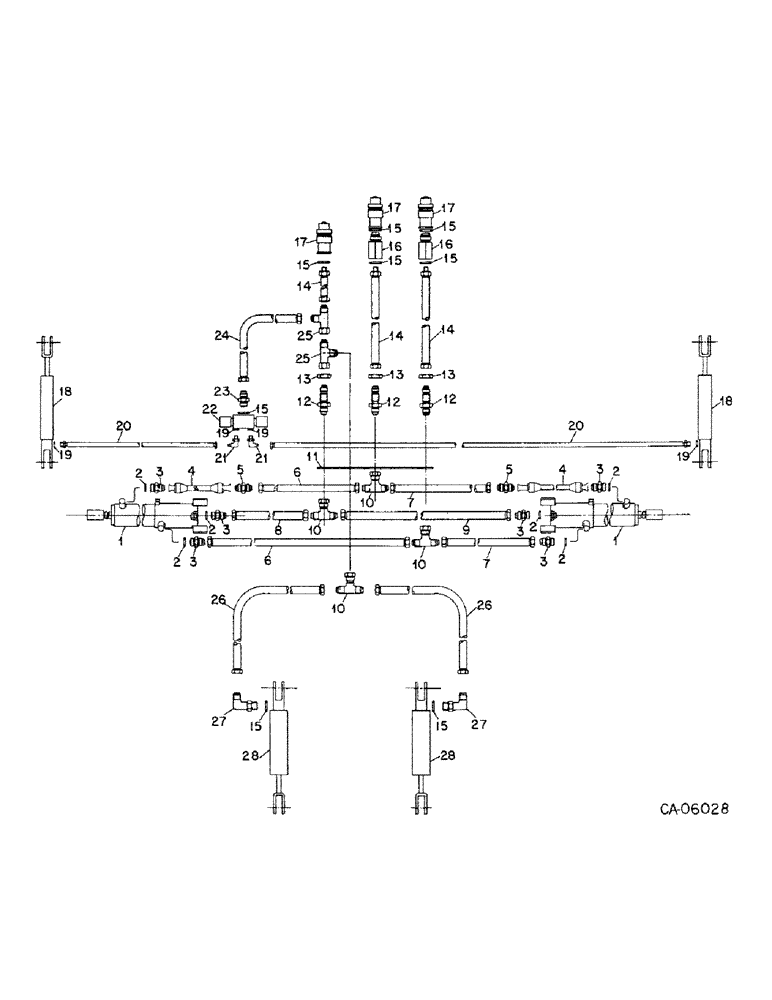

Запчасти Case IH 500 (E-38) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT AND ASSIST WHEELS

1

113978C93

CYLINDER

ASSY, 3-1/2 x 12 two stage, for components see list of parts under details of hyd cylinder

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

6шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

6шт.

4

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY

2шт.

5

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 C-Z hyd flared tube

2шт.

6

119743C1

HOSE

ASSY, 1/2 x 69 in, 12 row narrow

1шт.

6

100383C1

HOSE

ASSY, 1/2 x 59 in., 8 row wide

1шт.

7

100417C1

HOSE

ASSY, 1/2 x 55 in., 12 row narrow

2шт.

7

119690C1

HOSE

ASSY, 1/2 x 45 in., 8 row wide

2шт.

8

113374C1

HOSE

ASSY, 1/2 x 50 in., 12 row narrow

1шт.

8

119876C1

HOSE

ASSY, 1/2 x 37.9 in., 8 row wide

1шт.

9

100384C1

HOSE

ASSY, 1/2 x 64.6 in., 12 row narrow

1шт.

9

100417C1

HOSE

ASSY, 1/2 x 55 in., 8 row wide

1шт.

10

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

5/8 C-Z hyd fld tube swivel, 3 for 8 row wide, 4 for 8 row wide w/assist wheels and 12 row narrow

1шт.

11

119984C1

BAR

hyd hose

1шт.

12

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd fld tube bulkhead

3шт.

13

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 C-Z bulkhead union lock

3шт.

14

541629R1

HOSE

ASSY, 1/2 x 46 in.

3шт.

15

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6, 6 for 8 row wide, 8 for 8 row wide w/assist wheels and 12 row narrow

1шт.

16

493960R91

VALVE

ASSY, drop retarding

2шт.

17

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, Q.A. male

3шт.

18

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cyl

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

4шт.

20

100418C1

HOSE

ASSY, 3/8 x 201 in., 12 row narrow

2шт.

20

100302C1

HOSE

ASSY, 3/8 x 180 in., 8 row wide

2шт.

21

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube adj 90 deg

2шт.

22

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, for components see list of parts under details of marker solenoid valve

1шт.

23

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared tube short swivel

1шт.

24

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

ASSY, 1/2 x 18 in.

1шт.

25

9410334

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

7/8-14 hyd 37 deg flared tube adj STR THRD 90 deg

2шт.

26

196814C1

HOSE

ASSY, 1/2 x 80 in., 8 row w/assist wheels and 12 row narrow

2шт.

27

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 37 deg hyd flared tube 90 deg adj, 8 row w/assist wheels and 12 row narrow

1шт.

28

381853R93

CYLINDER BLOCK

CYLINDER ASSY, 3 x 8 in. single acting hydraulic, for components see list of parts under details of hyd cylinder

2шт.
