(E-37) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT, 8 ROW NARROW

Запчасти Case IH 500 (E-37) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT, 8 ROW NARROW

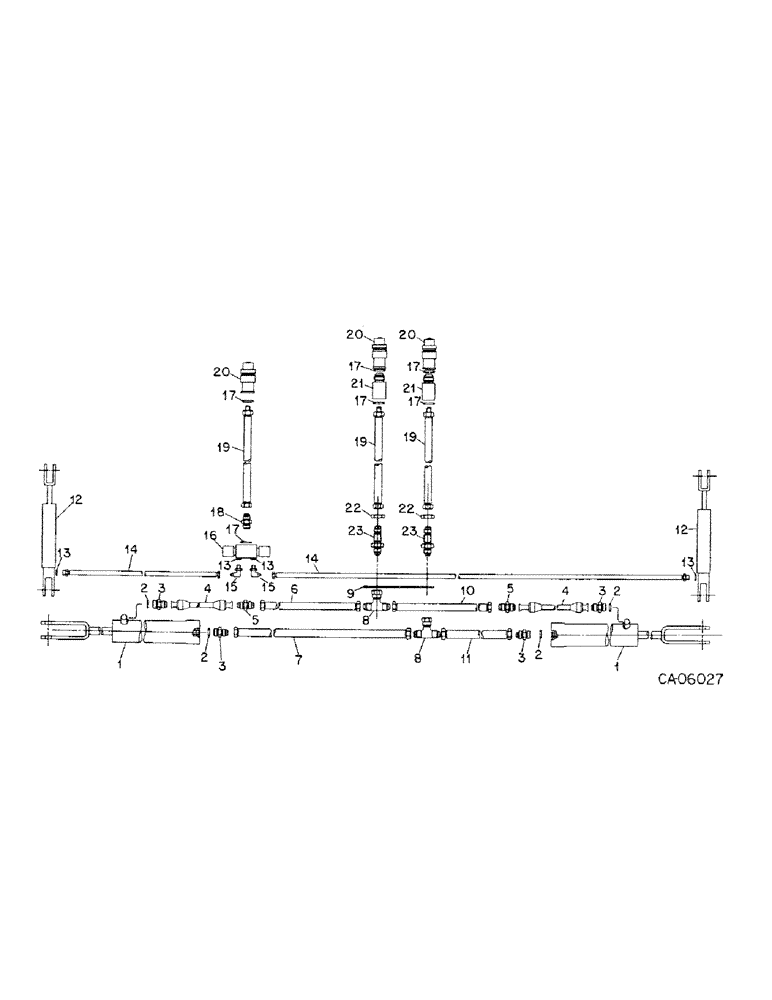

Схема запчастей Case IH 500 - (E-37) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT, 8 ROW NARROW
17
19
15
2
17
23
19
12
15
2
20
1
9
23
17
3
3
3
19
12
10
13
14
20
5
13
4
21
13
14
11
4
13
7
6
22
5
18
17
20
2
8
2
8
17
3
1
22
16
21
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

108606C91

CYLINDER

ASSY, 3 x 12 double acting, for components see list of parts under details of hyd cyl

2шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

4шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 1/2 C-Z hyd fld short swivel

4шт.

4

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY

2шт.

5

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1/2 C-Z hyd flared tube

2шт.

6

125914C1

HOSE

ASSY, 1/2 x 30.9 in., 8 row narrow

1шт.

7

125911C1

HOSE ASSY, 1/2 x 22.9 in., 8 row narrow

1шт.

8

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

5/8 C-Z hyd fld tube swivel

2шт.

9

125906C1

BAR, hyd hose

1шт.

10

125912C1

HOSE

ASSY, 1/2 x 25 in., 8 row narrow

1шт.

11

125913C1

HOSE

ASSY, 1/2 x 28.9 in., 8 row narrow

1шт.

12

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cyl

2шт.

13

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

14

125918C2

HOSE

marker

2шт.

15

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared

2шт.

16

149988C92

VALVE

ASSY, marker solenoid, replaces 125532C91 by also ordering two cables, 1252639C1, for components see list of parts under details of marker solenoid valve

1шт.

17

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

7шт.

18

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared

1шт.

19

541629R1

HOSE

ASSY, 1/2 x 46 in.

2шт.

20

544787R91

COUPLING, BREAK AWAY

COUPLING ASSY, Q.A. male

2шт.

21

493960R91

VALVE

ASSY, drop retarding

2шт.

22

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 5/8 C-Z bulkhead union lock

2шт.

23

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 5/8 C-Z hyd fld tube bulkhead

2шт.
