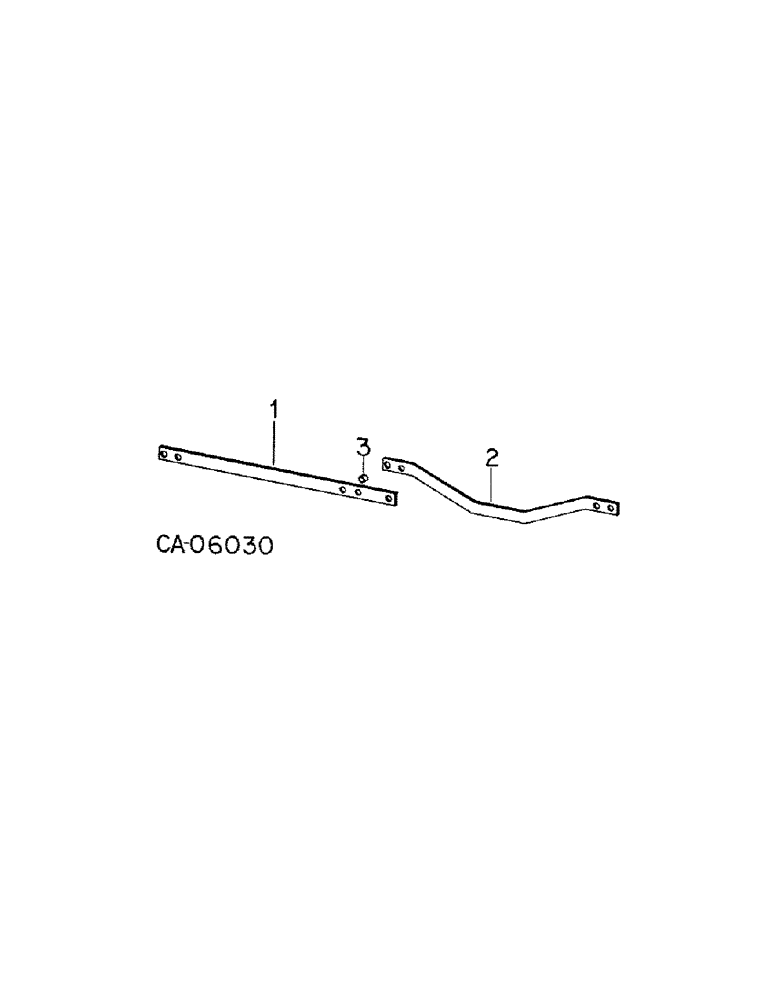

Запчасти Case IH 500 (E-23[A]) - JOCKEY BARS

1

100022C1

BAR, jockey, 31.4 in. long, 22 to 30 in. spacing, 3 for 8 row narrow and 7 for 12 row narrow

1шт.

1

472114R1

BAR, jockey, 40 in. long, 36 to 40 on. spacing, 3 for 8 row wide

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 crg type 1, 1 per spacer

1шт.

178373R1

WASHER

.531 x 1.000 x .056, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

2

119995C1

BAR, jockey arch, for 12 row narrow

2шт.

2

137384C1

BAR, jockey arch, for 8 row wide

2шт.

2

140401C1

BAR, jockey arch LH

1шт.

2

140432C1

BAR, jockey arch RH, 28 to 30 in. spacing, for 8 row narrow

1шт.

20180R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 crg type 1

2шт.

3

159716C1

SPACER,3/4" Tube x 5/8"

BUSHING, 8 row wide and 12 row narrow, 1 per jockey bar

1шт.

3

586329R1

SPACER,3/4" Tube x 13/16"

BUSHING, 8 row narrow

2шт.
