Запчасти Case IH 500 (E-21) - CUT-OFF BRUSH ASSY

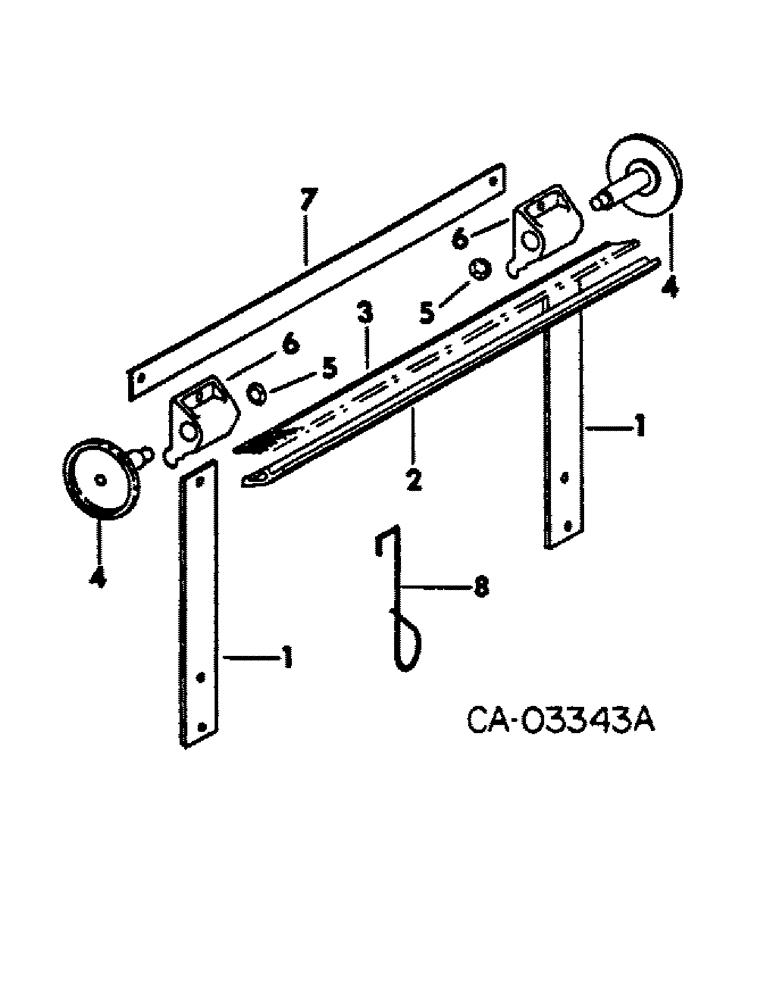

Схема запчастей Case IH 500 - (E-21) - CUT-OFF BRUSH ASSY
5
1
8
3
6
6
2
4
5
4
7
1

Артикул

Название

Примечание

Количество

58968C93

CIRCULAR BRUSH

BRUSH ASSY, cut-off, 12 row narrow, 1 per seed hopper

1шт.

58969C93

BRUSH ASSY.

BRUSH ASSY, cut-off, 8 row narrow and 8 row wide, 1 per seed hopper

1шт.

1

SPRING, cut-off brush, 2 per brush, see note 1

1шт.

436695

SCREW,Slotted Pan Hd, #8-32 x 1/2"

8-32 x 1/2 C-Z slt-pan-hd mach

6шт.

545558R1

LOCK NUT

lock

2шт.

120622

NUT,#8-32

4шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

2

STRIP, clamping, 1 per seed hopper, see note 1

1шт.

3

61136C2

BRUSH

cut-off, 12 row narrow, 1 per seed hopper

1шт.

3

61137C2

BRUSH

cut-off, 8 row narrow and 8 row wide, 1 per seed hopper

1шт.

4

ROLLER, gauging, 2 per brush, see note 1

1шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

2шт.

5

437157R1

SNAP RING,#37, Ext

Ring, Snap, , 2 per brush #37, Ext

1шт.

6

BRACKET, gauging roller, 2 per brush

1шт.

7

STRIP, tie, 1 per seed hopper, see note 1

1шт.

436697

SCREW,Slotted Pan Hd, #8-32 x 3/4"

8-32 x 3/4 znd slt-pan-hd mach

2шт.

545558R1

LOCK NUT

lock

2шт.

8

100170C1

SPRING

lock-out

1шт.

Выбрано товаров: 18
