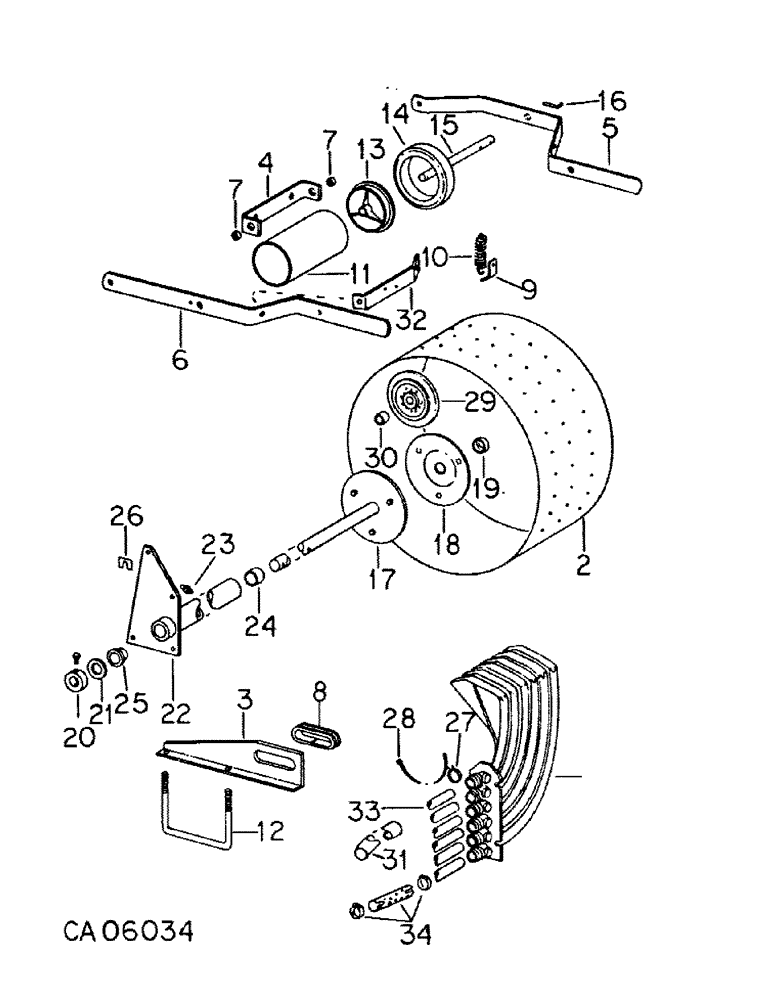

Запчасти Case IH 500 (E-18) - SEED HANDLING TUBES AND DRUM, QUANTITIES SHOWN ARE PER SEED HOPPER EXCEPT AS INDICATED
№
Артикул
Название
Примечание
Количество
1
100157C1
TUBE ASSY.
MANIFOLD ASSY, seed discharge, 12 row narrow
1шт.
1
100168C1
TUBE ASSY.
MANIFOLD ASSY, seed discharge, 8 row narrow wand 8 row wide
1шт.
58776C1
GAUGE
manifold
1шт.
113090C1
SEALANT
SEALANT, 3 ounce tube RTV silicone, used to caulk around the manifold mounting flange to prevent air leakage
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
6шт.
469668R1
WASHER
13/32 x 3/4 x 16 ga C-Z
10шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
6шт.
120377
NUT,3/8" - 16, Gr 5
6шт.
2
DRUM, seed, refer to seed drum unit
1шт.
3
113214C1
SUPPORT, seed tube, for 8 row wide 16.5 mm Length
1шт.
4
546332R1
SUPPORT
wheel cutoff
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 znd hex-hd mach
2шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 type 1
2шт.
17452R1
BOLT,Hex, 1/2"-13 x 1 1/4", G2
1/2 x 1-1/4 type 1
2шт.
607895R1
WASHER
17/32 x 1 x 11 ga C-Z
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
5
100177C1
ARM
wheel cutoff front, 2 for 12 row narrow, 1 for 8 row wide and 8 row narrow
1шт.
6
100176C1
DEFLECTOR
ARM, wheel cutoff rear, 8 row narrow and 8 row wide
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 x 1 znd hex-hd mach
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
7
548363R1
BUSHING
pivot
2шт.
8
113038C1
GROMMET, hose, for 8 row wide
1шт.
9
546336R1
BRACKET, spring
1шт.
18778R1
SCREW,Hex, 3/8"-16 x 3/4", G2
BOLT, 3/8 x 3/4 znd hex-hd mach
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
1шт.
120377
NUT,3/8" - 16, Gr 5
1шт.
10
626206R1
SPRING
extension
1шт.
11
546337R1
SLEEVE
cutoff wheel long, 12 row narrow
1шт.
11
548809R1
SLEEVE
cutoff wheel, 8 row wide and 8 row narrow
1шт.
12
493837R2
U-BOLT
5/8, 8 row wide
1шт.
13
539670R1
RIM
cutoff wheel
2шт.
14
546341R1
TYRE/TIRE
TIRE, cutoff wheel, 1 per row
1шт.
15
548364R1
AXLE
12 row narrow
1шт.
15
548810R1
AXLE
8 row wide and 8 row narrow
1шт.
22258
WASHER, 21/32 x 1 x 22 ga C-Z (as required)
2шт.
18481R1
COTTER PIN,3/16" x 1"
PIN, SPLIT (COTTER), 3/16" x 1"
1шт.
16
548365R1
PIN
axle retainer
1шт.
17
56039C1
SHAFT
ASSY, drum, 12 row narrow
1шт.
17
56042C1
SHAFT
ASSY, drum, 8 row wide and 8 row narrow
1шт.
86978391
BOLT
3/8 x 1-1/4 dowel
3шт.
18
141509C1
CAP
drum end
1шт.
19
23836R1
WASHER
.656 x 1.375 x .105, replaces cap, 547359R1
1шт.
271715
BOLT,Hex, 5/8" - 11 x 1", Gr 5
SCREW, 5/8-11 x 1 znd hex-hd cap
1шт.
20
546378R1
SPACER
drive
1шт.
21
548480R1
THRUST WASHER
wear
3шт.
21891R1
HEADED PIN,5/16" x 2"
PIN, 5/16 x 2 znd std-hd
1шт.
648002
KNIFE
1/8" x 3/4"
1шт.
22
546380R1
PIPE
ASSY, drum shaft, 12 row narrow
1шт.
22
548814R1
PIPE
ASSY, drum shaft, 8 row wide and 8 row narrow
1шт.
589713R1
SHIM
.038 (as required)
4шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8-16 x 1 znd hex-hd mach
2шт.
18495R1
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
3/8-16 x 1-1/4 znd hex-hd mach
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
23
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 NF2 STR lubrication
1шт.
24
609775R1
BUSHING
1шт.
25
548453R1
BUSHING,1.002" ID x 1.5" OD x 1.125"
drum shaft
1шт.
26
589713R1
SHIM
.036
3шт.
26
935915R1
SHIM,33.02mm OD x 0.38mm Thk
.015
3шт.
27
626239R1
HOSE CLAMP,#17, 1 1/16", Spring
CLAMP, seed tube hose, planter end, one per row
1шт.
27
122316R91
HOSE CLAMP,#12, 0.69/1.25 Type F Worm
CLAMP, seed tube hose, manifold end, one per row
1шт.
28
306132C1
CABLE TIE,14.5" L
STRAP, tube holding
1шт.
29
548821R1
BEARING
WHEEL w/BEARING, drum support
1шт.
271726
ROTOR,Hex, 5/8" - 11 x 2 3/4", Gr 5
SCREW, 5/8-11 x 2-3/4 znd hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
30
548822R1
SPACER
wheel
1шт.
31
547608R1
PLASTIC-RUBBER TUBE
TUBE, reinforcing, 1 per row
1шт.
32
100180C1
STRAP
cut-off wheel arm
1шт.
32-1212
COTTER PIN,3/16" x 3/4"
PIN, SPLIT (COTTER), 3/16" x 3/4"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, .344 x .688 x .051 znd
2шт.
120376
NUT,5/16"-18, G5
2шт.
33
546541R2
TUBE
100 foot coil
1шт.
REF: #33 - 546541R2 TUBE,100 FOOT COIL WILL NO LONGER BE PROVIDED. NEW TUBE 130979A2 ( 195 INCHES LONG ) WILL FIT ALL APPLICATIONS.
1шт.
33
58238C2
TUBE
1шт.
TUBE, 58 inch coil, for tube lengths 58 in. & under, for seed delivery tube use the following lengths, 8 row narrow planter, row 1 use 150 in., row 2 use 137 in., row 3 use 97 in., row 4 use 40 in., row 5 use 69 in., row 6 use 102 in., row 7 use 130 in., row 8 use 156 in., 8 row wide planter, row 1 use 182 in., row 2 use 156 in., row 3 use 119 in., row 4 use 55 in., row 5 use 69 in., row 6 use 112 in., row 7 use 156 in., row 8 use 190 in., 12 row narrow planter, row 1 use 170 in., row 2 use 142 in., row 3 u
1шт.
34
63812C91
PACKAGE
air diffuser, consists of (12) clamp (NSS), (6) diffuser (NSS), instructions (NSS)
1шт.
72902C1
TUBE
PACKAGE, beet seed tube, 2 rows
1шт.
62175C91
KIT
PACKAGE, seed manifold, consists of
1шт.
100157C1
TUBE ASSY.
MANIFOLD
1шт.
100172C1
DEFLECTOR
1шт.
113255C1
PLUG
2шт.
100177C1
ARM
2шт.
100180C1
STRAP
1шт.
32-1212
COTTER PIN,3/16" x 3/4"
PIN, SPLIT (COTTER), 3/16" x 3/4"
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 5/16", SAE
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
113090C1
SEALANT
SEALANT
1шт.
935915R1
SHIM,33.02mm OD x 0.38mm Thk
1шт.
589713R1
SHIM
1шт.
62176C91
KIT
PACKAGE, seed manifold, consists of
1шт.
100177C1
ARM
1шт.
100180C1
STRAP
1шт.
32-1212
COTTER PIN,3/16" x 3/4"
PIN, SPLIT (COTTER), 3/16" x 3/4"
1шт.
100176C1
DEFLECTOR
ARM
1шт.
120393
BEARING WASHER,5/16", SAE
WASHER, 5/16", SAE
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120376
NUT,5/16"-18, G5
2шт.
113090C1
SEALANT
SEALANT
1шт.
100171C1
DEFLECTOR
1шт.
100168C1
TUBE ASSY.
MANIFOLD
1шт.
935915R1
SHIM,33.02mm OD x 0.38mm Thk
OID
1шт.
589713R1
SHIM
1шт.
