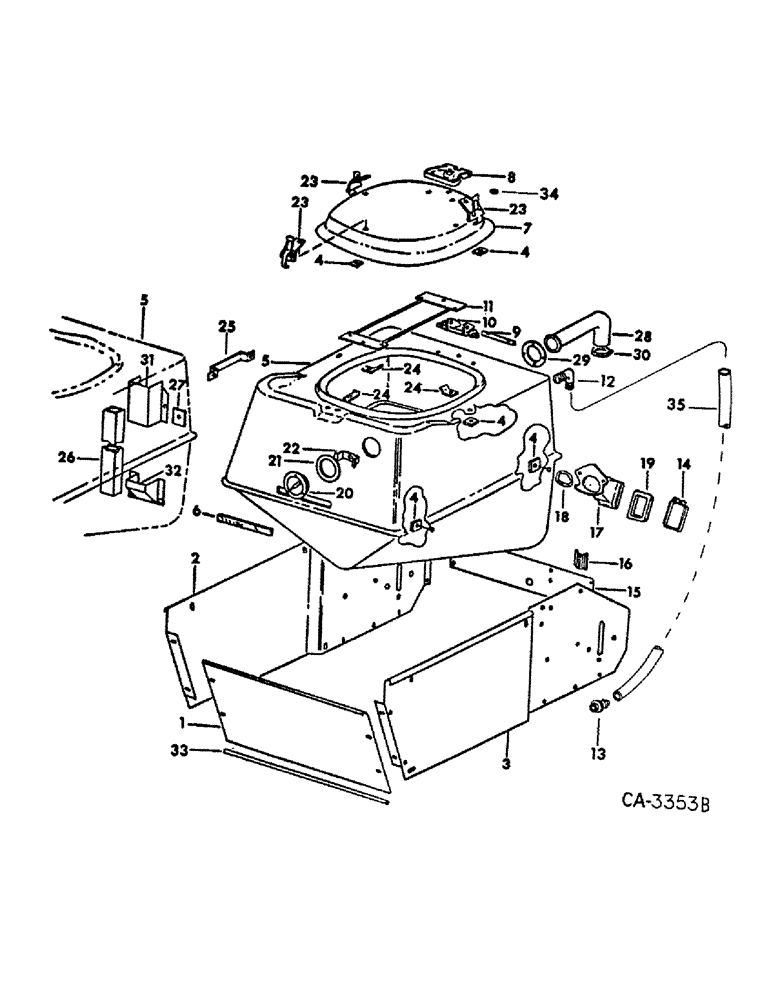

Запчасти Case IH 500 (E-12) - SEED HOPPER AND MOUNTING, QUANTITIES SHOWN ARE PER HOPPER EXCEPT AS INDICATED

1

58192C1

PANEL, support plate front

1шт.

172480

SCREW,Hex, 3/8" - 16 x 5/8"

3/8-16 x 5/8 type D hex-hd tap

4шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

4шт.

20803R1

WASHER

.406 x 1 x .105 znd

2шт.

2

57370C4

SUPPORT w/PRODUCT GRAPHIC, 113484C1, hopper and blower RH

1шт.

3

100010C4

SUPPORT, hopper and blower LH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

8шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

4шт.

614452R1

WASHER

13/32 x 1-1/4 x 11 ga C-Z

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

4

547692R1

PAD

seed hopper and lid latch

9шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

21375R1

WASHER

.531 x 1.25 x .164 znd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

60216C92

HOPPER ASSY, seed, 12 row narrow

1шт.

5

60217C92

HOPPER ASSY, seed, 8 row narrow and 8 row wide

1шт.

100433C1

BUMPER, flange plug, used to plug unused holes in seed hopper

2шт.

6

57731C91

WINDOW

ASSY, seed hopper

1шт.

7

548626R1

LID

w/PRODUCT GRAPHIC, 113483C1, hopper

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

3шт.

8

546325R1

HINGE

hopper lid

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 znd hex-hd mach

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120376

NUT,5/16"-18, G5

3шт.

9

547276R1

PIN

pivot lid

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

1шт.

455516

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

2шт.

10

546327R1

PIVOT

lid

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 znd sq-nk crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

11

546328R1

GUARD ASSY, hopper

1шт.

12

547464R1

ELBOW

FITTING, 90 deg elbow, 12 row narrow

1шт.

150450H1

LOCK NUT

NUT, 1 in. pipe lock

2шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

2шт.

13

546465R1

FITTING, straight hose shank, 12 row narrow

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga C-Z

2шт.

150450H1

LOCK NUT

NUT, 1 in. pipe lock

2шт.

14

57730C1

CLAMP

seal

1шт.

15

113164C91

PLATE w/PRODUCT GRAPHIC, 61907C1 & 819809C1, rear, 12 row narrow

1шт.

15

113165C91

SUPPORT

PLATE w/PRODUCT GRAPHIC, 61907C1 & 819809C2, rear, 8 row wide and 8 row narrow

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 3/4 znd hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

16

398976R1

BRACKET

SOCKET, slow moving vehicle emblem mounting

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

17

546348R3

COUPLING

seed tube

1шт.

86511938

SCREW,Pan, 5/16" - 18 x 3/4"

5/16-18 x 3/4 zld slt-pan

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga C-Z

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd hex. flange lock

3шт.

18

60218C1

GASKET

coupling

1шт.

19

57395C1

SEAL

tube upper

1шт.

20

149128C91

GAUGE

w/CLAMP, air pressure, replaces 149129C1

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

21

546988R1

GASKET

air gauge

1шт.

22

BRACKET, gauge, order 149128C91

1шт.

23

549768R1

LATCH

lid

3шт.

24

548622R1

CLIP

locking

3шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 znd sq-nk crg

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

25

58281C1

HANDLE, assist

1шт.

547692R1

PAD

assist handle

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

2шт.

21375R1

WASHER

1.250 x .531 x .164 znd

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

26

57399C1

TUBE

air, 8 row narrow and 8 row wide

1шт.

27

57560C1

CLAMP

air tube, 8 row narrow and 8 row wide

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

2шт.

120376

NUT,5/16"-18, G5

2шт.

28

57581C1

HOSE

hopper air, 8 row narrow and 8 row wide

1шт.

29

57561C1

PLATE

clamping, 8 row narrow and 8 row wide

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

30

122322R91

HOSE CLAMP,#44, 2.31/3.25 Type F Worm

CLAMP, type F, 8 row narrow and 8 row wide

1шт.

31

57567C1

COVER

hopper air hose, 8 row narrow and 8 row wide

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051 znd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

32

58047C1

BAFFLE

ASSY, air tube, 8 row narrow and 8 row wide

1шт.

33

100012C1

ROD, plate tie

1шт.

34

542535R1

GASKET

rubber

1шт.

35

TUBE, 38 in. seed, make from 100 foot roll marked, 546541R2, 12 row narrow

1шт.
