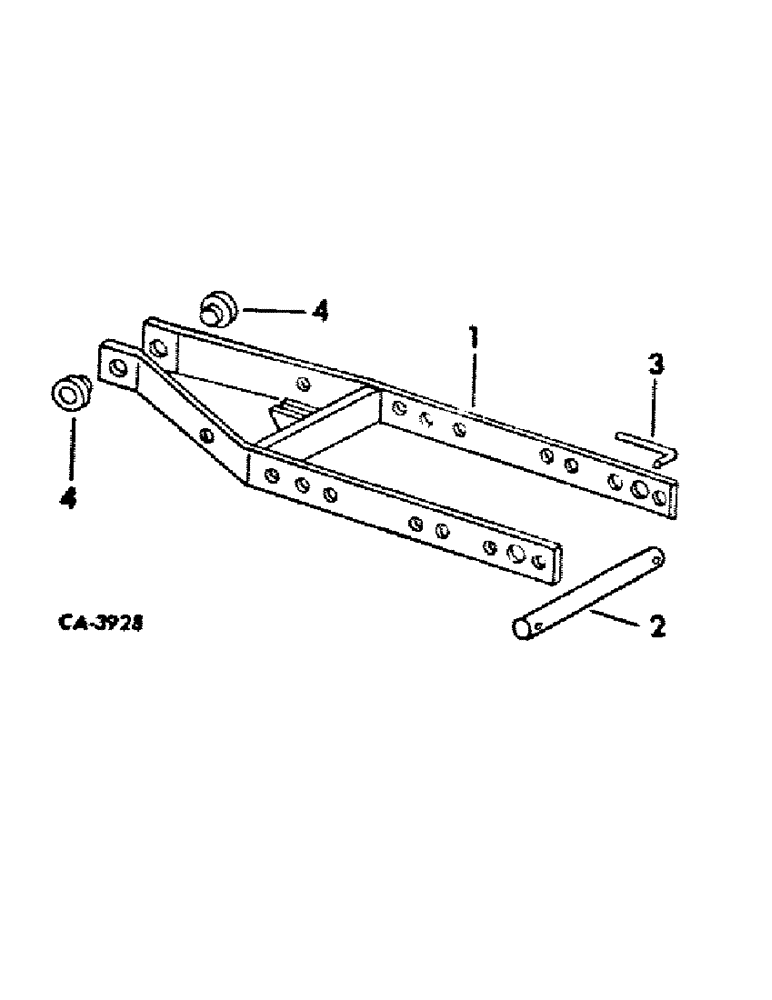

Запчасти Case IH 500 (C-09) - PRESS WHEEL FRAME

1

548429R3

FRAME

ASSY, press wheel

1шт.

2

461911R1

PIN

AXLE, press wheel

1шт.

608701R1

WASHER

21/32 x 1-1/2 x 16 ga C-Z

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

3

461912R2

PIN

axle retaining

1шт.

4

546562R2

BUSHING

press wheel pivot

2шт.

19264R1

BOLT,Hex, 1/2" - 13 x 4 1/4", Gr 2

1/2 x 4-1/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
