Запчасти Case IH 500 (C-08) - CENTER DRIVE UNIT, QUANTITIES SHOWN ARE PER SEED HOPPER

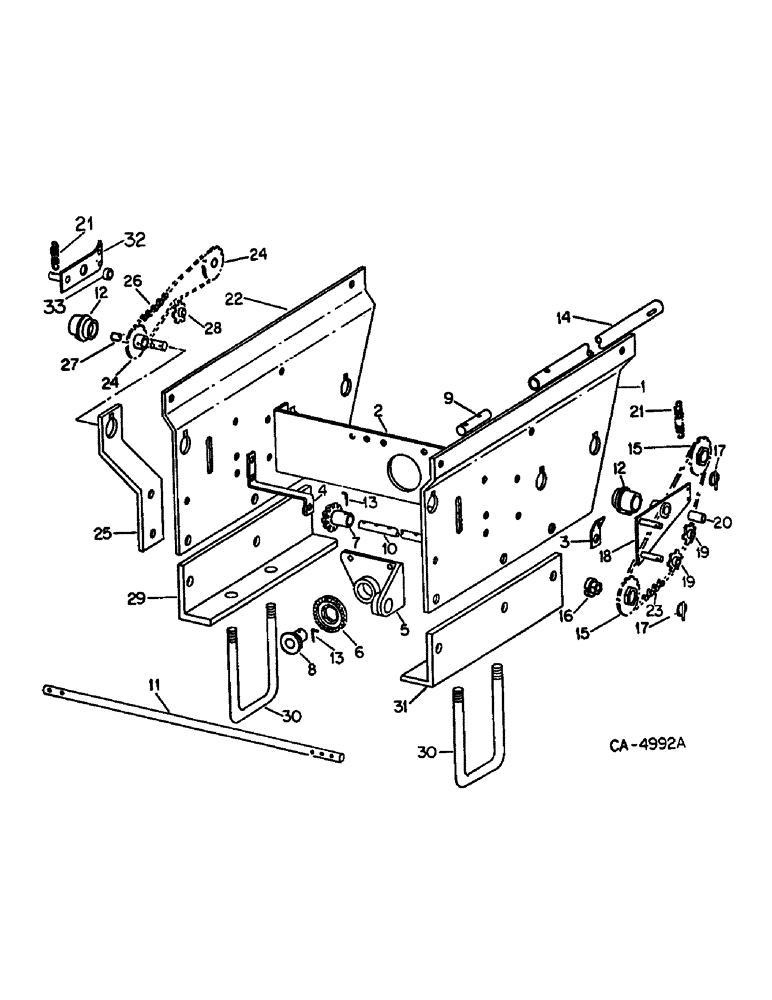

Схема запчастей Case IH 500 - (C-08) - CENTER DRIVE UNIT, QUANTITIES SHOWN ARE PER SEED HOPPER
20
26
1
33
5
29
10
11
17
19
28
15
13
7
19
25
14
4
24
15
6
30
9
12
2
30
13
18
21
32
31
17
8
27
23
21
16
12
3
22
24

Артикул

Название

Примечание

Количество

1

62148C2

PLATE, hopper mounting RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

2

62153C1

PLATE, gear box mounting

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

3

62173C1

CLIP, spacing

1шт.

4

546991R1

BRACKET, sprocket storage

1шт.

180191

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1/2 x 3-1/4 type 5

1шт.

178374R1

WASHER

.531 x 1.250 x .054

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

165011C1

SPACER

1шт.

5

546529R2

BOX

GEAR BOX

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

55580C3

GEAR

drum drive, 24 teeth

1шт.

7

546287R3

GEAR

PINION, drum drive

1шт.

8

55579C3

BUSHING

drive

1шт.

9

546532R1

SHAFT

gear drum drive

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27 x 90 deg angle short lubrication

1шт.

273352

SCREW

FITTING, 1/8-27 x 90 deg angle lub

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

2шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

2шт.

22481R1

WASHER

1.406 x 2.250 x .054 znd

2шт.

10

141400C1

SHAFT, gear box drive, replaces 62154C1

1шт.

11

141399C1

ROD

COUNTERSHAFT, center, replaces 62155C2

1шт.

12

481812R11

BEARING ASSY

w/BUSHING

5шт.

19700R91

FITTING

3/16 x 45 deg drive lub

5шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

5шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

5шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

5шт.

13

546531R1

PIN

drive

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

14

62146C2

COUPLING, drum drive

1шт.

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, 1/4 x 1.81 znd headed

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

23505R1

WASHER

9/32 x 5/8 x 16 ga C-Z

2шт.

15

546432R1

SPROCKET ASSY.

SPROCKET, 16T, Serial Range: 1976-1978

1шт.

15

134240C1

SPROCKET ASSY.

SPROCKET, 16T, 1978 and since

1шт.

15

546433R1

SPROCKET ASSY.

SPROCKET, 14T, Serial Range: 1976-1978

1шт.

15

134238C1

SPROCKET ASSY.

SPROCKET, 14T, 1978 and since

1шт.

15

546515R1

SPROCKET ASSY.

SPROCKET, 18T, Serial Range: 1976-1978

1шт.

15

134242C1

SPROCKET ASSY.

SPROCKET, 18T, 1978 and since

1шт.

15

546516R1

SPROCKET ASSY.

SPROCKET, 15T, Serial Range: 1976-1978

1шт.

15

134239C1

SPROCKET ASSY.

SPROCKET, 15T, 1978 and since

1шт.

15

546518R1

SPROCKET ASSY.

SPROCKET, 11T, Serial Range: 1976-1978

1шт.

15

134236C1

SPROCKET ASSY.

SPROCKET, 22T, 1978 and since

1шт.

15

134235C1

SPROCKET ASSY.

SPROCKET, 10T, replaces 546514R1

1шт.

15

134234C1

SPROCKET ASSY.

SPROCKET, 8T, replaces 546517R1

1шт.

15

134237C1

SPROCKET ASSY.

SPROCKET, 12T, replaces 484197R2

1шт.

15

134241C1

SPROCKET ASSY.

SPROCKET, 17T, replaces 484196R2

1шт.

16

547955R1

HUB

sprocket drive

2шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

17

373025R91

PIN ASSY.

PIN ASSY, quick attachable

2шт.

18

58272C2

PLATE

ASSY, chain tightener

1шт.

20691R1

FITTING,3/16" x .47" lg, Drive

3/16 STR drive type short lub

1шт.

22942R1

PIN, 1/4 x 3/4 znd cot.

2шт.

19

472344R3

SPROCKET

idler

2шт.

20

548537R1

BUSHING

1шт.

21

PO7

SPRING

2шт.

22942R1

PIN, 1/4 x 3/4 znd cot.

1шт.

22

62147C2

PLATE, hopper mounting LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

280954

NUT,3/4"-10, G5

3шт.

23

CHAIN, drum drive, use 33 links of 1 in. ext pitch agricultural roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91

1шт.

24

128778C1

SPROCKET ASSY.

SPROCKET ASSY, 12T

2шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

1шт.

25

62174C1

STRAP, hammer

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

26

CHAIN, sprocket drive, use 59 links of 1 in. ext pitch agricultural roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91

1шт.

27

62151C2

SHAFT, main drive

1шт.

28

472344R2

DRIVE SPROCKET

SPROCKET, idler

1шт.

18822R1

BOLT,Hex, 5/8"-11 x 1 1/2", G2, Full Thd

5/8 x 1-1/2 type 1

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

1шт.

29

62149C2

ANGLE, module mounting LH

1шт.

30

61692C1

BOLT,U, 3/4" - 10 x 211.80

U-BOLT, 3/4-10 angle mounting

2шт.

280954

NUT,3/4"-10, G5

4шт.

31

62150C2

ANGLE, module mounting RH

1шт.

32

128740C1

ARM

ASSY, tightener, planters w/serial no. 7292 and above

1шт.

33

128734C1

WASHER

tightener, planter w/serial no. 7292 and above

2шт.

Выбрано товаров: 95
