Запчасти Case IH 500 (C-07) - JOCKEY BARS

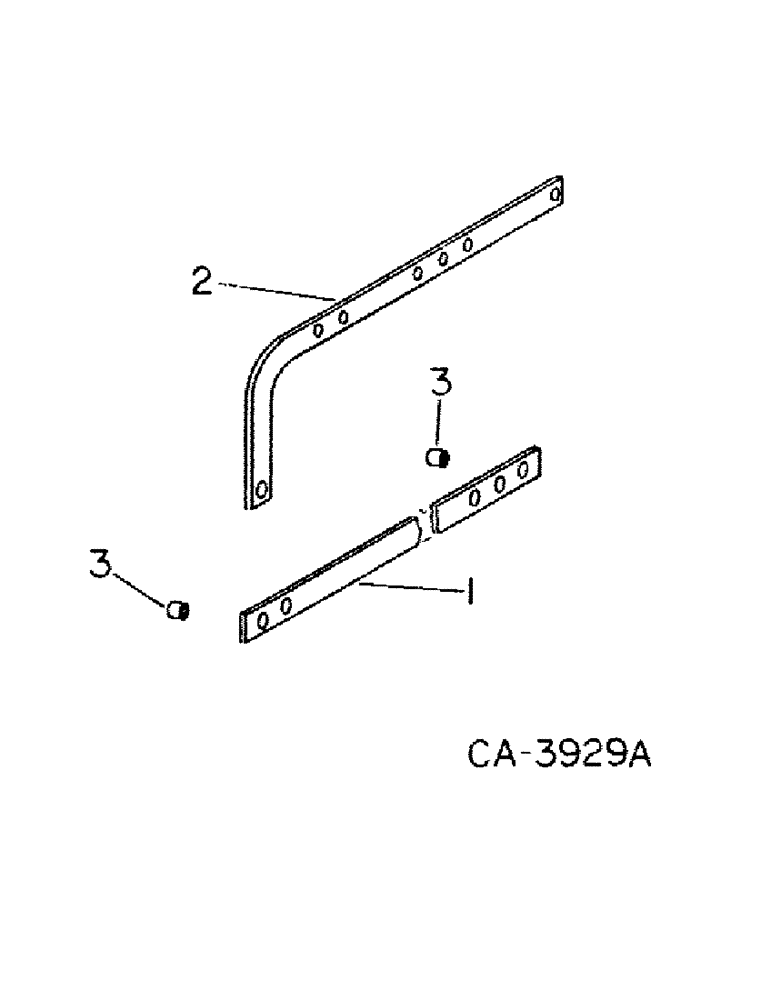

Схема запчастей Case IH 500 - (C-07) - JOCKEY BARS
2
3
1
3

Артикул

Название

Примечание

Количество

1

100022C1

BAR, jockey, 31.4 in. long, 22 to 30 in. spacing, 10 for 12 row narrow and 14 for 16 row

1шт.

1

472114R1

BAR, jockey, 40 in. long, 36 to 40 on. spacing, 10 for 12 row wide

1шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2-13 x 1-3/4 znd sq-nk crg, 1 per spacer

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga znd, 1 per bolt

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bolt 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

2

(Not used in this application)

1шт.

3

159716C1

SPACER,3/4" Tube x 5/8"

jockey bar, 12 for 12 row and 14 for 16 row

1шт.

Выбрано товаров: 8
