Запчасти Case IH 500 (C-55) - CYCLOMITOR II MONITOR

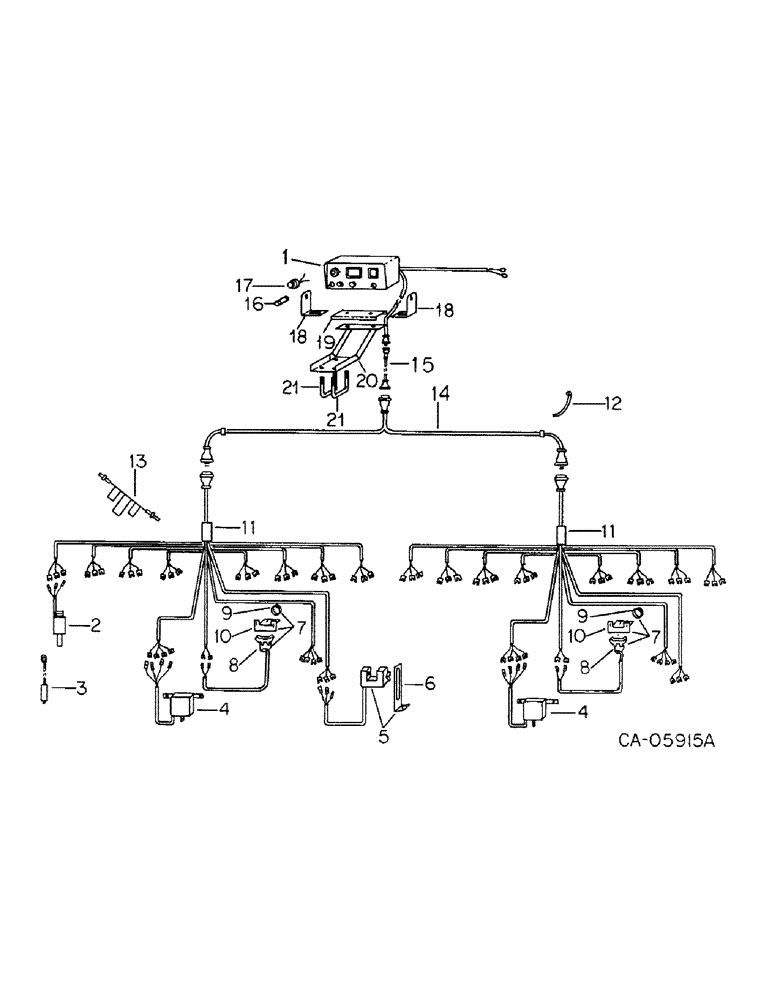

Схема запчастей Case IH 500 - (C-55) - CYCLOMITOR II MONITOR
8
15
21
11
7
7
13
8
5
6
4
9
10
1
3
11
18
12
14
18
19
17
2
10
9
21
20
4
16

Артикул

Название

Примечание

Количество

1

79300C1

PANEL, cyclomitor II

1шт.

128736C1

PRODUCT GRAPHIC, control panel

1шт.

2

59363C1

SENSOR

seed, 1 per row

1шт.

3

128817C1

BRUSH, COMMUTATOR

BRUSH, sensor cleaning

1шт.

4

133897C1

SWITCH

air pressure

2шт.

5

133901C91

RELAY

ASSY, hopper level

1шт.

137437C1

GROMMET

1шт.

6

113432C1

BRACKET

seed level sensor

1шт.

7

133902C91

SWITCH

ASSY, drum sensor

2шт.

8

178806C1

SWITCH

REED SWITCH ASSY

2шт.

9

178800C1

CLAMP

ASSY

2шт.

10

133895C1

SUPPORT, switch mtg

1шт.

11

64897C91

HARNESS

planter, 12 row

2шт.

11

64898C91

HARNESS

planter, 16 row

2шт.

12

58555C1

FASTENER

TIE WRAP, 7 in.

1шт.

12

306132C1

CABLE TIE,14.5" L

TIE WRAP, 14 in.

1шт.

13

58557C1

ELECTRICAL WIRE

WIRE, shortening

1шт.

14

64899C91

CABLE

Y connector, 12 row

1шт.

14

64900C91

CABLE

Y connector, 16 row

1шт.

15

133896C93

HARNESS

CABLE, extension

2шт.

16

106652

FUSE,3 Amp, Type 3AG

3 amp.

1шт.

17

128816C1

BUZZER

1шт.

18

136963C1

ANGLE

for 86 series tractors

2шт.

19

136962C1

CHANNEL, for 86 series tractors

1шт.

20

136961C1

SUPPORT, for 86 series tractors

2шт.

21

136960C1

BOLT

U-BOLT, for 86 series tractors

1шт.

120376

NUT,5/16"-18, G5

2шт.

139936C91

KIT

1шт.

KIT, monitor field repair, consists of component box (NSS), waldon crimping tool (NSS), (5) bezels, amber (NSS), (10) terminals, ring (NSS), (20) screw, 8-32 x 3/8 (NSS), (20) lockwasher, #8 (NSS), (6) lamp, #1892 (NSS), (10) fuses, 3 amp (NSS), (10) fuses, 4 amp (NSS), (5) fuse caps (NSS), (100) contacts, pin (NSS), (20) housing, single pin (NSS), (5) housings, two pin (NSS), (100) contacts, socket (NSS), (20) housings, single socket (NSS), (5) housings, two socket (NSS), (4) shorting wires (NSS), (6) wash

1шт.

139937C91

KIT

1шт.

KIT, monitor field refill, consists of (5) bezels, amber (NSS), (10) terminals, ring (NSS), (20) screws, 8-32 x 3/8 (NSS), (20) lockwasher, #8 (NSS), (6) lamp #1892 (NSS), (10) fuses, 3 amp (NSS), (10) fuses, 4 amp (NSS), (5) fuse caps (NSS), (100) contacts, pin (NSS), (20) housings, single pin (NSS), (5) housings, two pin (NSS), (100) contacts, socket (NSS), (20) housing, single socket (NSS), (5) housing, two sockets (NSS), (4) shorting, wires (NSS), (6) washers, rubber (NSS), (6) screw, console mounting

1шт.

Выбрано товаров: 31
