Запчасти Case IH 500 (C-53) - PARALLEL ADJUSTABLE RUNNER WING ATTACHMENT, FOR 12 ROW WIDE WITH 36 TO 40 IN. SPACING

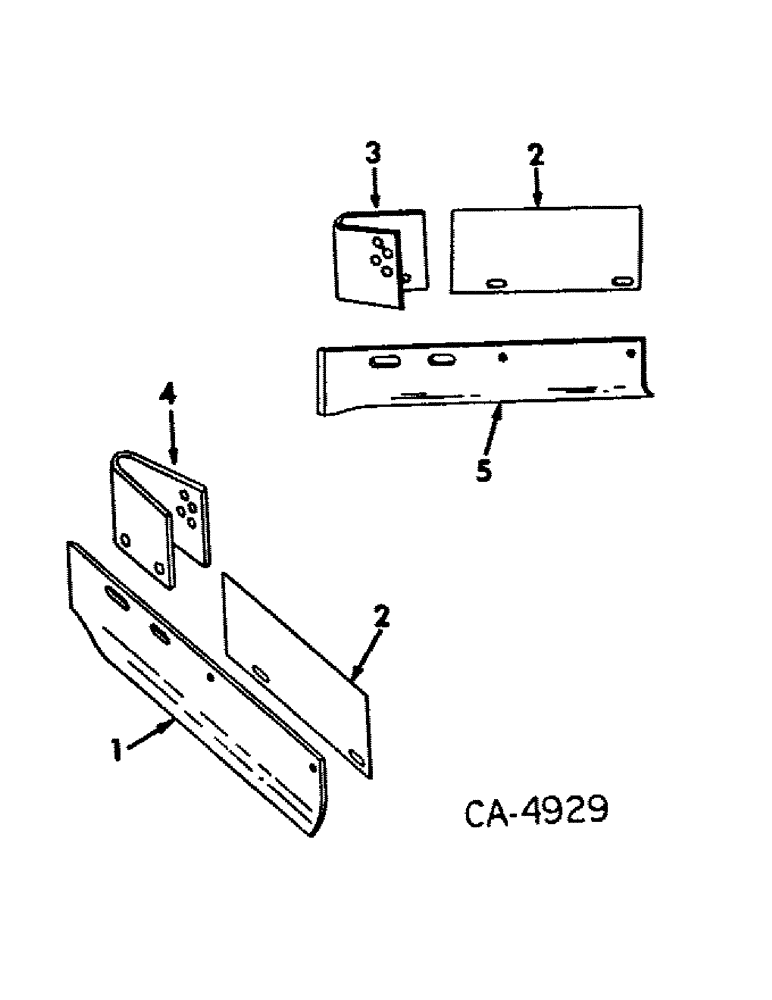

Схема запчастей Case IH 500 - (C-53) - PARALLEL ADJUSTABLE RUNNER WING ATTACHMENT, FOR 12 ROW WIDE WITH 36 TO 40 IN. SPACING
3
1
4
2
2
5

Артикул

Название

Примечание

Количество

1

469325R1

RUNNER

WING, LH runner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

469327R1

SHIELD

dirt

2шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16-18 x 1 znd hex-hd mach

4шт.

134238R1

WASHER

11/32 x 1 x 16 ga znd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

3

100514C1

BRACKET, wing support RH

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

3/8-16 x 1-1/2 znd hex-hd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

100515C1

BRACKET, wing support LH

1шт.

5

469326R1

RUNNER

WING, RH runner

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

Выбрано товаров: 18
