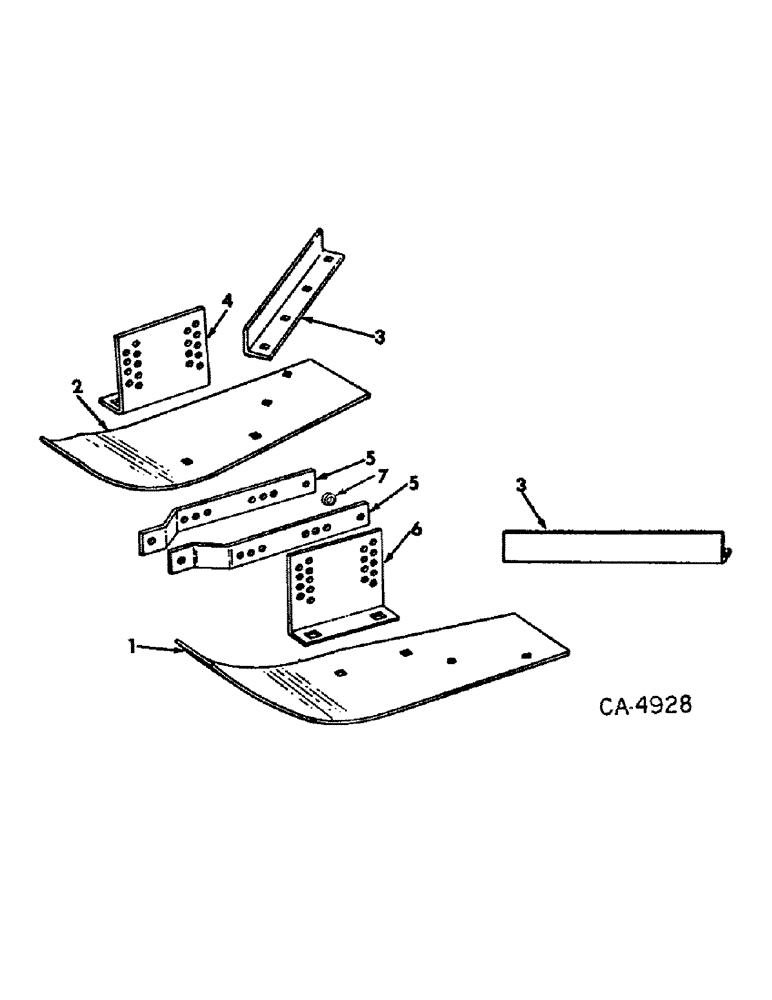

Запчасти Case IH 500 (C-52) - GAUGE SHOE ATTACHMENT, 15 IN. WIDE FOR 12 ROW WIDE WITH 36 TO 40 IN. SPACING

1

474653R2

SHOE

LH

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16-14 x 1 C-Z no. 3 head

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.

2

474654R2

SHOE

RH

1шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16-14 x 1 C-Z no. 3 head

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

2шт.

3

PO25155

ANGLE

SWEEP, clod

2шт.

19040R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1", Gr 2

BOLT, 7/16-14 x 1 C-Z no. 3 head

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

4шт.

4

474656R1

SUPPORT

RH

1шт.

5

474657R1

STRAP, attaching

2шт.

20317R1

BOLT, 7/16-14 x 1-1/8 znd hex-hd mach

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 znd hex-hd mach

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 znd hex.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20869R1

WASHER

.531 x 7/8 x 16 ga znd

2шт.

6

474655R1

SUPPORT

LH

1шт.

7

548363R1

BUSHING

spacer

1шт.
