Запчасти Case IH 500 (C-04) - MAIN FRAME TOOL BAR AND CONNECTIONS

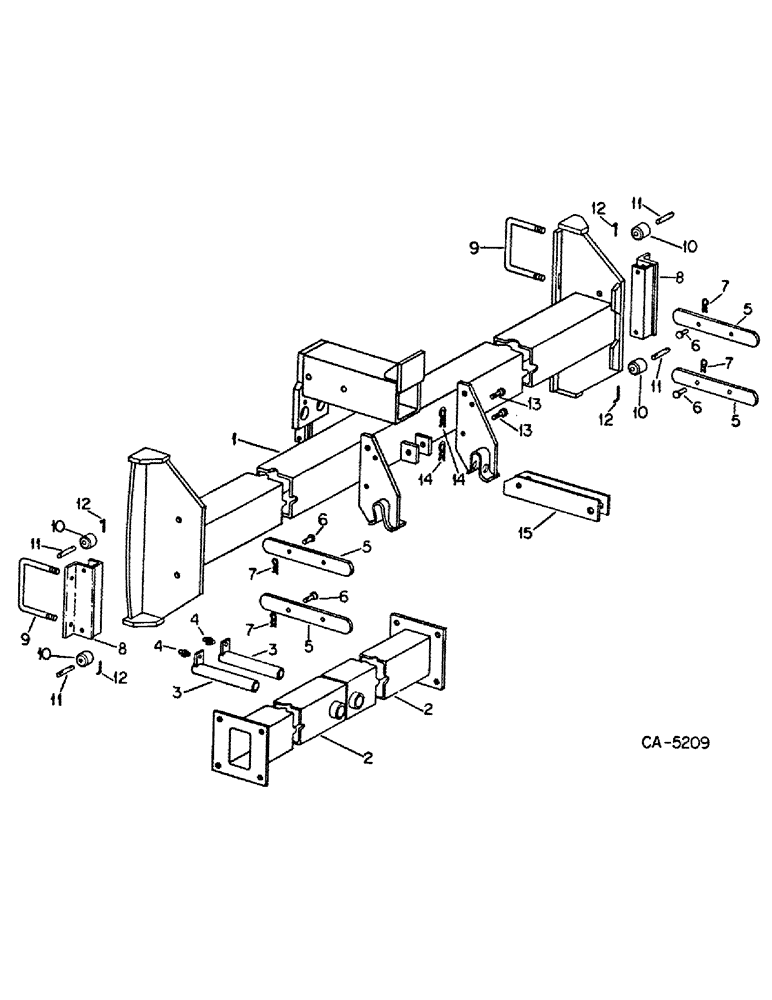

Схема запчастей Case IH 500 - (C-04) - MAIN FRAME TOOL BAR AND CONNECTIONS
10
11
14
10
4
10
12
5
4
1
8
7
13
8
3
6
12
7
7
9
6
11
2
5
6
6
12
15
9
10
2
7
5
12
14
13
5
3
11
11

Артикул

Название

Примечание

Количество

1

100153C1

TOOL BAR ASSY, front, 12 row narrow

1шт.

1

62034C3

TOOL BAR ASSY, front, 12 row wide and 16 row

1шт.

2

100155C1

TOOL BAR ASSY, rear, 12 row narrow

2шт.

2

62044C1

TOOL BAR ASSY, rear, 12 row wide and 16 row

2шт.

3

62047C1

PIN ASSY, pivot

2шт.

NLS

NO LONGER SERVICED

SCREW, 5/8-11 x 1-3/4 znd hex-hd cap

1шт.

22811R1

WASHER

2.031 x 2.750 x 16 ga znd

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

2шт.

5

62050C1

BAR, lockout

4шт.

6

21808R1

HEADED PIN,5/8" x 1 1/2"

PIN, 5/8 x 1-1/2 znd std-hd

4шт.

7

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

8

62051C1

ANGLE ASSY, roller

2шт.

9

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 7/8-9 roller angle

2шт.

23831R1

NUT,7/8"-9, G8

7/8-9 znd type 8 hex.

4шт.

10

62172C1

ROLLER, tool bar

4шт.

11

100078C1

PIN, roller

4шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

4шт.

21758R1

WASHER

.781 x 1.250 x .067

1шт.

12

471323R1

LINCH PIN

PIN, pivot lock

4шт.

13

57657C1

BOLT, pump storage

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 jam type 5

2шт.

14

520175R1

CLIP

PIN, 3/16 quick attachable cot.

2шт.

15

113142C1

ARM ASSY, safety link

1шт.

24512R1

HEADED PIN,3/4" x 4 3/4"

std-hd 3/4" x 4 3/4"

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

Выбрано товаров: 27
