Запчасти Case IH 500 (C-49) - REAR ASSIST WHEELS ATTACHMENT

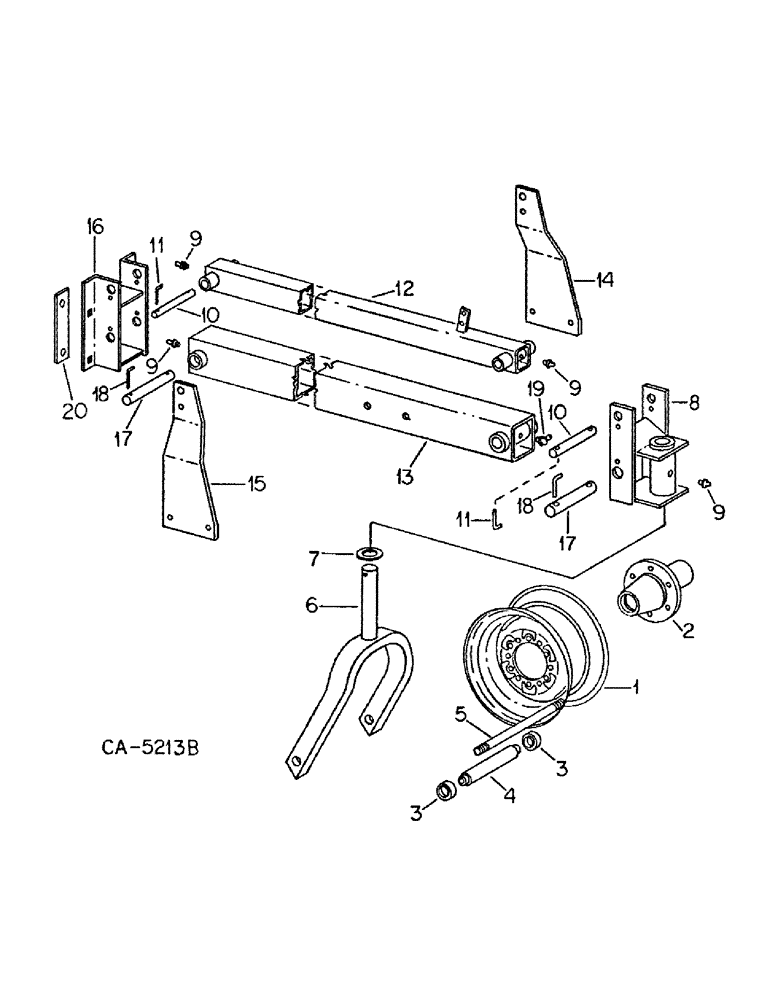

Схема запчастей Case IH 500 - (C-49) - REAR ASSIST WHEELS ATTACHMENT
16
13
18
18
8
9
10
17
12
1
3
3
7
14
6
11
5
10
9
17
2
4
9
20
15
11
9
19

Артикул

Название

Примечание

Количество

1

481344R91

WHEEL

14 in., for 9.50L-14 tire

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

12шт.

387841R91

VALVE

TR413 tire

2шт.

2

541757R1

HUB

wheel

2шт.

3

963078R91

BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"

ball

4шт.

4

541758R1

TUBE

SPACER, axle rod

2шт.

5

541759R2

ROD

axle

2шт.

591715R1

WASHER

1-1/32 x 1-1/2 x 16 ga C-Z

4шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

6

541760R2

ARM ASSY, wheel

2шт.

193244

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

7

462997R1

WASHER

wear

4шт.

8

113154C1

PIVOT ASSY, assist wheel

2шт.

9

66584D

FITTING

3/16 STR drive type lub

6шт.

10

100307C1

SHAFT, parallel link tube

4шт.

119199

PIN, 3/8 x 1-1/2 cot.

4шт.

11

471323R1

LINCH PIN

PIN, parallel link tube shaft L

4шт.

12

113152C1

TUBE ASSY, parallel link

2шт.

13

100056C1

TUBE ASSY, assist wheel

2шт.

14

113150C1

PLATE, LH

2шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 znd hex-hd cap

4шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

6шт.

280954

NUT,3/4"-10, G5

6шт.

15

113151C1

PLATE, RH

2шт.

16

100051C1

BRACKET ASSY, pivot

2шт.

22832R1

BOLT,Hex, 7/8" - 9 x 8 1/2", Gr 5

7/8 x 8-1/2 type 5

8шт.

131047

WASHER,7/8"

7/8"

8шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

17

100054C1

PIN

assist wheel tube

4шт.

12431R1

COTTER PIN,1/2" x 2"

PIN, 1/2 x 2 znd cot.

4шт.

23047R1

WASHER

1.531 x 2.500 x .054

8шт.

18

491601R2

PIN

pivot lock

4шт.

19

109366

FITTING, 3/16 drive type 30 deg angle lub

2шт.

20

128976C1

BAR, reinforcing

1шт.

Выбрано товаров: 36
