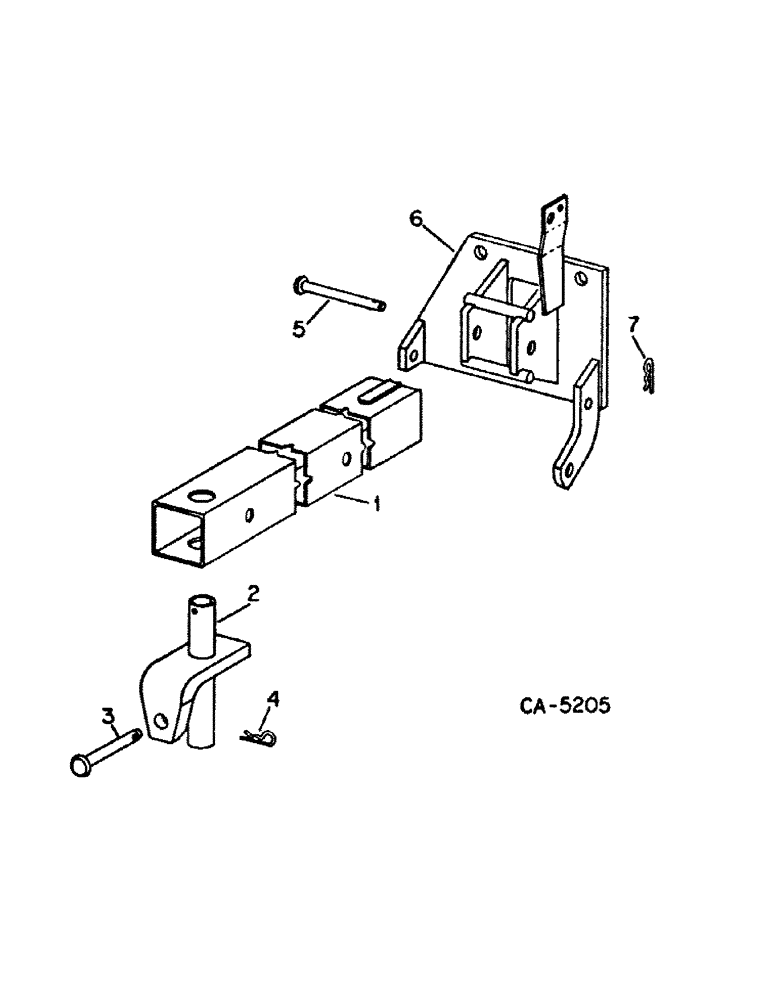

Запчасти Case IH 500 (C-48) - TRANSPORT WHEEL ATTACHMENT, TRANSPORT TONGUE AND CONNECTIONS

1

62137C1

TONGUE ASSY, transport

1шт.

2

62140C1

BRACKET ASSY, pivot

1шт.

103425

PIN,1/4" x 2 3/4"

Split (Cotter), 1/4" x 2 3/4"

1шт.

3

62142C1

PIN, 3/4 x 5-1/4 pivot bracket pointed

1шт.

4

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot.

1шт.

5

493990R2

PIN

3/4 x 6.3 transport tongue pointed

1шт.

6

62104C1

BRACKET ASSY, marker LH and transport

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

7

473865R91

LINCH PIN

PIN ASSY, quick attachable cot.

1шт.
